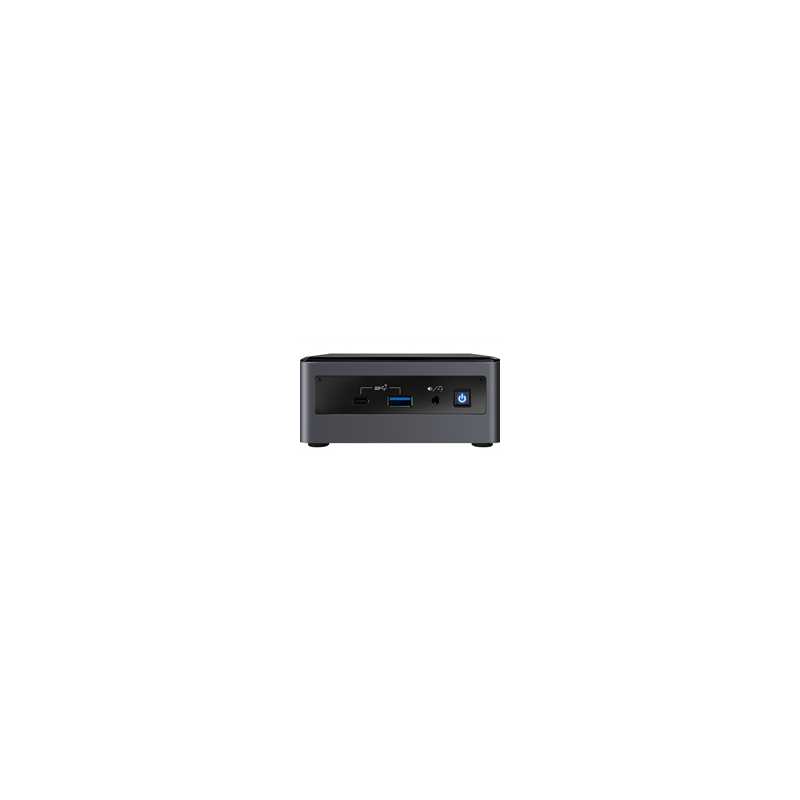

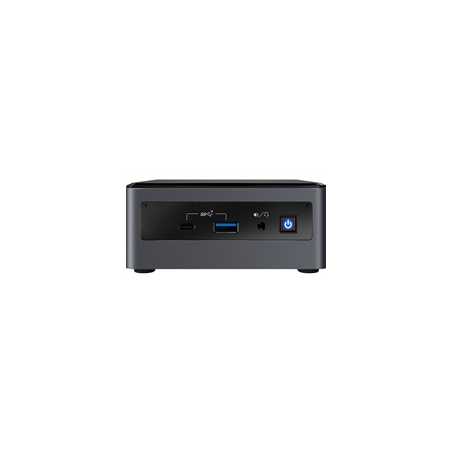

Intel NUC 10 BXNUC10I3FNHN2 UCFF Barebone PC, Black, BGA 1528, Intel Core i3-10110U 10th Gen

Intel Optane Memory Supported
Intel Optane memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness.
When combined with the Intel Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage.
Intel Optane memory requires specific hardware and software configuration.

Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding new support for I/O-device virtualization.
Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel HD Audio Technology
Intel High Definition Audio (Intel HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats.
In addition, Intel HD Audio has the technology needed to support the latest and greatest audio content.

Intel Rapid Storage Technology
Intel Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption.
When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel Matrix Storage Technology.

Intel Platform Trust Technology (Intel PTT)
Intel Platform Trust Technology (Intel PTT) is a platform functionality for credential storage and key management used by Windows 8 and Windows 10.
Intel PTT supports BitLocker for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

SPECIFICATIONS

Design

Status: Launched
ARK ID:214604
Product type: Mini PC barebone
On/off switch: Yes
Product colour: Black
Chassis type: UCFF

Expansion slots
PCI Express configurations: 1x4,2x2,1x2+2x1,4x1
Number of M.2 (M) slots: 1
PCI Express slots version: 3.0

Graphics
Number of displays supported :3
On-board graphics adapter model: Intel UHD Graphics
Graphics adapter family: Intel
On-board graphics adapter: No

Memory
ECC: No
Maximum internal memory: 64 GB
Memory bandwidth (max): 42.6 GB/s
Memory channels: Dual-channel
Memory voltage: 1.2 V
Removable memory card slot: SDXC with UHS-II support
Supported memory clock speeds: 2666 MHz
Supported memory types: DDR4-SDRAM
Number of DIMM slots: 2
Number of memory slots:2
Memory slots type: SO-DIMM

Network
Bluetooth: Yes
LAN controller: Intel I219-V
WLAN controller model: Intel Wi-Fi 6 AX201
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes

Networking
Bluetooth: Yes
LAN controller: Intel I219-V
WLAN controller model: Intel Wi-Fi 6 AX201
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes

Other features
Launch date: Q2'21
DC input voltage: 19 V
HDD size: 2.5"
Number of SATA connectors: 2
Processor ARK ID: 196451
Additional headers: CEC, 2x USB2.0, FRONT_PANEL, RGB

Packaging content
Processor included: Intel Core i3-10110U Processor (4M Cache, up to 4.10 GHz)
Power cord included: Yes

Performance
Supported RAID configuration: 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Export Control Classification Number (ECCN): 5A992C
Harmonized System (HS) code: 8471500150
Commodity Classification Automated Tracking System (CCATS): G157815L2
Operating system installed: No
Compatible operating systems: Windows 11 (64-bit), Windows 10 (64-bit)
Windows operating systems supported: Windows 10 x64
Consumer infrared Rx sensor: Yes
Audio output channels: 7.1 channels
Trusted Platform Module (TPM): No
Processor socket: BGA 1528
Motherboard form factor: UCFF

Ports & interfaces
Graphics output: HDMI 2.0b; USB-C (DP1.2)
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
M.2 card slot (storage): 2242/2280
Number of SATA III connectors: 2
Thunderbolt 3 ports quantity: 1
USB ports quantity: 7
USB version: 2.0/3.2 Gen 2 (3.1 Gen 2)
Combo headphone/mic port: Yes
DisplayPort version: 1.2
HDMI version: 2.0b
HDMI ports quantity: 1
Internal USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Power
AC adapter output voltage: 19 V
Power supply type: External AC adapter

Processor
CPU configuration (max): 1
Processor codename: Comet Lake
Memory bandwidth supported by processor (max): 42.6 GB/s
Thermal Design Power (TDP): 25 W
Processor cache: 4 MB
Processor boost frequency: 4.1 GHz
Processor lithography: 14 nm
Processor threads: 4
Processor cores: 2
Processor frequency: 2.1 GHz
Processor model: i3-10110U
Processor family: 10th gen Intel Core i3
Processor manufacturer: Intel
Built-in processor: Yes

Processor special features
Embedded options available: No
Enhanced Intel SpeedStep Technology: Yes
Execute Disable Bit: Yes
Idle States: Yes
Intel 64: Yes
Intel Clear Video Technology: Yes
Intel Flex Memory Access: Yes
Intel Rapid Storage Technology: Yes
Intel Stable Image Platform Program (SIPP): No
Intel Trusted Execution Technology: No
Intel TSX-NI: No
Intel Virtualization Technology (VT-x):Y es
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel AES New Instructions (Intel AES-NI): Yes
Intel Clear Video HD Technology (Intel CVT HD): Yes
Intel High Definition Audio (Intel HD Audio): No
Intel Hyper Threading Technology (Intel HT Technology): Yes
Intel Identity Protection Technology (Intel IPT) : Yes
Intel My WiFi Technology (Intel MWT): Yes
Intel Optane Memory Ready: Yes
Intel OS Guard: Yes
Intel Platform Trust Technology (Intel PTT): Yes
Intel Quick Sync Video Technology: Yes
Intel Secure Key: Yes
Intel Turbo Boost Technology: 2.0
Thermal Monitoring Technologies: Yes
Intel vPro Platform Eligibility: No

Storage
Compatible memory cards: SDXC
Card reader integrated: Yes
RAID levels: 0,1
Number of storage drives supported: 2
SSD form factor: M.2
Storage drive sizes supported: M.2,2.5
Supported storage drive types: HDD & SSD

Weight & dimensions
Height: 51 mm
Depth: 112 mm
Width: 117 mm

1 Year Warranty
