Kingston 8GB, DDR3L, 1600MHz (PC3L-12800), CL11, SODIMM Memory *Low Voltage 1.35V*
£40.38
VAT included
Delivered within 1-2 days.
KVR16LS11/8

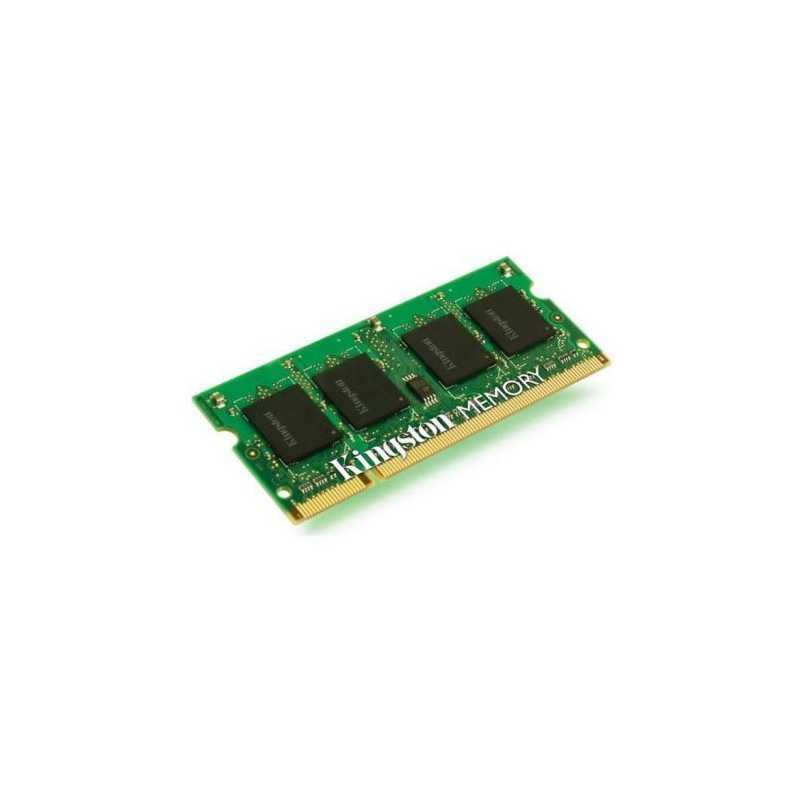

8GB 2Rx8 1G x 64-Bit PC3L-12800 CL11 204-Pin SODIMM
ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers.
Features
• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component
KVR16LS11/8
8GB 2Rx8 1G x 64-Bit PC3L-12800 CL11 204-Pin SODIMM
ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers.
Features
• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component
KVR16LS11/8
30 Items
Data sheet
- Warranty
- Lifetime
- Form Factor
- SODIMM
- DDR Type
- SODIMM DDR3
- Package Type
- Blister Pack
- Package Weight
- 0.0690 kg
- Series
- Kingston ValueRAM
- Size
- 1 x 8GB
- Speed
- 1600 MHz
- Compliance
- PC3L-12800
- Pins
- 204-pin
- CAS Latency
- CL11
- Data Integrity Check
- Non-ECC
- Low Voltage
- Yes
- Voltage
- 1.35V
- Additional Information
- Unbuffered
- Capacity
- 8GB
- Individual Module Size
- 8GB
- RGB
- No
Specific References
- EAN13
- 740617219791
Delivery date
| Carrier | Information | Delivery |
|---|---|---|
|
Next Day (Orders Before 4PM) |
Comments (0)
No customer reviews for the moment.
KVR16LS11/8
8GB 2Rx8 1G x 64-Bit PC3L-12800 CL11 204-Pin SODIMM
ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers.
Features
• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component
