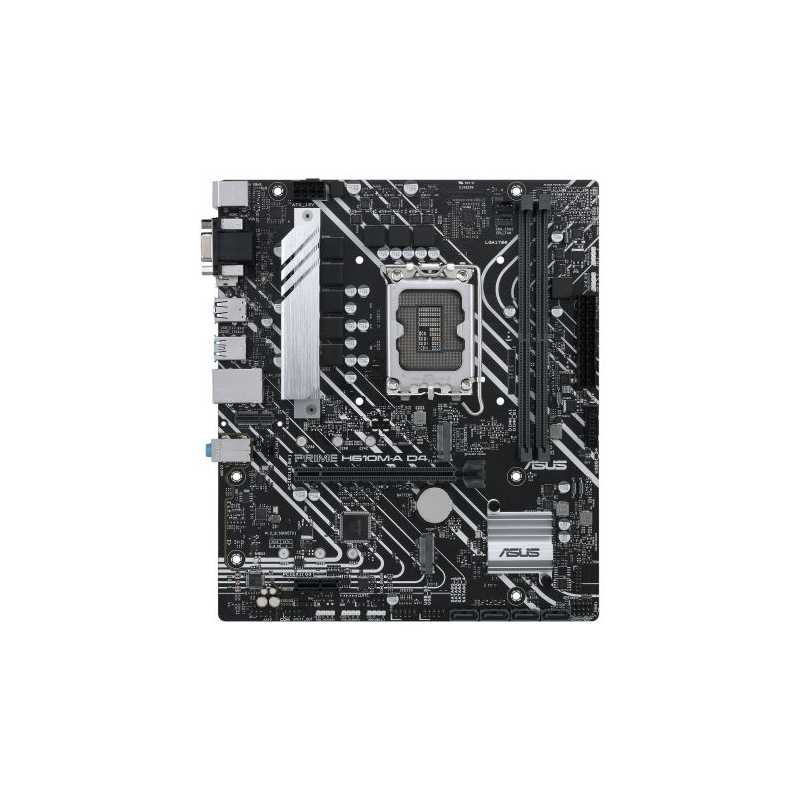

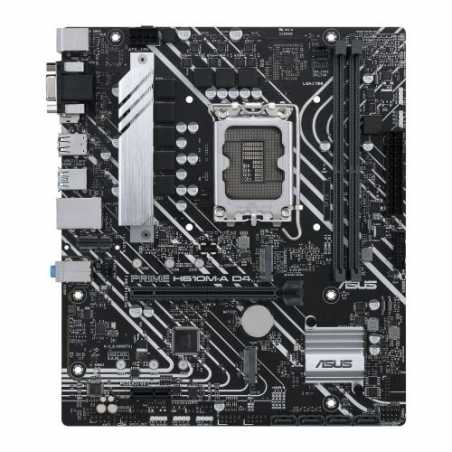

Asus PRIME H610M-A D4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

Data sheet

.

1 x COM Port1 x S/PDIF Out1 x Speaker1 x SPI TPM (14-1pin)1 x 10-1 pin System Panel

Wireless

-

RAM Speeds

Up to 3200 MHz

Accessories

2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 SSD screw package1 x Support DVD1 x User guide

USB Ports Supported

2 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 Type-A (at mid-board)7 x USB 2.0 (4 at back, 3 at mid-board)

Storage

4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A4 x USB 2.01 x DisplayPort1 x D-Sub1 x HDMI1 x V-M.2 slot (Key E)1 x Realtek 1Gb Ethernet3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen22 x AURA RGB1 x Clear CMOS1 x Front Panel Audio

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x VGA1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

RGB Lighting

Yes (RGB)

PCI/PCI Express

1 x PCIe 4.0 x16 slot1 x PCIe 3.0 x1 slot
