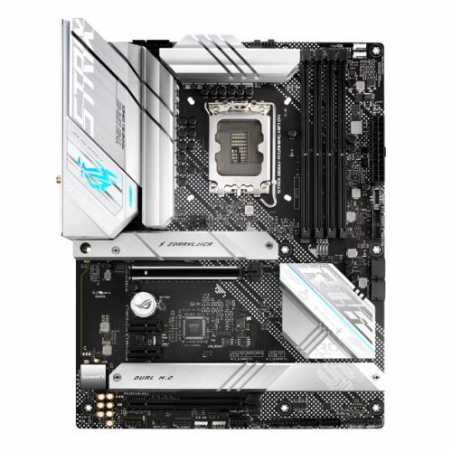

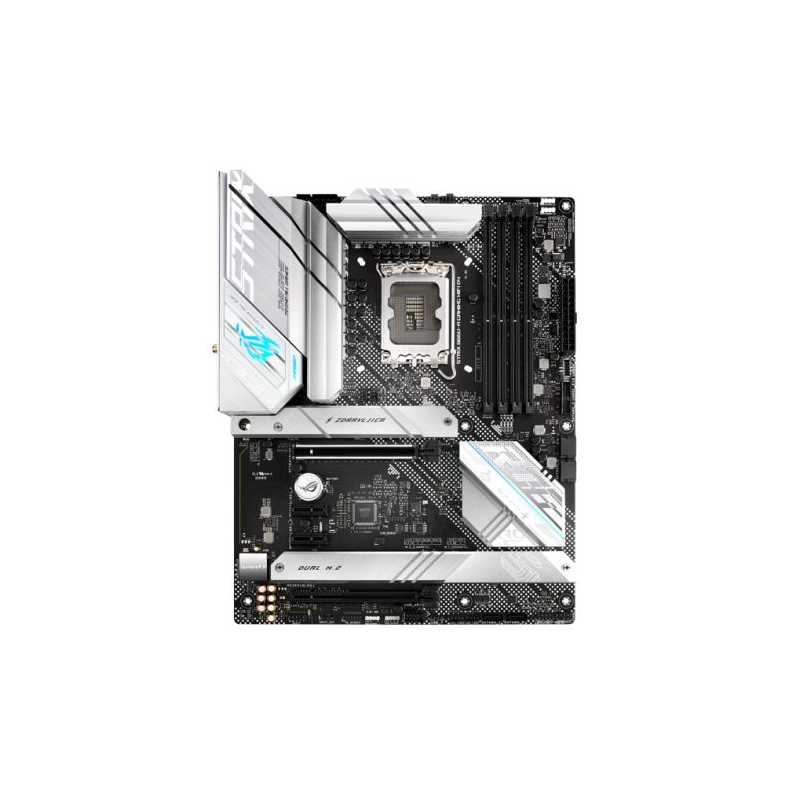

Asus ROG STRIX B660-A GAMING WIFI D4, Intel B660, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 3x M.2
£336.35
VAT included
Intel® B660 LGA 1700 ATX motherboard with PCIe® 5.0, 12+1 power stages, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting
- Intel® LGA 1700 Socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® processors
- Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
- High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
- Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard with integrated MemTest86
90MB18S0-M0EAY0
Data sheet
- .
- 3 x Addressable Gen21 x AURA RGB1 x Clear CMOS1 x Front Panel Audio1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel1 x Thunderbolt™ header
- Wireless
- Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency bandBluetooth v5.2
- RAM Speeds
- up to 5333(OC)
- Accessories
- 4 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Rubber Package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you card1 x Support DVD1 x User guide
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)1 x USB 3.2 Gen1 Type-C (at back)4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)7 x USB 2.0 (4 at back, 3 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel B660
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C1 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 (2 Type-A + 1 Type-C)4 x USB 2.01 x DisplayPort1 x HDMI1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet5 x Audio jacks1 x BIOS FlashBack button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V3 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen11 x USB 2.0 10-1pin + 1 USB 2.0 4pin header
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 3.0 x162 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
