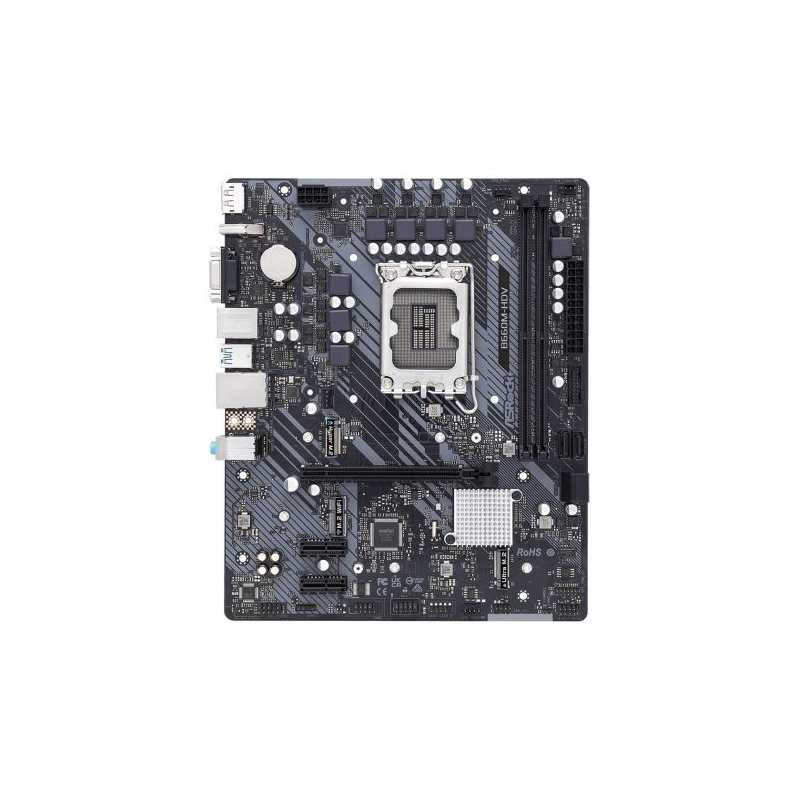

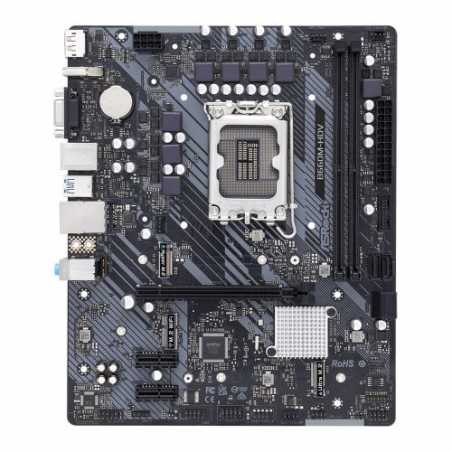

Asrock B660M-HDV, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

£88.69
VAT included
Stock status: Very low
Last 18 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%

  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 6 Phase Power Design
  • Supports DDR4 5066MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
  • 1 M.2 Key-E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3
  • 1 Hyper M.2 (PCIe Gen4 x4)
  • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • 5 USB 2.0 (2 Rear, 3 Front)
  • Intel® Gigabit LAN






Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.





High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.





Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.



ASROCK
B660M-HDV
18 Items

Data sheet

Wireless
-
RAM Speeds
up to 5066+(OC)
Accessories
Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets
USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)5 x USB 2.0 (2 at back, 3 at mid-board)
Storage
4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - SATA & PCIe
RAID
Supports RAID 0,1, 5,10
Warranty
2 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel B660
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
Back Panel I/O Ports
2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI1 x DisplayPort 1.43 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C2 x USB 2.01 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x COM Port1 x SPI TPM 1 x Chassis Intrusion and Speaker1 x CPU Fan1 x CPU/Water Pump Fan2 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen1
CPU Support
Click here for CPU support
Graphics Ports
1 x VGA1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 4.0 x162 x PCIe 3.0 x1

Specific References

EAN13
4710483936500
