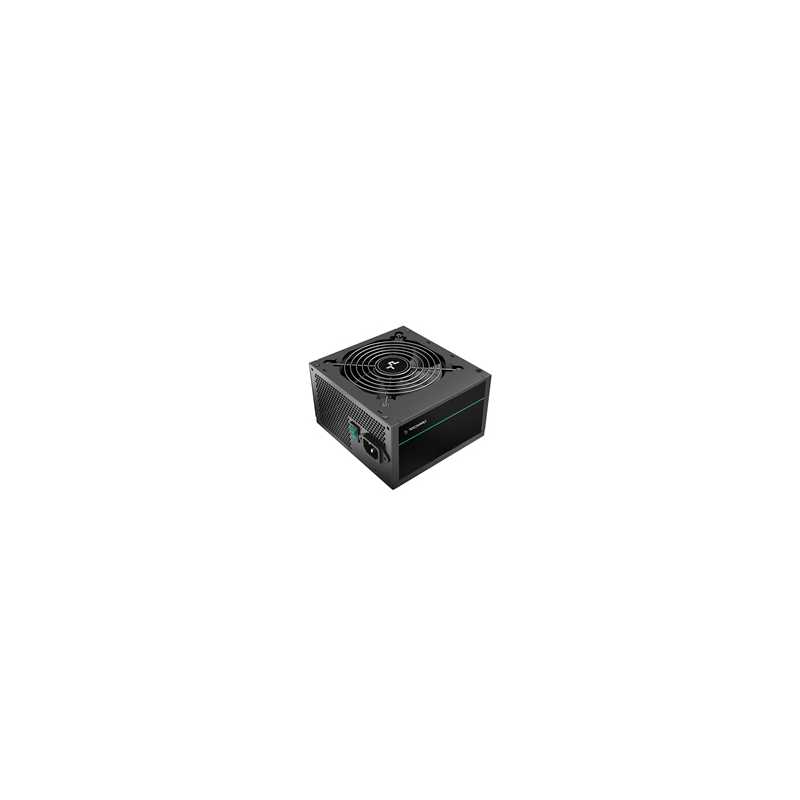

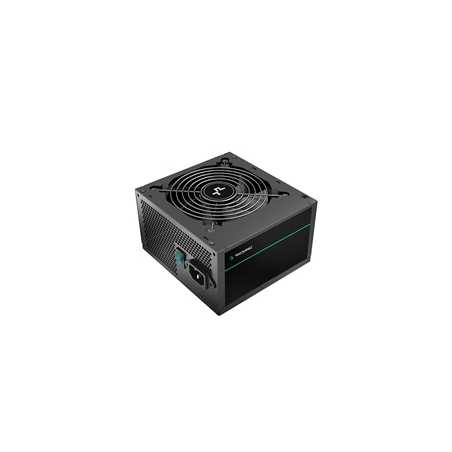

DeepCool PM650D 650W Power Supply Unit, 120mm Silent High Performance Fan, 80 PLUS Gold, Non Modular, UK Plug, Flat Black Cables

PM650D
Reliable 80 PLUS Gold Efficiency
DeepCool PM650D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 PLUS GOLD CERTIFIED
Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

QUALITY TOPOLOGY
For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

BUILT TO SPEC
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

80 PLUS Gold
80 PLUS Gold certified - Up to 87~90% efficient (20~100% Loading)

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

EFFICIENCY THROUGHOUT
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

PEACE OF MIND
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP.

Type
ATX 12V V2.4

80 PLUS Certifications
GOLD

Fan Size
120mm

Fan Bearing
Hypro Bearing

Topology
Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors
Japanese Bulk Capacitor

Power Good Signal
100-150ms

Hold Up Time
=16ms (75% Load)

Efficiency
=90% Under Typical Load (50% Loading)

Protection
OPP/OVP/SCP/OTP/OCP

Operation Temperature
0-40°C

Regulatory
TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BISErp

Regulation
ErP(2014)

MTBF
100,000 Hours

Connections
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
2 x SATA (x3)
1 x 4-Pin Peripheral (x3)

Product Dimension ( W x L x H )
150 x 140 x 86mm
