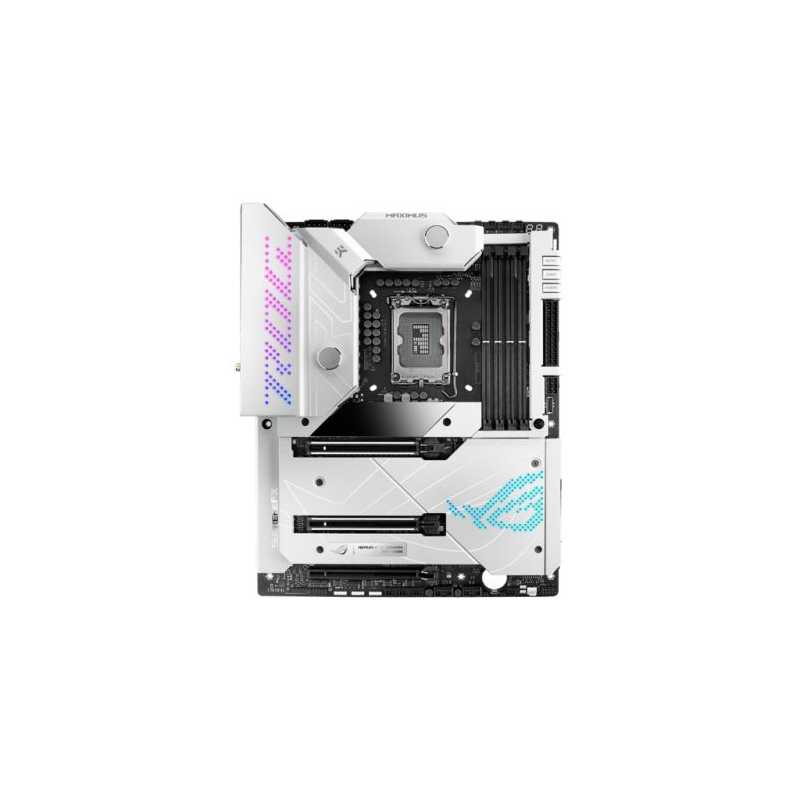

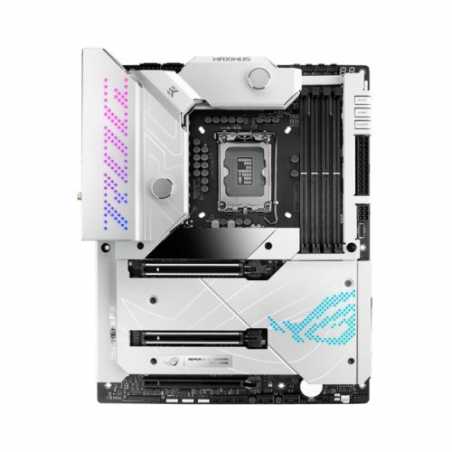

Asus ROG MAXIMUS Z690 FORMULA, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 10G LAN, PCIe5, Hyper M.2 Card, RGB, 5
search
  • Asus ROG MAXIMUS Z690 FORMULA, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 10G LAN, PCIe5, Hyper M.2 Card, RGB, 5
  • Asus ROG MAXIMUS Z690 FORMULA, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 10G LAN, PCIe5, Hyper M.2 Card, RGB, 5

Asus ROG MAXIMUS Z690 FORMULA, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 10G LAN, PCIe5, Hyper M.2 Card, RGB, 5

£819.72
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


Intel Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector, Dual Thunderbolt 4, PCIe 5.0, Onboard WiFi 6E, 10 Gb Ethernet and Aura Sync RGB lighting



  • Socket LGA 1700: for 12th Gen Intel Core, Pentium Gold and Celeron processors
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration
  • Robust Power Solution: 20+1 teamed power stages rated for 105A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
  • Optimised Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone
  • High-Performance Networking: Onboard WiFi 6E, Marvell AQtion 10 Gb Ethernet, and ASUS LANGaurd
  • Fastest Connectivity: PCIe 5.0, dual Gen 4 M.2 onboard,ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector and dual Thunderbolt 4 USB Type-C ports
  • Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC for pinpoint positioning and dynamics
  • Unmatched Personalisation: 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
  • DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, Q-Latch, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, SafeSlot, ROG Hyper M.2 card, and ROG graphics card holder
  • Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86







ROG Maximus Z690 Formula

DIVERSITY TO THE MAXIMUS. That's what the latest Formula brings to the acclaimed ROG Maximus series. Its Moonlight White Armor and customisable ARGB lighting elements ride alongside a hybrid VRM block designed in collaboration with EK, giving you ample freedom to express your preferred build style. And underneath, circuit pathways illuminated with PCIe Gen 5.0 and limit-breaking DDR5 support are poised to elevate performance well into the future, driving the Maximus Z690 Formula's appeal far beyond aesthetics.






Intellegent Motherboard

Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.







Performance

The ROG Maximus Z690 Formula CPU VRM is comprised of 105 amp power stages that are strategically teamed to quickly cancel transients. Alongside, the ROG take on DDR5 support frees memory kits to achieve their full potential.







Cooling

An ambition to maximise performance calls for an appropriately powerful platform. Enter the CrossChill EK III VRM block, empowering enthusiasts to break the limits of conventional voltage regulation with a hybrid cooling system that sails past the core power requirements of 12th Gen Intel Core processors while maintaining rock-steady thermals.







Connectivity

The latest connectivity solutions-WiFi 6E, PCIe 5.0 and two Thunderbolt 4 USB Type-C ports-empower supersmooth networking and blisteringly fast file transfers. And for enthusiasts looking for high-fidelity audio, the SupremeFX ALC4082 codec takes gaming immersion to a whole new level while also saving a PCIe slot.






Optimisation

ROG Maximus Z690 Formula is packed with intuitive and flexible tools that give builders next-level control of system performance.







Personalisation

ASUS-exclusive Aura Sync RGB customization takes the Formula's Moonlight White colourway to a new level, and a two-inch OLED LiveDash can take the aesthetic further with a display featuring live system information or user-customisable graphics.






Click here for full details



ASUS
90MB18G0-M0EAY0

Data sheet

.
1 x USB 3.2 Gen 2x2 connector Type-C2 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen21 x AURA RGB1 x FlexKey button 1 x 12-1 pin Front Panel Audio1 x ReTry button1 x SPI TPM (14-1pin)1 x Start button1 x 10-1 pin System Panel1 x Thermal Sensor
Wireless
Intel Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.2
RAM Speeds
Up to 6400+(OC)
Accessories
1 x ARGB RGB extension cable1 x RGB extension cable2 x ROG weave SATA 6G cables4 x SATA 6Gb/s cables 1 x ROG Hyper M.2 Card2 x M.2 screw package for ROG Hyper M.2 Card1 x ASUS Wi-Fi moving antennas1 x M.2 Rubber Package(s)1 x Q-connector1 x M.2 Q-Latch pa
USB Ports Supported
2 x Thunderbolt 4 USB Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)6 x USB 3.2 Gen2 Type-A (at back)4 x USB 3.2 Gen1 (at mid-board)5 x USB 2.0 (3 at back, 2 at mid-board)1 x USB 3.2 Gen2x2 Type-C front panel connector
Storage
6 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIeHyper M.2_1 via Hyper M.2 card (2242/2260/2280/22110) - PCIeHyper M.2_2 via Hyper M.2 card (2242/2260/2280/22110) - PCIe
RAID
Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z690
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
10GB LAN
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Back Panel I/O Ports
2 x Thunderbolt 4 USB Type-C7 x USB 3.2 Gen2 (6 Type-A, 1 Type-C)3 x USB 2.01 x HDMI1 x Wi-Fi Module1 x Marvell AQtion 10Gb Ethernet5 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan 1 x W_PUMP+1 x 2-pin Water In1 x 2-pin Water Out1 x 3-pin Water Flow1 x 24-pin Main2 x 8-pin +12V1 x 6-pin PCIe Graphics Card3 x M.2 (Key M)
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
4.5700 kg
Graphics Ports
1 x HDMI2 x Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
10GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
2 x PCIe 5.0 x161 x PCIe 4.0 x16
Wi-Fi
Yes (Wi-Fi)
