- Out of stock
HyperX Predator, 32GB Kit (4 x 8GB), DDR4, 3600MHz (PC4-28800), CL17, XMP 2.0, DIMM Memory
£359.81
VAT included
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.25V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.661” (42.20mm)

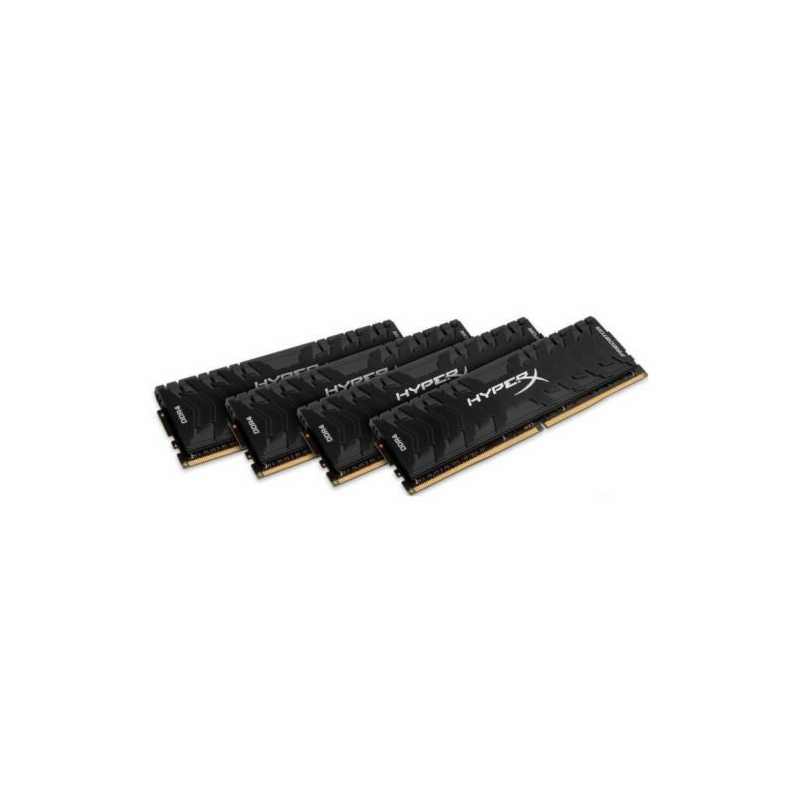

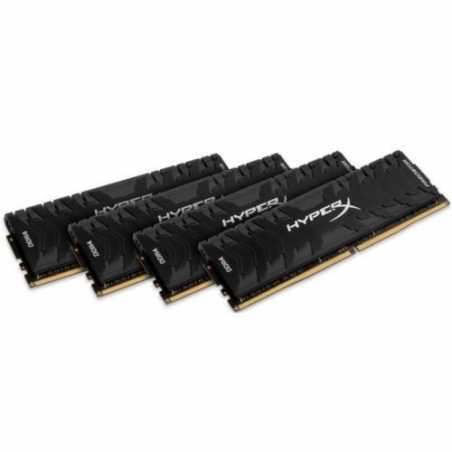

HyperX HX436C17PB3K4/32 is a kit of four 1G x 64-bit (8GB) DDR4-3600 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 17-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Description
Specification
- Series: Kingston HyperX Predator
- DDR Type: DDR4
- Size: 4 x 8GB
- Speed: 3600 MHz
- Compliance: PC4-28800
- Pins: 288-pin
- CAS Latency: CL17
- Data Integrity Check: Non-ECC
- Low Voltage: No
- Voltage: 1.35V
- Timings: 17-18-18
- Heatsink: Yes
- Additional Information: See Overview
- Package Type: Retail
- Package Weight: 0.1800 kg
- Warranty: Lifetime
HX436C17PB3K4/32
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR4
- Package Type
- Retail
- Package Weight
- 0.1800 kg
- Heatsink
- Yes
- Series
- Kingston HyperX Predator
- Size
- 4 x 8GB
- Speed
- 3600 MHz
- Compliance
- PC4-28800
- Pins
- 288-pin
- CAS Latency
- CL17
- Data Integrity Check
- Non-ECC
- Low Voltage
- No
- Voltage
- 1.35V
- Additional Information
- See Overview
- Timings
- 17-18-18
Comments (0)
No customer reviews for the moment.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.25V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.661” (42.20mm)
HyperX HX436C17PB3K4/32 is a kit of four 1G x 64-bit (8GB) DDR4-3600 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 17-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
