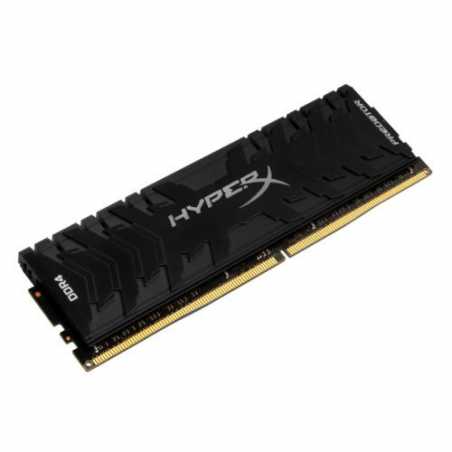

HyperX Predator 8GB, DDR4, 2400MHz (PC4-19200), CL12, XMP 2.0, DIMM Memory
£74.98
VAT included
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.25V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.661” (42.20mm)
HyperX HX424C12PB3/8 is a 1G x 64-bit (8GB) DDR4-2400 CL12 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2400 at a low latency timing of 12-14-14 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Description
Specification
- Series: Kingston HyperX Fury
- DDR Type: DDR4
- Size: 8GB
- Speed: 2400 MHz
- Compliance: PC4-19200
- Pins: 288-pin
- CAS Latency: CL12
- Data Integrity Check: Non-ECC
- Low Voltage: No
- Voltage: 1.35V
- Timings: 12-14-14
- Heatsink: Yes
- Additional Information: See Overview
- Package Type: Retail
- Package Weight: 0.1800 kg
- Warranty: Lifetime
HX424C12PB3/8
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR4
- Package Type
- Retail
- Package Weight
- 0.1800 kg
- Heatsink
- Yes
- Series
- Kingston HyperX Fury
- Size
- 8GB
- Speed
- 2400 MHz
- Compliance
- PC4-19200
- Pins
- 288-pin
- CAS Latency
- CL12
- Data Integrity Check
- Non-ECC
- Low Voltage
- No
- Voltage
- 1.35V
- Additional Information
- See Overview
- Timings
- 12-14-14
