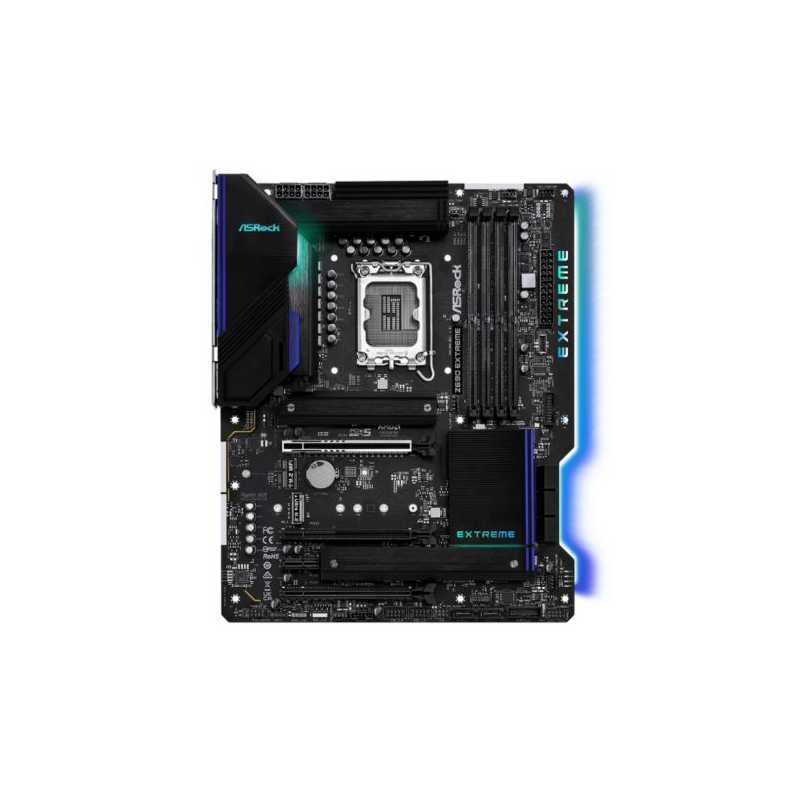

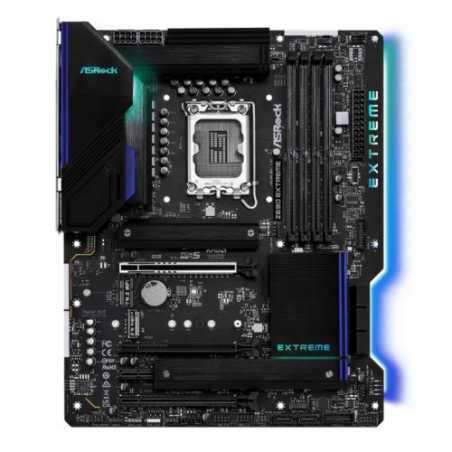

Asrock Z690 EXTREME, Intel Z690, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, RGB, 3x M.2
Z690 Extreme
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 13 Phase SPS Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 8 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 1 USB 3.2 Gen2x2 Front Type-C
- 2 USB 3.2 Gen2 (Rear Type A+C)
- 8 USB 3.2 Gen1 (4 Rear, 4 Front)
- Dragon 2.5G LAN, Intel® Gigabit LAN
- ASRock Graphics Card Holder
Optimised VRM Design
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimised for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
13 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
High Speed M.2 Solution
PCIe Gen4 x4 for SSD
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Anti-Drop Screw
Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- Install Auto Driver Installer
- Update drivers needed
- Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Flexible Integrated IO Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy colour schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
Data sheet
- .
- 2 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen2x2 Header
- RAM Speeds
- Up to 5000+(OC)
- Accessories
- Quick Installation Guide, Support CD4 x SATA Data Cables1 x ASRock WiFi 2.4/5/6 GHz Antenna3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets1 x Graphics Card Holder
- USB Ports Supported
- 1 x USB 3.2 Gen2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen2x2 Type-C front panel connector
- Storage
- 8 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2230/2242/2260/2280) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z690
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD CrossFire
- LAN
- 2.5GB LAN & GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna1 x PS/2 Mouse/Keyboard 1 x HDMI1 x DisplayPort 1.41 x Optical SPDIF Out1 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C4 x USB 3.2 Gen12 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Power LED and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan5 x Chassis/Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Audio1 x Thunderbolt AIC2 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 3 x PCIe 5.0 x16 1 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
Specific References
- EAN13
- 4710483936067
