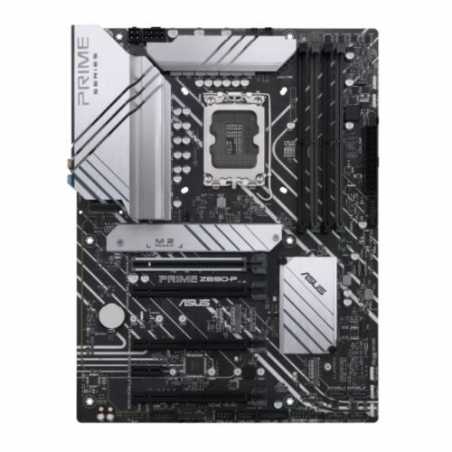

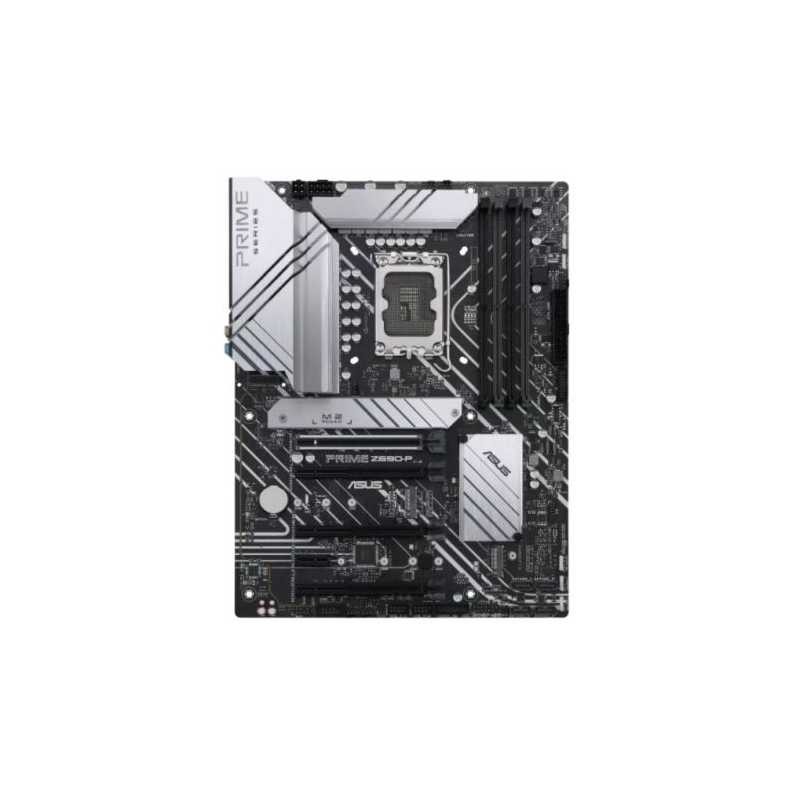

Asus PRIME Z690-P, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 3x M.2
£263.70
VAT included
Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI, DisplayPort, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting
- Intel LGA 1700 socket: Ready for 12th gen Intel processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimisations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: DDR5, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Cooling
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customisation
Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customise your system to create a uniquely personal look.
90MB19Q0-M0EAY0
Data sheet
- .
- 3 x Addressable Gen22 x AURA RGB1 x Clear CMOS1 x COM Port1 x Front Audio1 x SPI TPM (14-1pin)1 x 20-5pin System Panel1 x Thunderbolt
- RAM Speeds
- Up to 6000(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 Rubber Package2 x M.2 SSD screw packages1 x Support DVD1 x User guide
- USB Ports Supported
- 1 x USB 3.2 Gen 2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen1 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
- RAID
- Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z690
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C1 x USB 3.2 Gen2 Type-A2 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x HDMI port1 x V-M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out1 x PS/2 Keyboard/Mouse combo
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V3 x M.2 slots (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen12 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x162 x PCIe 3.0 x16 (support x4 mode)1 x PCIe 3.0 x1
