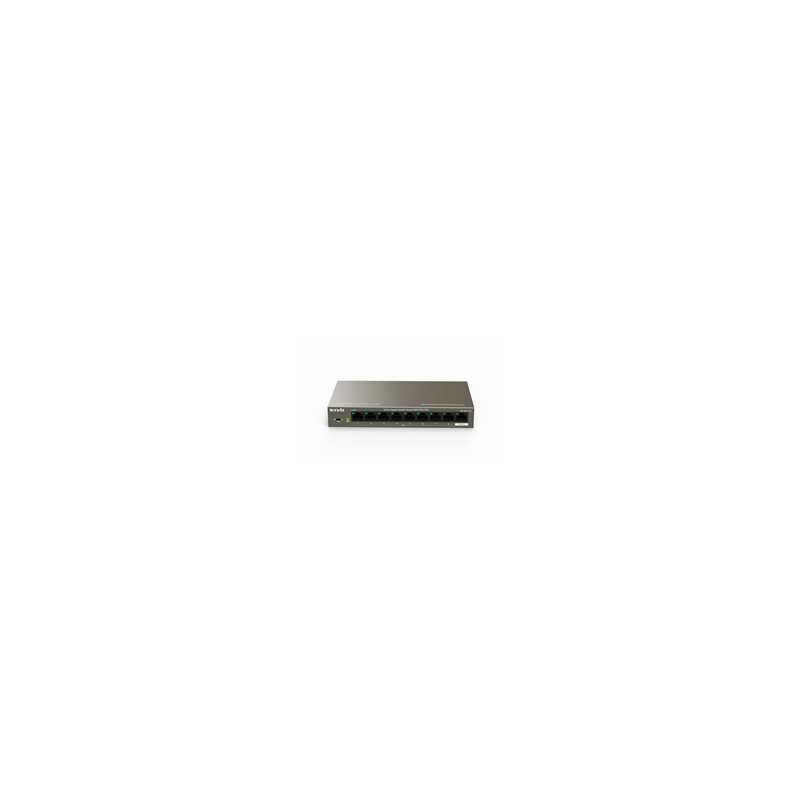

Tenda TEG1109P-8-102W 9-Port Gigabit Desktop Ethernet Switch with 8-Port POE

Born for Small and Medium-sized HD IP Surveillance Projects

6kV lightning Protection
One-key VLAN
Inteligent 8-core power suppiy
Smart Power Management
Large Buffer Design
102W Power Supply

Excellent Lightning Protection
The switch supports 6 kV lightning protection for all port, protecting the switch from thunderstorms and making it more stable.

Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.

Specifications

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

LED Indicators
9 x Link/Ack LED indicators
1 x Power LED indicator

Interfaces
8 x 10/100/1000 Base-T Ethernet Ports(Data/Power)
1 x 10/100/1000 Base-T Ethernet Ports(Data)

Transmission Media
Recommended: CAT5/5e UTP or better

Fans
None

Dimensions
177.5mm x 104.0mm x 26.0mm

Protection Technology
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: +/-10kV
Contact discharge: +/-8kV

Forwarding Mode
Store-and-forward

Switching Capacity
18 Gbps

Packet Forwarding Rate
13.4 Mbps

Buffer
2MB

MAC Address Table
16K

Jumbo Frame
N/A

PoE Budget
Single port: AF: 15.4W, AT: 30W
Whole device: 92W

Input Voltage
100-240V AC 50/60Hz
51V /2.0A DC(Power Adapter Output)

Mounting
Desktop / Wall mounted

VLAN
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
