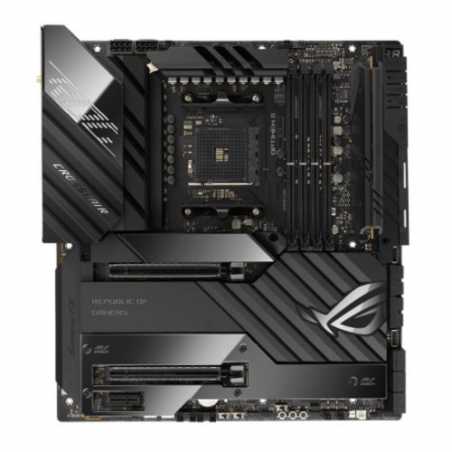

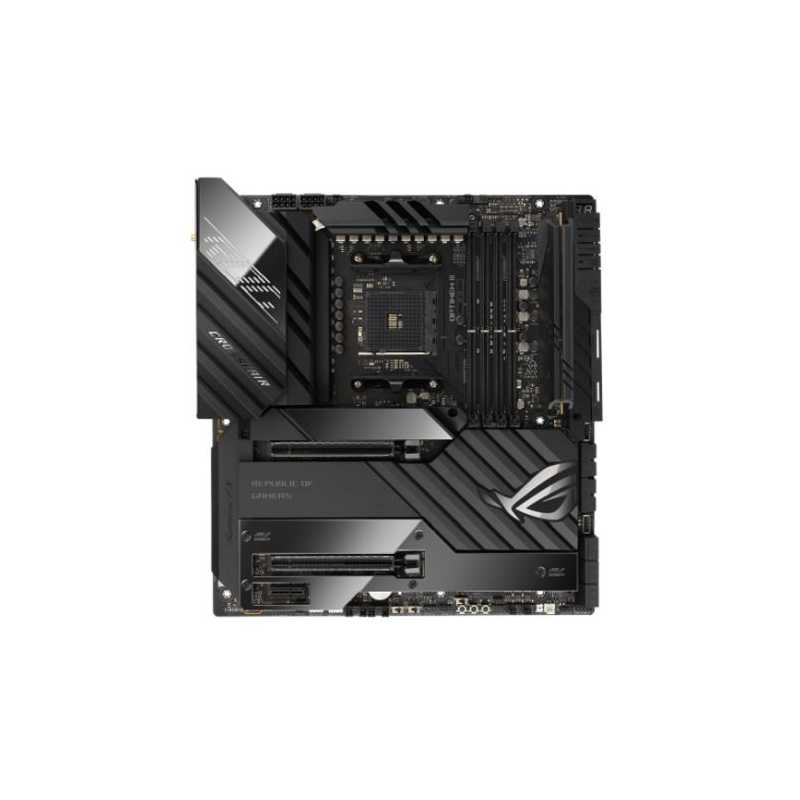

Asus ROG CROSSHAIR VIII EXTREME, AMD X570, AM4, EATX, 4 DDR4, 2 DP, SLI, Wi-Fi, 2.5G & 10G LAN, PD 3.0 60W, RGB Lighting, 5x M.2

£823.20
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



AMD X570 EATX gaming motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector with PD 3.0 60 W support, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt 4, Marvell AQtion 10 Gb Ethernet, Intel 2.5 Gb Ethernet, PCIe 4.0, onboard WiFi 6E and Aura Sync RGB lighting


  • AMD AM4 socket: Ready for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
  • Comprehensive thermal design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone.
  • Robust power delivery: 18+2 power stages rated for 90 A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
  • High-performance connectivity: USB 3.2 Gen 2x2 front-panel with PD3.0 60W fast charging, onboard WiFi 6E, Marvell AQtion 10 Gb Ethernet, Intel 2.5 Gb Ethernet, and ASUS LANGuard.
  • Industry-leading gaming audio: ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC and the bundled ROG Clavis USB digital-to-analog converter for high-fidelity sound.
  • Unmatched personalization: 2 LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
  • DIY-friendly design: Bundled ROG Fan Controller, pre-mounted I/O shield, VLatch switch, BIOSFlashBack, M.2 Q-Latch, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
  • Renowned software: Bundled 1-year AIDA64 Extreme subscription



ASUS
90MB1860-M0EAY0

Data sheet

.
1 x ROG CLAVIS DAC1 x ASUS Wi-Fi moving antennas 2 x M.2 SSD screw packages1 x Q-connector1 x ROG key chain1 x ROG Graphics card holder1 x ROG logo plate stickers1 x ROG screwdriver1 x ROG stickers1 x ROG thank you card1 x USB drive with utilities and dri
Wireless
Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.2
RAM Speeds
Up to 5000(OC)
Accessories
1 x 1-to-3 ARGB splitter cable2 x 1-to-4 fan splitter cable1 x RGB extension cable3 x ROG weave SATA 6G cables1 x 3-in-1 Thermistor cables pack1 x ROG Fan Controller1 x Fan EXT PWR cable1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mo
USB Ports Supported
2 x Thunderbolt 4 USB Type-C (at back)8 x USB 3.2 Gen2 Type-A (at back)1 x USB 3.2 Gen2x2 Type-C PD 3.0 (at mid-board)1 x USB 3.2 Gen2 Type-C (at mid-board)2 x USB 3.2 Gen1 (at mid-board)2 x USB 2.0 (at mid-board)
Storage
6 x SATA III3 x M.2 (2242/2260/2280) - SATA & PCIe2 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - SATA & PCIeVia ROG DIMM.2:2 x (2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Extended ATX
Socket
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports NVIDIA 2-Way SLI
LAN
10GB LAN & 2.5GB LAN
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Back Panel I/O Ports
2 x Thunderbolt 4 USB Type-C2 x DisplayPort IN ports for Thunderbolt 48 x USB 3.2 Gen2 Type-A1 x ASUS Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet1 x Marvell AQtion AQC113CS 10Gb Ethernet5 x LED-illuminated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBa
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan2 x 4-pin Radiator Fan2 x W_PUMP+1 x WB_SENSOR1 x 2-pin Water In1 x 2-pin Water Out1 x 3-pin Water Flow1 x 24-pin Main2 x 8-pin +12V1 x 6-pin PCIe Graphics Card/ PD 3.0
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
2 x Thunderbolt 4 (USB-C) support DisplayPort 1.4 & Thunderbolt video outputs
Additional Features
See Overview
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
10GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
2 x PCIe 4.0 x16 SafeSlots (x16, x8/x8)1 x PCIe 3.0 x1
Wi-Fi
Yes (Wi-Fi)
