10/100Mbps WDM Media Converter
MC112CS
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Adopts WDM technology, transmitting and receiving data on one single fiber


What This Product Does

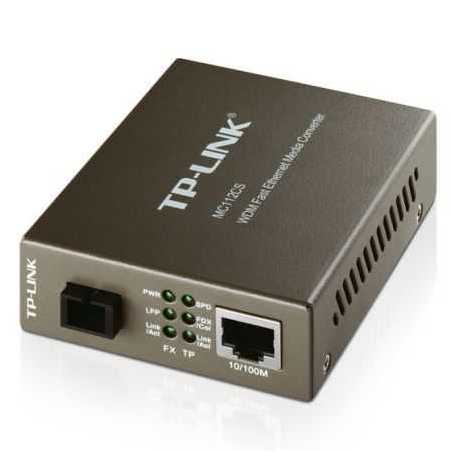

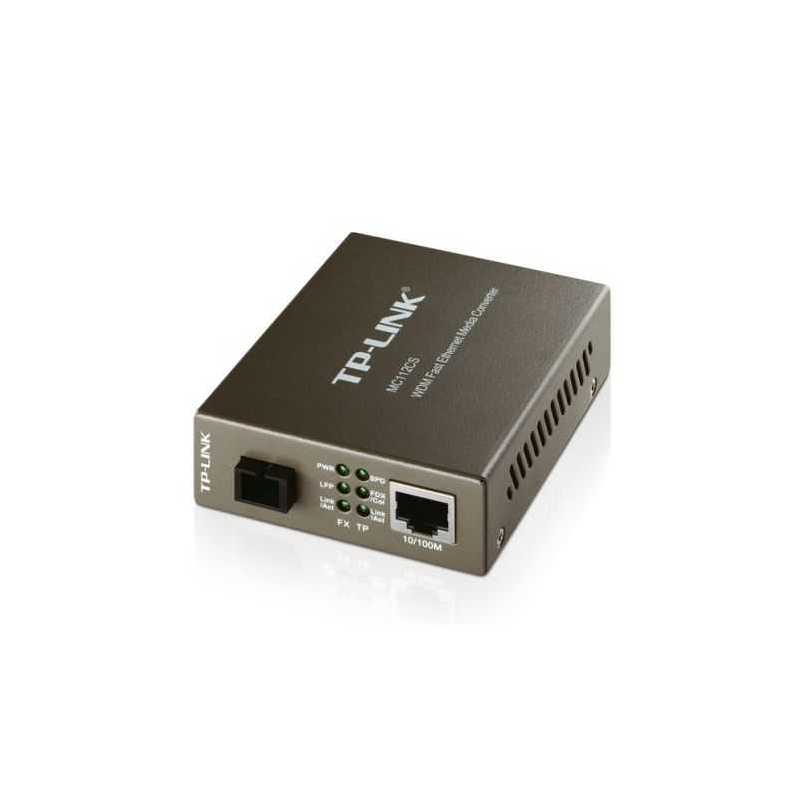

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS.

Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Quantity

Delivery from %MINIMAL_DATE%

Description

Specification

  • Type: Single-Mode Media Converter
  • Enclosure Type: External
  • Basic Functions: Adopts WDM technology
    Half/Full-Duplex transfer mode for FX port
    Full Duplex Flow Control (IEEE 802.3x)
    Half Duplex Flow Control (Backpressure)
    Link Fault Passthrough and Far End Fault
    Extends fiber distance up to 20km
  • Ports: 1 x 100M SC port
    1 x 100M RJ45 port (Auto MDI/MDIX)
  • Standards and Protocols: "IEEE 802.3, IEEE 802.3u, IEEE 802.3x"
  • WDM TX: 1310nm
  • Wave Length: 1310nm Tx/1550nm Rx
  • WDM RX: 1550nm
  • Network Media 10BASE-T: "UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100 Ohms STP (maximum 100m)"
  • Network Media 100BASE-T: "UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100 Ohms STP (maximum 100m)"
  • Network Media 100BASE-FX: Single-mode Fiber
  • LED Indicators: "PWR, FDX/Col, Link/Act, SPD"
  • Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
  • Power Supply: External Power Adapter
  • Environment (℃): Operating Temperature: 0C~40C (32F~104F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Type: Retail
  • Package Weight: 0.4800 kg
  • Warranty: Limited Lifetime
MC112CS
1 Item

Specific References

EAN13
6935364030421
