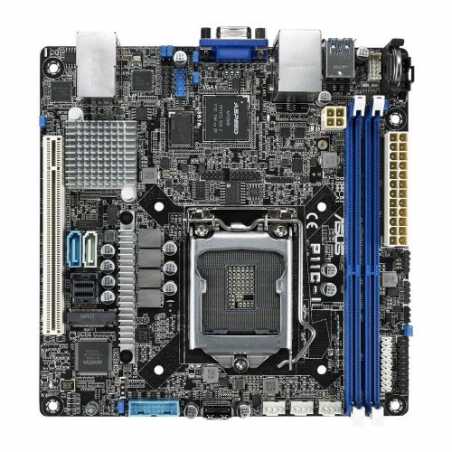

Asus P11C-I Rack-Optimized Server MB, Intel C242, 1151, Intel Xeon E, Mini ITX, Dual GB LAN, M.2, Server Management
£232.02
VAT included
Intel® Xeon® E mini-ITX server motherboard with rack-optimised design and dual networking
- Powered by the Intel® Xeon® E platform
- 95W CPU and up to 32GB memory support (2 DIMMs)
- Rack-optimized design maximizes cooling for excellent thermal efficiency
- Flexible expandability with 6 SATA HDDs and 1 PCIe Gen3 slot
- Dual Intel® Gigabit Ethernet with teaming support
- Accelerated data-transfer speeds of up to 32Gbps with M.2
- High-speed mini-SAS HD connections
- TPM-M 2.0 support for enhanced platform integrity
- Complete server management with ASUS Control Center
Mini-ITX compact server board with multiple expandability options
P11C-I is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual server-class Intel® Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7” x 6.7” Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
The layout is rack-optimised placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. P11C-I also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.
High-speed mini-SAS HD connections
P11C-I comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-I also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-I, making it a great upgrade option.
Dual Intel® I210AT Gigabit Ethernet
P11C-I features dual server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualisation applications perfectly which requires ultrafast and reliable network.
TPM-M 2.0 ready
P11C-I supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
Comprehensive IT infrastructure management
P11C-I features an optional embedded iKVM module and is bundled with ASUS Control Centre to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. - Sold Seperately.
ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
90SB0690-M0UAY0
Data sheet
- Wireless
- -
- RAM Speeds
- 2666/2400 UDIMM non ECC and with ECC
- Accessories
- 2 x Support CD1 x I/O shield2 x SATA 6G cables1 x Plate for LGA11511 x COM port cable
- USB Ports Supported
- 2 x USB 3.1 Gen2 Type-A (at back)2 x USB 3.1 Gen1 (at back)2 x USB 2.0 ports (at mid-board)
- Storage
- 6 x SATA III*1 x M.2 (2242) - SATA & PCIe*4 by 1 mini-SAS HD
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- Mini ITX
- Socket
- Intel 1151 - Coffee Lake
- Chipset
- Intel C242
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- LAN
- Dual GB LAN & Mgmt LAN Port
- Back Panel I/O Ports
- 2 x USB 3.1 Gen22 x USB 3.1 Gen11 x VGA2 x GbE LAN + 1 x Mgmt LAN
- Internal I/O Connectors
- 1 x TPM1 x PSU Power1 x USB 2.03 x Fan1 x SMBus1 x Chassis Intruder2 x Front LAN LED1 x M.2 Connector NGFF Type: 22421 x Onboard header for optional management card
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.0000 kg
- Graphics Ports
- 1 x VGA
- Additional Features
- See Overview
- Graphics
- Aspeed AST2500 with 32MB VRAM
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- Total Slots: 1Location 7: PCIe x16 (Gen3 X16 Link)
