Asus (RS100-E10-PI2) Intel Xeon E Rack-Optimised 1U Server Barebone, Intel C242, S 1151, 4x DDR4, 2 Bay, 2x M.2, Quad GB LAN, 25
search
  • Asus (RS100-E10-PI2) Intel Xeon E Rack-Optimised 1U Server Barebone, Intel C242, S 1151, 4x DDR4, 2 Bay, 2x M.2, Quad GB LAN, 25

Asus (RS100-E10-PI2) Intel Xeon E Rack-Optimised 1U Server Barebone, Intel C242, S 1151, 4x DDR4, 2 Bay, 2x M.2, Quad GB LAN, 25

£618.75
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

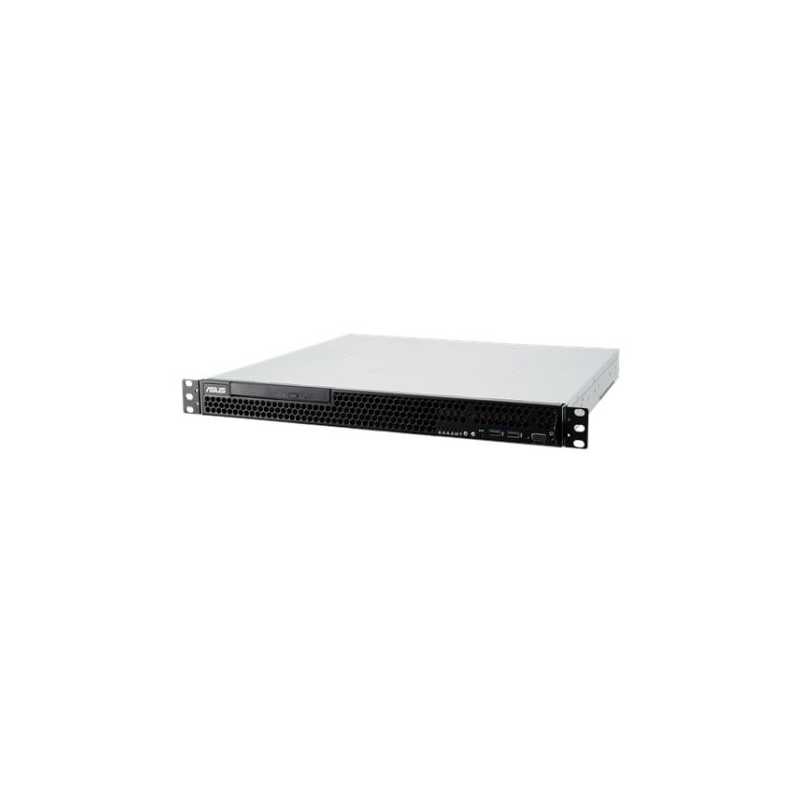

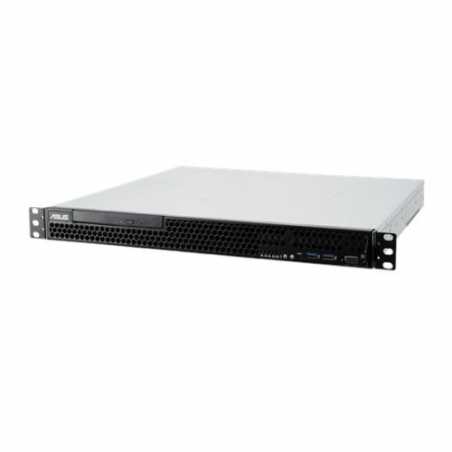

Intel® Xeon® E rack-optimised 1U server designed for storage flexibility and Quad networking


  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 64GB memory support (4 DIMMs)
  • Flexible storage expandability with up to 5 storage devices
  • Two M.2 slots accommodate 22110-size SSDs for faster boot speed
  • Quad Intel® Gigabit Ethernet with teaming support
  • Comprehensive I/O connectivity to meet different needs
  • Complete server management with ASUS Control Center
  • Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics - not included




Delivers a workload optimised solution

RS100-E10-PI2 supports the latest Intel® Xeon® E processors, which are 1.36x faster than the previous generation and operate at a maximum of 95W for leading performance. It supports four memory slots that fit up to 64GB of DDR4 2666 for memory-intensive computing.





Flexible expansion for better storage

RS100-E10-PI2 offers the performance required by demanding visual computing workloads with support of one NVIDIA graphics card, or you can utilise one PCIe Gen3 x16 slot to expand I/O capacity.

RS100-E10-PI2 fits two internal 3.5-inch HDDs and comes with optical disc drive, and offers different storage choice for storage support. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds.





High-speed mini-SAS HD connections

RS100-E10-PI2 comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. RS100-E10-PI2 also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS100-E10-PI2, making it a great upgrade option.





Quad Intel® Gigabit Ethernet

RS100-E10-PI2 features quad server-class Intel® Ethernet ports and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualisation applications perfectly which requires ultrafast and reliable network. Optional ASUS PEB series Ethernet cards are available for networking upgrade.





Comprehensive IT infrastructure management

RS100-E10-PI2 features an optional embedded iKVM module (not included) and is bundled with ASUS Control Centre to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.



ASUS
90SF00G1-M00050

Data sheet

Storage
2 x 3.5" SATA3 6Gb/s2 x M.2 (2280/2260/2242) - SATA & PCIeSoftware RAID 0, 1
Memory
4 (2-channel)Maximum up to 128GB UDIMMDDR4 2666/2400 UDIMM non ECC and with ECC32GB, 16GB, 8GB, 4GB UDIMM
Warranty
3 Year Advanced Replacement
Form Factor
1U
Chipset
Intel C242
Maximum Memory
128 GB
CPU Support
1 x Socket LGA1151Intel Xeon processor E-2100 familyIntel Xeon processor E-2200 familyThe 8th/9th gen Intel Core i3/Pentium/CeleronClick here for CPU support list
Additional Features
See Overview
Power Supply
Single 250W 80 PLUS Bronze Power SupplyRating: 100-240Vac,4A ,50-60Hz, Class I
Networking
4 x Intel I210AT + 1 x Mgmt LAN
Graphics
Aspeed AST2500 with 32MB VRAM
Expansion Slots
1 x PCI-E x16 (x16 Gen3 Link)
Environment
Operating temperature: 10°C ~ 35°CNon operating temperature: -40°C ~ 70°CNon operating humidity: 20% ~ 90% ( Non condensing)
Dimensions/Weight
380 x 430 x 44 mm7.5 kg
No. LAN Ports
4
Max LAN Speed
GB LAN
CPU Socket
Intel 1151 - Cofee Lake
HDD Bays
With ODD:up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay supportWithout ODD:up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support
Front I/O Ports
2 x USB 3.01 x VGA
Rear I/O Ports
1 x External Serial4 x RJ-452 x USB 3.12 x USB 3.0 1 x VGA1 x RJ-45 ports (One for ASMB9-iKVM - not included)
Switch/LED
Rear Switch/LED:1 x Q-Code/Port 80 LED1 x Power switchFront Switch/LED:1 x Power switch/LED1 x Location switch/LED1 x Reset switch1 x HDD Access LED1 x Message LEDLAN 1-4 LED
OS Support
Windows Server 2016RedHat Enterprise LinuxSuSE Linux Enterprise ServerCentOS
Management Solution
ASUS Control CenterOptional ASMB9-iKVM for KVM-over-IP - not included
Regulatory Compliance
BSMI, CE, RCM, FCC(Class B)
Auxiliary Storage FDD/CD/DVD
1 x Slim-type Optical Drive BayOptions: No Device / DVD-RW
No. of CPU Sockets
Single Socket
Memory Slots
4 Memory Slots
