ACE A-600BR 600W 120mm Black Silent Fan PSU
search
  • ACE A-600BR 600W 120mm Black Silent Fan PSU

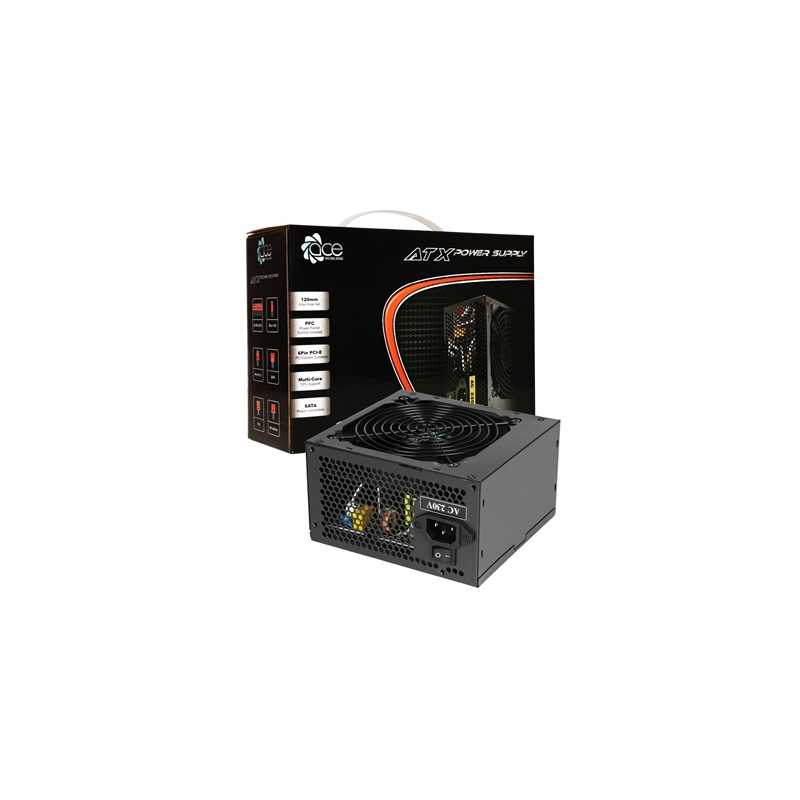

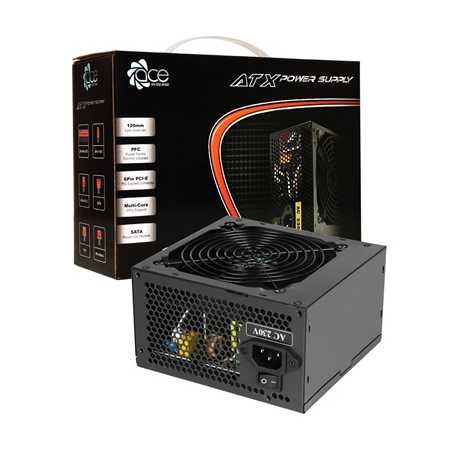

ACE A-600BR 600W 120mm Black Silent Fan PSU

£18.58
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

Ace PSUs are certified RoHS compliant and with power factor control-giving you a safe and stable foundation to build your system from. Ace PSUs come with a superb 12cm fan that offers a quiet operation but with excellent cooling meaning you are working in a more peaceful environment and the right cooling ensures maximum lifespan of your products. Supplied with all the appropriate cables Ace provides maximum compatibility with popular CPU's and mainboards.

Key Features
- Power Factor Control (PFC)
- Cooling: 12cm Black Fan
- New Version 1.3 / 2.03
- Silent with better ventilation
- ATX 12V compliant for most CPUs and mainboards
- Input Range : 230Vac, 5A, 50-60Hz
- 2 x SATA Connectors
- 3 x Molex Connectors
- 20+4 Pin Motherboard Connector

Model Number
A-600BR

Wattage
600W

Connections
1 x 20+4 Pin ATX
1 x 4+4 Pin EPS
1 x 6+2 Pin PCIe
2 x SATA Connectors
3 x 4-Pin Molex Connectors
1 x Floppy Drive Connectors

Input Voltage
230 VAC

Input Current
5A

Input Frequency Range
50-60Hz

PFC
Yes
Passive Power Factor Control

Power Good Signal
150-450 ms

Hold Up Time
1ms-40ms

Efficiency
75%

MTBF
100,000 Hours

Protection
OVP / UVP/ OPP

Operational Temperature
45°C

Safety
CE / ROHS

Cooling
120mm Black Fan

Noise
< 17 dBA

What's In The Box
PSU
Manual
Screws
Cable Ties

Product Dimensions ( W x H x D )
150mm x 85mm x 140mm

Packaging Dimensions ( W x H x D )
230mm x 85mm x 140mm

Weight
Net: 1.05 KGs
Gross: 1.174 KGs
ACE
A-600BR

Data sheet

Size
ATX
Wattage
600W
Modular
No
Certification
None
SATA Connections
2

Specific References

EAN13
5055492400048
