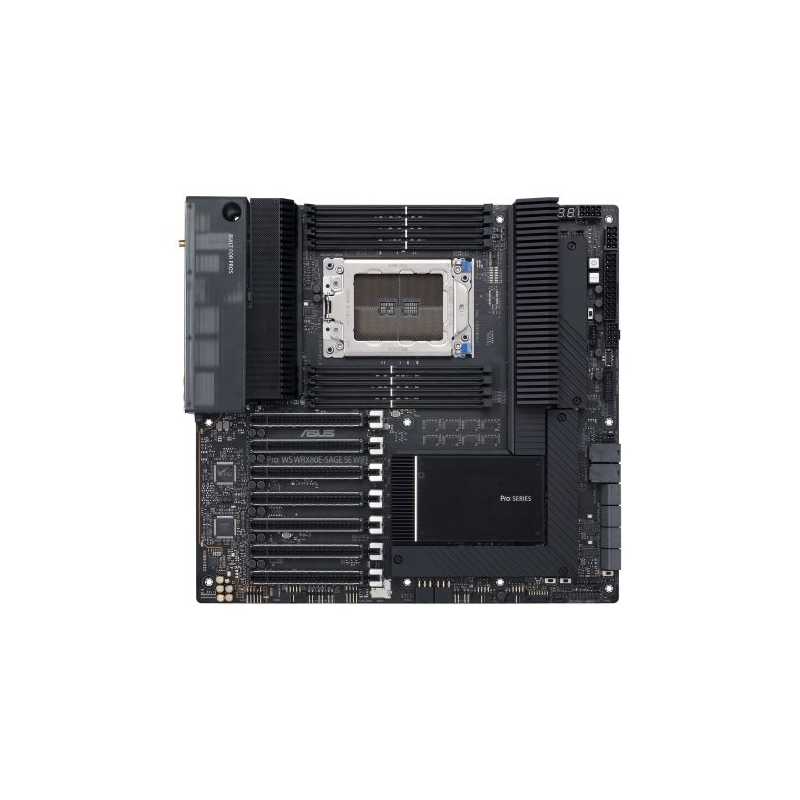

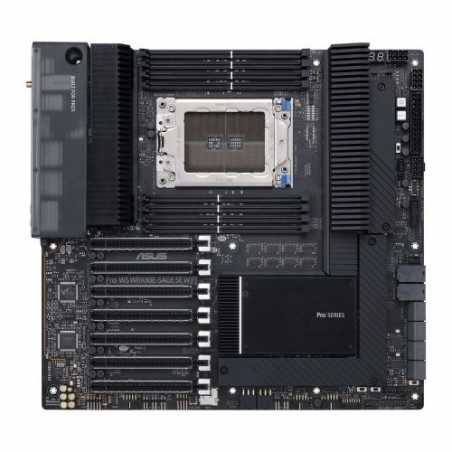

Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2

Data sheet

.

1 x PSU_SMB1 x SMART_PSU switch1 x VGA switch1 x VGA header1 x VPP_I2C1 x COM Port1 x FlexKey button1 x Front Audio1 x SPI TPM (14-1pin)1 x Start button1 x 20-3 pin System Panel w/ Chassis intrude function1 x RTC Battery1 x Thermal Sensor

Wireless

Intel Wi-Fi 6 AX2002x2 Wi-Fi 6 support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports 2.4/5GHz Dual-BandSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interfaceBluetooth v5.1

RAM Speeds

3200/3000/2933/2800/2666/2400/2133 MHzECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory

Accessories

6 x SATA cables1 x VGA cable1 x ASUS 2x2 Dual-Band Wi-Fi antennas1 x Hyper M.2 X16 Gen 4 Card3 x M.2 Rubber Packages3 x M.2 SSD screw packages1 x Q-connector1 x Support DVD1 x User manual

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)8 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 Type-A (at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector

Storage

8 x SATA III3 x M.2 (2242/2260/2280/22110) - SATA & PCIe2 x U.2 - supports U.2 NVMe device and up to 4 SATA devices**The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be

RAID

RIAD 0, 1, 10

Warranty

3 Years

Motherboard Type

Server / Workstation

Form Factor

ATX

Socket

AMD WRX8

Chipset

AMD WRX80

DDR Type

DDR4

RAM Technology

DDR4 (Eight Channel)

RAM Slots

8 x DIMM

Maximum Memory

2048GB

Multi-GPU Support

Supports NVIDIA 4-Way SLI TechnologySupports AMD 4-Way CrossFireX Technology

LAN

Dual 10GB LAN

Audio

Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C9 x USB 3.2 Gen2 (8 x Type-A + 1 x Type-C)1 x ASUS Wi-Fi Module2 x Intel X550-AT2 dual 10Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan6 x 4-pin Chassis Fan1 x VRM heatsink Fan1 x Chipset Fan1 x 24-pin Main2 x 8-pin +12V2 x 6-pin PCIe Graphics Card1 x 8-pin PCIe3 x M.2 (Key M)8 x SATA 6Gb/s2 x U.2

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

-

Additional Features

See Overview

Graphics

-

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

2 x LAN

Max LAN Speed

10GB LAN

PCI/PCI Express

7 x PCIe 4.0/3.0 x16** Support PCIe bandwidth bifurcation for RAID on CPU function

Wi-Fi

Yes (Wi-Fi)

Specific References

EAN13

4711081066262
