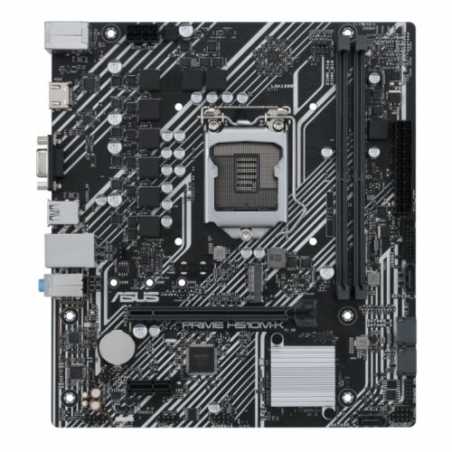

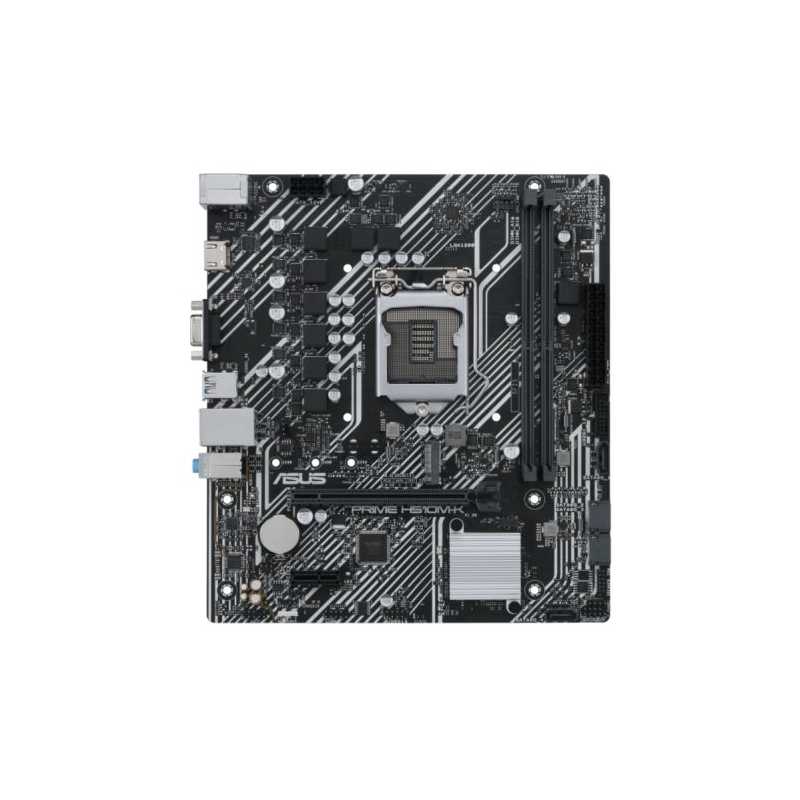

Asus PRIME H510M-K, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Data sheet

.

1 x S/PDIF Out1 x Speaker1 x SPI TPM(14-1pin)1 x 10-1 pin System Panel

Wireless

-

RAM Speeds

Up to 3200(OC)

Accessories

2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 ANCHOR

USB Ports Supported

4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (4 at back, 2 at mid-board)

Storage

4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

-

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel H510

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A4 x USB 2.01 x D-Sub1 x HDMI1 x Intel I219-V 1Gb Ethernet3 x Audio jacks1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V 1 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen11 x USB 2.01 x RGB1 x Clear CMOS1 x COM Port1 x Front Audio

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

0.8250 kg

Graphics Ports

1 x VGA1 x HDMI

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

1 x PCIe 4.0 x161 x PCIe 3.0 x1

Specific References

EAN13

4711081152132
