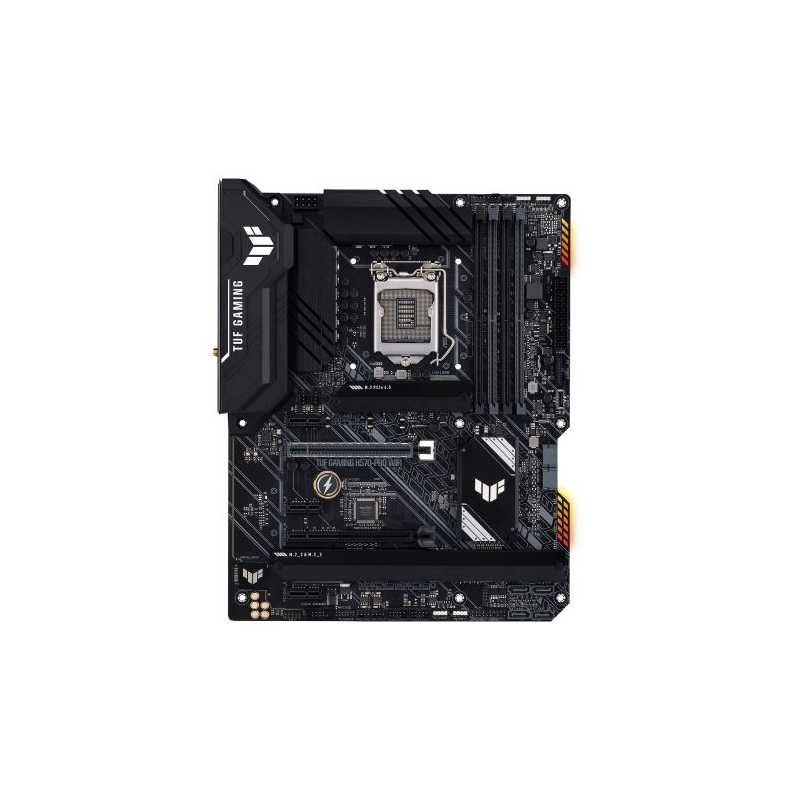

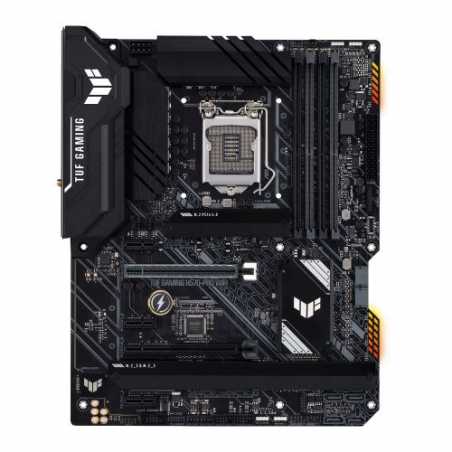

Asus TUF GAMING H570-PRO WIFI, Intel H570, 1200, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB, 3x M.2
£194.76
VAT included
Intel® H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel® WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type C®, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting.
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Core™ processors
- Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
- Made for online gaming: Intel® WiFi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
90MB16L0-M0EAY0
Data sheet
- .
- 1 x Thunderbolt 41 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V3 x M.2 (Key M)6 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.0
- Wireless
- Intel Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.0 or later
- RAM Speeds
- Up to 5000(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antennas2 x M.2 Rubber Packages2 x M.2 SSD screw packages1 x TUF Gaming sticker1 x Support DVD1 x TUF Certification card1 x User manual
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)3 x USB 3.2 Gen1 (1 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x Front Panel USB 3.2 Gen1 Type-C Connector
- Storage
- 6 x SATA III1 x M.2 ( 2242/2260/2280) - PCIe*1 x M.2 ( 2242/2260/2280/22110) - SATA & PCIe1 x M.2 ( 2242/2260/2280) - PCIe*This slot is only active with 11th gen CPUs
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel H570
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- -
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen1 Type-A4 x USB 2.01 x DisplayPort1 x HDMI1 x ASUS Wi-Fi Module1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out
- Internal I/O Connectors
- 1 x Thunderbolt 41 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V3 x M.2 (Key M)6 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.6620 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 4.0 x16 1 x PCIe 3.0 x163 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
