- Out of stock

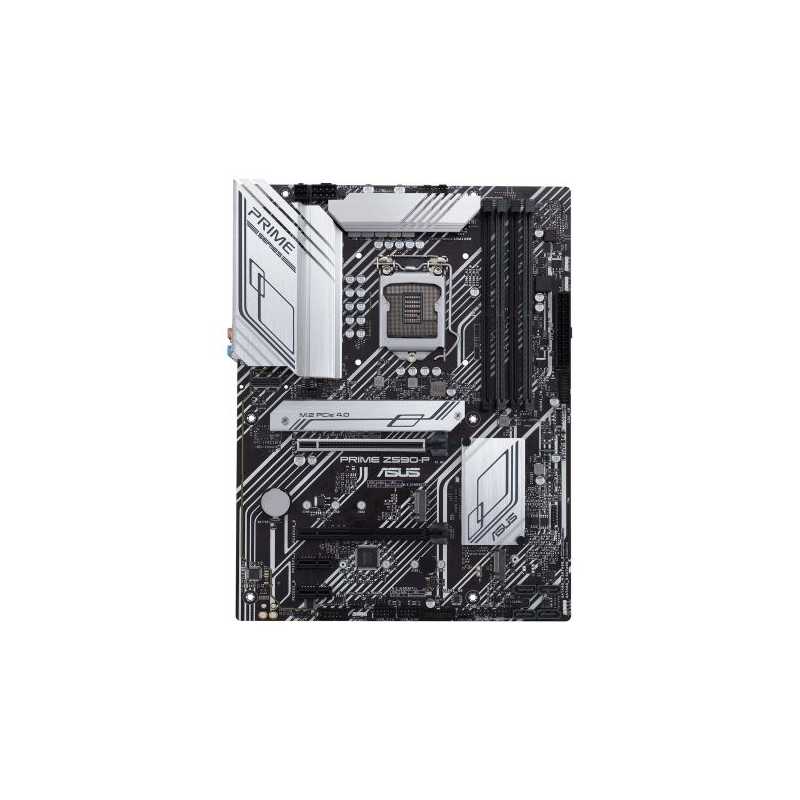

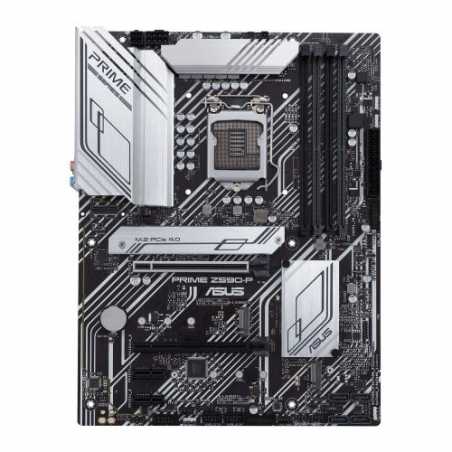

Asus PRIME Z590-P, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, RGB, 3x M.2
£241.58
VAT included
Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2 slots, 11 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
- Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel US
90MB16I0-M0EAY0
Data sheet
- .
- 2 x AURA RGB1 x Clear CMOS1 x COM Port1 x Front Audio1 x SPI TPM (14-1pin)1 x 20-5pin System Panel1 x Thunderbolt
- Wireless
- -
- RAM Speeds
- Up to 5133(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 Rubber Package2 x M.2 SSD screw packages
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen1 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe*1 x M.2 (2242/2260/2280) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - SATA & PCIe*This slot is only active with 11th gen CPUs
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel Z490
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- -
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 USB Type-C1 x USB 3.2 Gen2 Type-A2 x USB 3.2 Gen1 Type-A2 x USB 2.0 Type-A1 x DisplayPort1 x HDMI1 x V-M.2 (Key E)1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out1 x PS/2 Keyboard/Mouse combo
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V3 x M.2 slots (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen12 x USB 2.02 x AURA Addressable Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.5000 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x16
