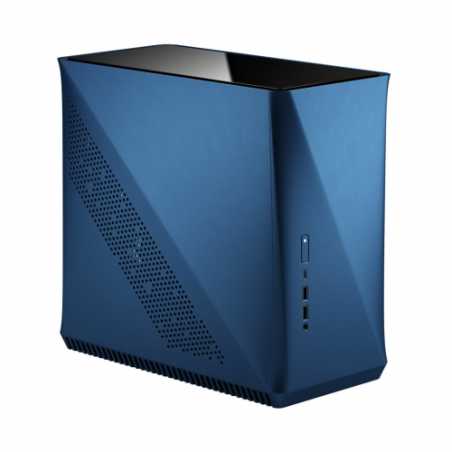

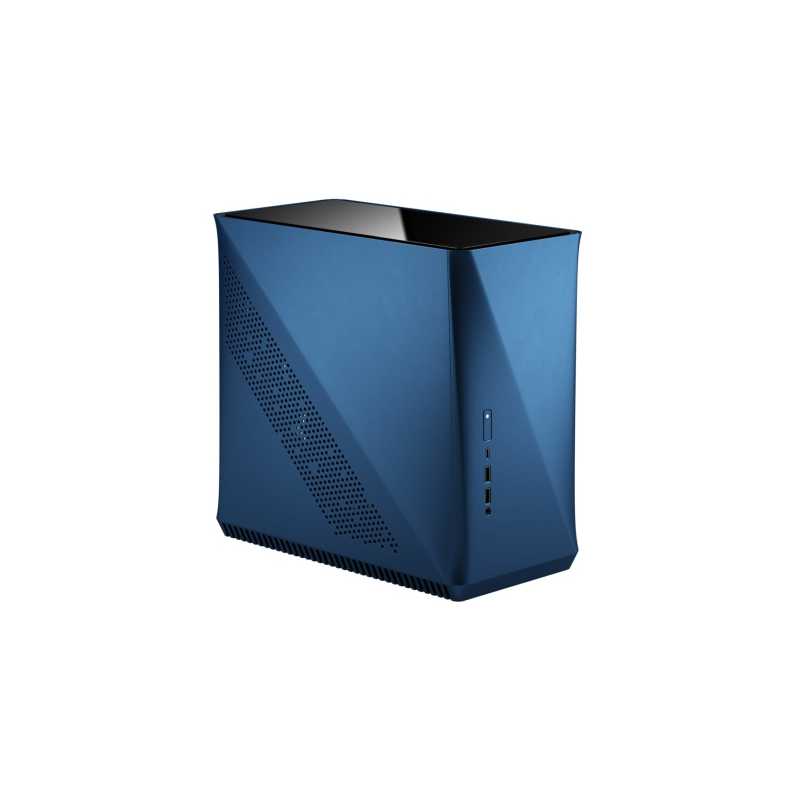

Fractal Design Era ITX (Cobalt TG) Compact Case w/ Glass Top Panel, Mini ITX, ATX/SFX PSU & 295mm GPU Support, 240mm Watercoolin
£137.60
VAT included
Era is a unique and elegantly understated feat of both design and technical engineering — a compact chassis free from the excessive restrictions traditionally associated with small form factor systems.
- Versatile interior supporting professional grade hardware
- Stylish top panel designed to match the color of your case.
- Additional steel mesh top panel included for higher airflow
- Small, flexible, and space efficient with volume just over 16 liters
- Supports Dual Slot graphics cards up to 295 mm in length
- Excellent water cooling support via removable radiator bracket allowing 240 mm or dual 120 mm radiators
- Two storage brackets, each capable of mounting a single 3.5” HDD or two 2.5” SSDs
- Efficient chimney design optimizes airflow across five total fan positions
- Pre-installed 80 mm Fractal Design SSR3 fan exhausts heat silently and effectively
- Install SFX or ATX PSUs up to 200 mm in length with innovative adjustable brackets that maximize flexibility
- Magnetic top panel and tool-less latching side panels allow easy access
- Easy-to-clean, high airflow nylon filters on the top, sides and base
- USB 3.1 Gen 2 Type-C with support for fast charging and speeds up to 10Gbps
Just add water
The removable radiator bracket allows 240 mm or dual 120 mm radiators for robust liquid cooling.
Flexible storage
The two included storage brackets each support a single 3.5" HDD or two 2.5" SSDs.
Airflow and the Era
- Efficient chimney design optimizes airflow across five total fan positions
- Pre-installed 80 mm Fractal Design SSR3 fan exhausts heat silently and effectively
- Easy-to-clean, high airflow nylon filters on the top, sides and base
SFX or ATX? Yes.
Our innovative adjustable brackets give you total flexibility with PSU mounting height in order to maximize effective use of interior space.
Need more air?
The top insert are easily swappable with the included steel mesh panel for increased airflow.
Front Type-C
USB 3.1 Gen 2 Type-C with support for fast charging and speeds up to 10Gbps
Easy access
A magnetic top panel and tool-less latching side panels make for near-effortless maintenance
Large GPU Support
Allows dual slot graphics cards up to 295 mm in length
FD-CA-ERA-ITX-BU
Data sheet
- .
- Water Cooling options:Top: 120/240 mm or 2x 120 mm (max 125 mm width, 67 mm thickness w/ fans, dependent on PSU position/type)
- Accessories
- Top insertBlack mesh top insertUser manualLarge accessory boxSmall accessory box
- Warranty
- 2 Years
- Form Factor
- Mini ITX
- Package Weight
- 4.8500 kg
- Additional Features
- See Overview / Video
- Colour
- Blue
- Weight/Dimensions
- 3.97 kg(L x W x H) 325 x 166 x 310 mmw/o feet/protrusions/screws: 325 x 166 x 307 mmVolume: 16 liters
- Material
- Aluminium panels, steel frameTempered glass top panel
- Power Supply Wattage
- No PSU
- Motherboard Support
- Mini ITX
- Connectors / Controls
- 1 x USB 3.1 Gen 2 Type-C2 x USB 3.03.5 mm CTIA combined audio/mic
- Drive Bays
- 3.5":ATX PSU: 1 HDDSFX PSU: 2 HDDs or 1 HDD + 2 SSDs2.5":ATX PSU: 2 SSDsSFX PSU: 4 SSDs or 2 SSDs + 1 HDD
- Compatability
- GFX Card:295 mm or 210/190 mm (with low-mounted SFX/ATX PSU) Max CPU Cooler:120 mm (70 mm recommended with side-mounted 3.5” HDD) PSU:ATX / SFX-L / SFXMax length: 200 mm
- Small Form Factor
- Yes (SFF)
- Expansion Slots
- 2 Expansion Slots
- Cooling System
- Included Rear: 1 x SSR3 80 mm fanFan MountsTop: 2 x 120 mmRear: 1 x 80 mmBottom: 2 x 140 mm (without 2-slot GPU)
