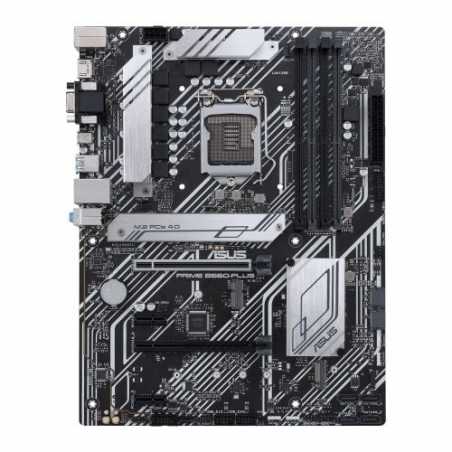

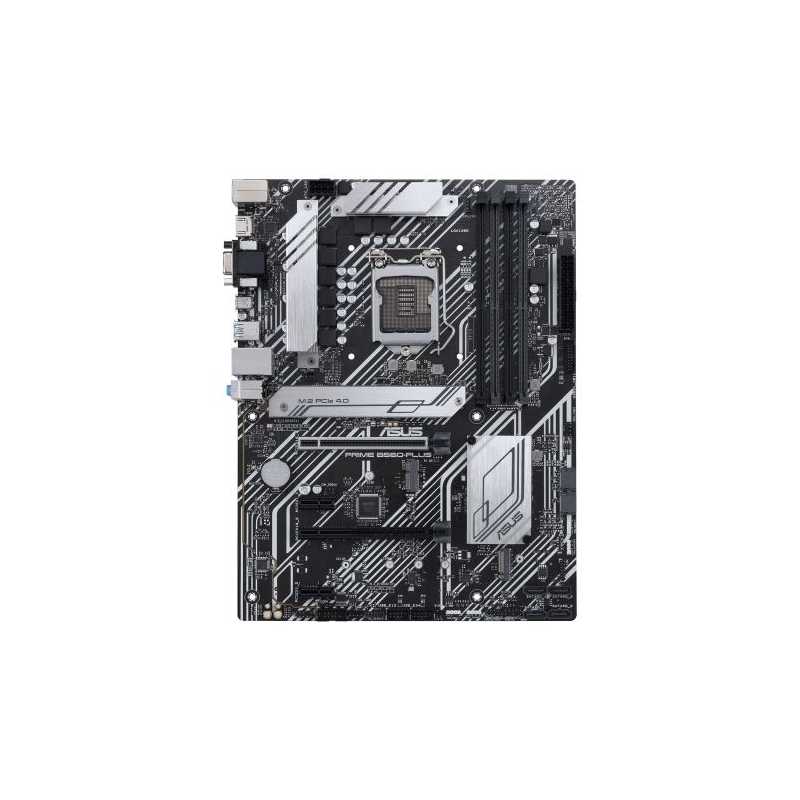

Asus PRIME B560-PLUS, Intel B560, 1200, ATX, 4 DDR4, VGA, HDMI, DP, RGB, 2x M.2

Data sheet

.

1 x Front Audio1 x S/PDIF out1 x 20-3pin System Panel1 x SPI TPM (14-1 pin)1 x M.2 slot (key E) 1 x Thunderbolt 4

Wireless

-

RAM Speeds

Up to 4600(OC)

Accessories

2 x SATA 6Gb/s cables1 x M.2 Rubber Package1 x IO Shield1 x M.2 SSD screw package1 x M.2 Key E screw package

USB Ports Supported

1 x USB 3.2 Gen1 Type-C (at back)4 x USB 3.2 Gen2 Type-A (2 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)

Storage

6 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe*1 x M.2 (2242/2260/2280/22110) - SATA & PCIe*This slot is only active with 11th gen CPUs

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel B560

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC 897 7.1 Surround Sound High Definition Audio

Back Panel I/O Ports

1 x DisplayPort1 x HDMI1 x D-Sub3 x Audio jacks1 x PS/2 Keyboard/Mouse combo1 x Intel® I219-V 1Gb Ethernet 4 x USB 2.0 (Type-A)2 x USB 3.2 Gen2 (Type-A)1 x USB 3.2 Gen1 port (Type-C)

Internal I/O Connectors

1 x 4-pin CPU Fan3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 slots (Key M)6 x SATA 6Gb/s1 x USB 3.2 Gen12 x USB 2.02 x AURA Addressable Gen22 x AURA RGB1 x Clear CMOS jumper1 x COM Port

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

1.1000 kg

Graphics Ports

1 x VGA1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

RGB Lighting

Yes (RGB)

PCI/PCI Express

1 x PCIe 4.0 x161 x PCIe 3.0 x162 x PCIe 3.0 x1
