- Out of stock

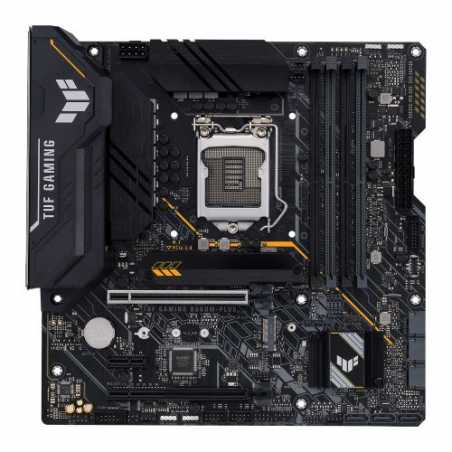

Asus TUF GAMING B560M-PLUS, Intel B560, 1200, Micro ATX, 4 DDR4, HDMI, DP, 2.5G LAN, RGB, 2x M.2
£183.51
VAT included
Intel® B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, Aura Sync RGB Lighting, Addressable RGB
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Next-gen connectivity: PCIe 4.0, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 header support
- Made for online gaming: Intel Wi-Fi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
- Two-way AI Noise-Cancelation: Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability
90MB1780-M0EAY0
Data sheet
- .
- 1 x Clear CMOS1 x COM Port1 x Front Audio1 x 20-3 pin System Panel1 x Thunderbolt
- Wireless
- -
- RAM Speeds
- Up to 5000(OC)
- Accessories
- 2 x SATA cables1 x M.2 Rubber Package1 x M.2 SSD screw package1 x TUF Gaming sticker1 x Support DVD1 x TUF Certification card1 x User manual
- USB Ports Supported
- 2 x USB 3.2 Gen2 Type-A (at back)1 x USB 3.2 Gen1 Type-C (at back)4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x Front Panel USB 3.2 Gen1 Type-C connector
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280) - PCIe*1 x M.2 (2242/2260/2280) - SATA & PCIe*This slot is only active with 11th gen CPUs
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200
- Chipset
- Intel B560
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- -
- LAN
- 2.5GB LAN
- Audio
- HD Audio (8-channel)
- Back Panel I/O Ports
- 2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-4 x USB 2.01 x DisplayPort1 x HDMI1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 slots (Key M)6 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.02 x AURA Addressable Gen22 x AURA RGB
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.3750 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x161 x PCIe 3.0 x1
