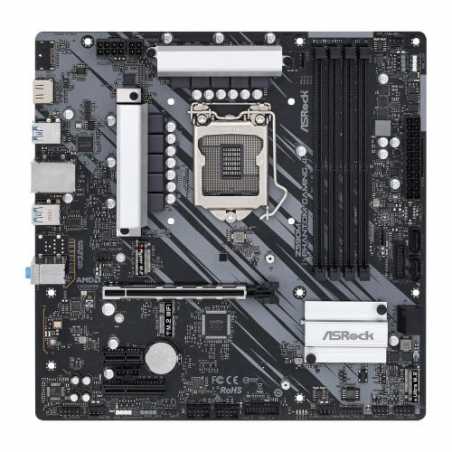

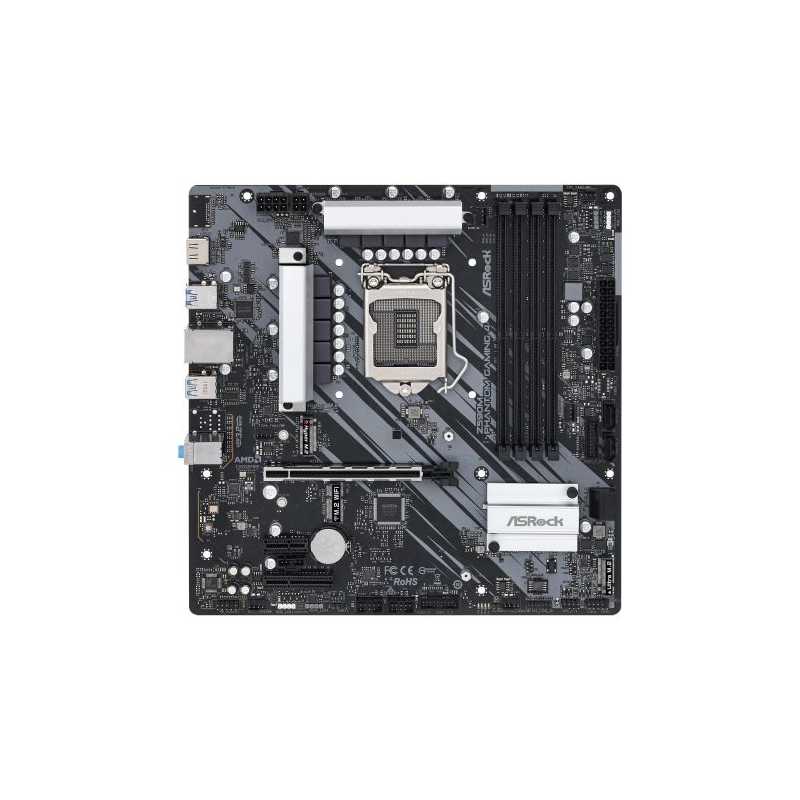

Asrock Z590M PHANTOM GAMING 4, 1200, Micro ATX, 4 DDR4, XFire, HDMI, RGB, 2x M.2
£146.49
VAT included
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- 8 Phase Power Design
- Supports DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
- Graphics Output Options: HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 x Rear USB 3.2 Gen2 (10Gb/s), 8 x USB 3.2 Gen1 (4 x Rear, 4 x Front), 4 x Front USB 2.0
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
Z590M PHANTOM GAMING 4
Data sheet
- .
- 2 x USB 2.02 x USB 3.2 Gen1
- Wireless
- -
- RAM Speeds
- up to 4800+(OC)
- Accessories
- 2 x SATA Data Cables3 x Screws for M.2 Sockets
- USB Ports Supported
- 2 x USB 3.2 Gen2 (at back)8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)4 x USB 2.0 (at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2280) - PCIe1 x M.2 (2280) - SATA & PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200
- Chipset
- Intel Z590
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 3 x Antenna Mounting Points1 x HDMI2 x USB 3.2 Gen2 Type-A4 x USB 3.2 Gen1 Type-A1 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Chassis Intrusion and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Audio1 x Thunderbolt AIC
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.2500 kg
- Graphics Ports
- 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x41 x PCIe 3.0 x1
- Memory Slots
- 4 Slots
- CPU Compatibility
- Intel 10th/11th Gen
- M.2 Compatibility
- NVMe
- USB C
- No
