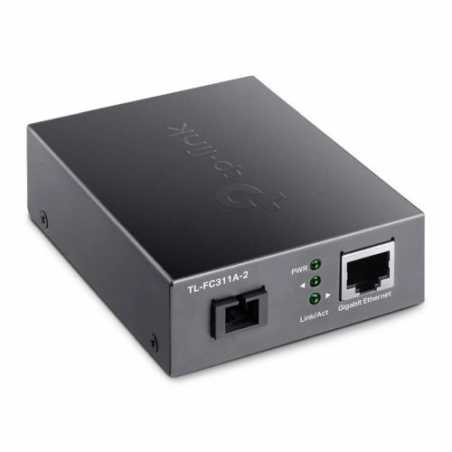

LINK (TL-FC311A-2) Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310

£23.94
VAT included
Stock status: Very low
Last 20 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


Gigabit WDM Media Converter


  • 1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 2 km




What This Product Does

TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.




How This Product Works

TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers.  TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the  TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter  TL-FC311B-2 is one of the products that can cooperate with  TL-FC311A-2.




Other Features

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.




TL-FC311A-2
20 Items

Data sheet

Warranty
Limited Lifetime
Package Type
Retail
Package Weight
0.3500 kg
Type
WDM Media Converter
Power Supply
External Power Adapter: 5 V/0.6 A
Ports
1 x Gigabit SC Fiber Port1 x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Enclosure Type
External
Basic Functions
Auto-negotiation of Half-Duplex/Full-Duplex transfer modeTransmitting and receiving data on one single fiber9/125 um single-mode fiber (up to 2 km)Single-mode FiberUTP category 5, 5e cable (maximum 100m)
Dimensions (WxDxH)
94.5 x 73.0 x 27.0 mm
Standards and Protocols
IEEE 802.3i, 802.3u, 802.3ab, 802.3z
LED Indicators
PWR, Link/Act
Wave Length
1550nm Tx/1310nm Rx
Transmission Distance
2km
Environment (C)
Operating Temperature: 0C to 50C (32F to 122F)Storage Temperature: -40C to 70C (-40F to 158F)Operating Humidity: 10% to 90% RH non-condensingStorage Humidity: 5% to 90% RH non-condensing

Specific References

EAN13
6935364010560
