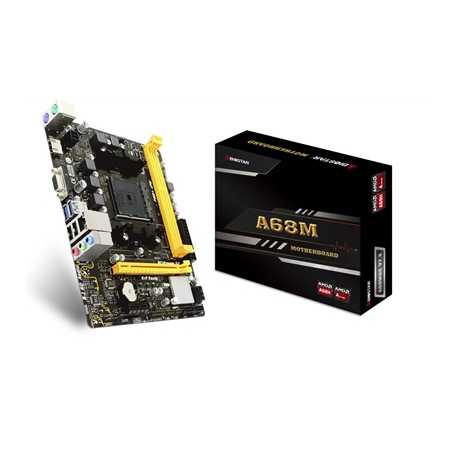

Biostar A68MHE AMD Socket FM2+ HDMI/VGA Micro ATX USB 3.2 DDR3 Motherboard

Support AMD Socket FM2+ Athlon/A- Series Processors
AMD AMD A68H Chipset
Support 2-DIMM DDR3-2600(OC) up to 32G maximum capacity
Support USB 3.2
Support HDMI
Support GbE LAN
AMD Dual Graphics Technology

AMD A68H chipset
AMD A68H chipset is designed to support up to 5GT/s interface speed and PCI Express 3.0/2.0 graphics. It natively supports SATA 6Gb/s ports and USB 3.0 Ports.

HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.

PCIe Gen 3.0
PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.

SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.

Dual DDR3-2600+
It supports 2 or 4 DIMM Slots DDR3 memory that features data transfer rates of DDR3 2600(O.C). The processor support 2 memory channels and setting the memory multiplier, allows selection of the channel speed. These clearly uplift the band width and boost the overall system performance.

USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.

Specifications

Chipset
AMD A68H

CPU Support
AMD FM2+ A-series APU
Maximum CPU TDP (Thermal Design Power) : 100Watt

Memory
Support Dual Channel DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

Integrated Video
By CPU model
Supports DX12
Supports HDCP
AMD Dual Graphics Technology

Storage
4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10

LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller

Audio Codec
Realtek ALC662 6-Channel HD Audio

USB
2 x USB 3.2 Gen1 Port (5Gb/s) (2 on rear I/Os)
6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)

Expansion Slot
1 x PCI-E 3.0 x16 Slot
1 x PCI-E 2.0 x1 Slot

Rear I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.2 Gen1 (5Gb/s) Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

Internal I/O
2 x USB 2.0 Header(each header supports 2 USB 2.0 ports)
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header

Hardware Monitoring
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

Dimensions
Micro ATX Form Factor Dimension: 21.5 cm x 17 cm ( W x L )

OS Support
Supports Windows XP/ 7/ 8/ 8.1(64bit)/ 10(64bit)

Accessories
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
