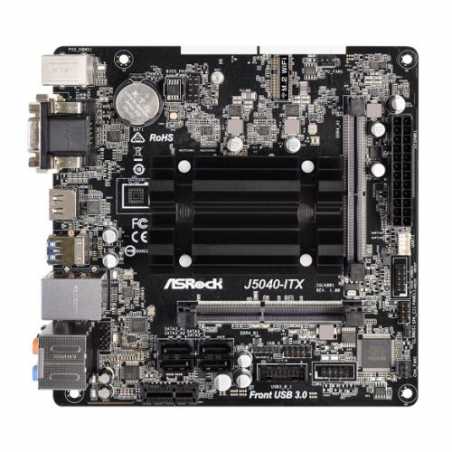

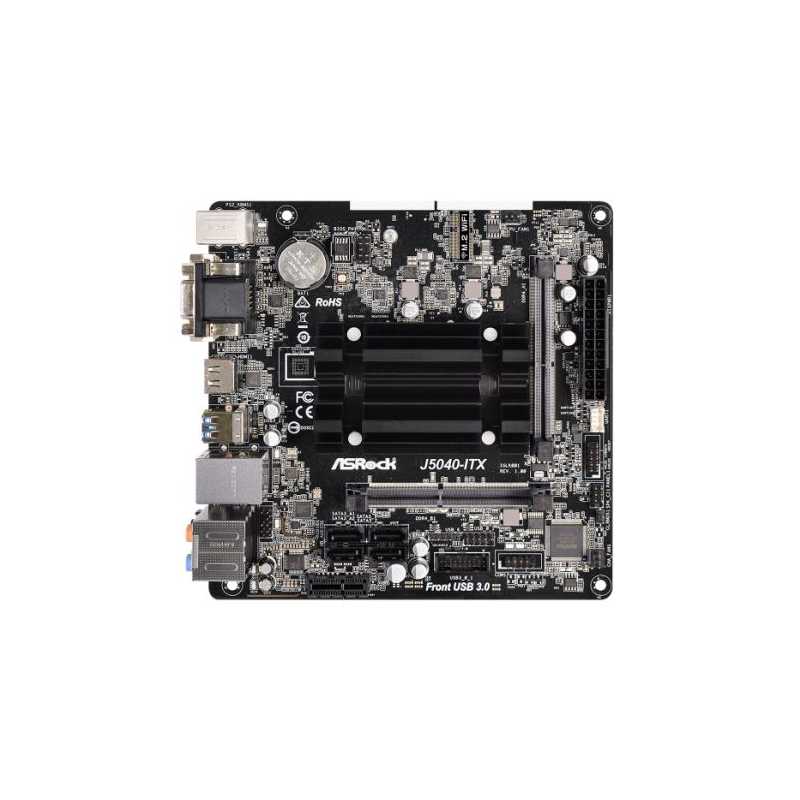

Asrock J5040-ITX, Integrated Intel Quad-Core J5040, Mini ITX, DDR4 SODIMM, VGA, DVI, HDMI

Data sheet

Wireless

-

RAM Speeds

2400 / 2133 MHz

Accessories

2 x SATA Data Cables1 x Screw for M.2 SocketQuick Installation Guide, Support CD, I/O Shield

USB Ports Supported

4 x USB 3.2 Gen1 ports (2 at back, 2 at mid-board)5 x USB 2.0 ports (2 at back, 3 at mid-board)

Storage

4 x SATA III

RAID

-

Warranty

3 Year Replacement Warranty

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Embedded CPU

CPU

Intel Quad-Core Pentium Silver Processor J5040 (up to 3.2 GHz)

DDR Type

DDR4 SO-DIMM

RAM Technology

DDR4 SO-DIMM (Dual Channel)

RAM Slots

2 x SODIMM

Maximum Memory

8GB

Multi-GPU Support

-

LAN

GB LAN

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Back Panel I/O Ports

1 x PS/2 Mouse1 x PS/2 Keyboard1 x D-Sub1 x DVI-D1 x HDMI1 x Optical SPDIF Out2 x USB 2.02 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks

Internal I/O Connectors

1 x COM Port1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis Fan1 x 24 pin ATX1 x Front Audio2 x USB 2.01 x USB 3.2 Gen1

CPU Support

N/A (Integrated CPU)

Package Type

Retail

Package Weight

0.0000 kg

Graphics Ports

1 x VGA1 x DVI-D1 x HDMI

Additional Features

See Overview

Graphics

Integrated Intel UHD Graphics 605: 18 EUs inside (Up to 800MHz)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

1 x PCIe 2.0 x1 Slot

Specific References

EAN13

4710483930515
