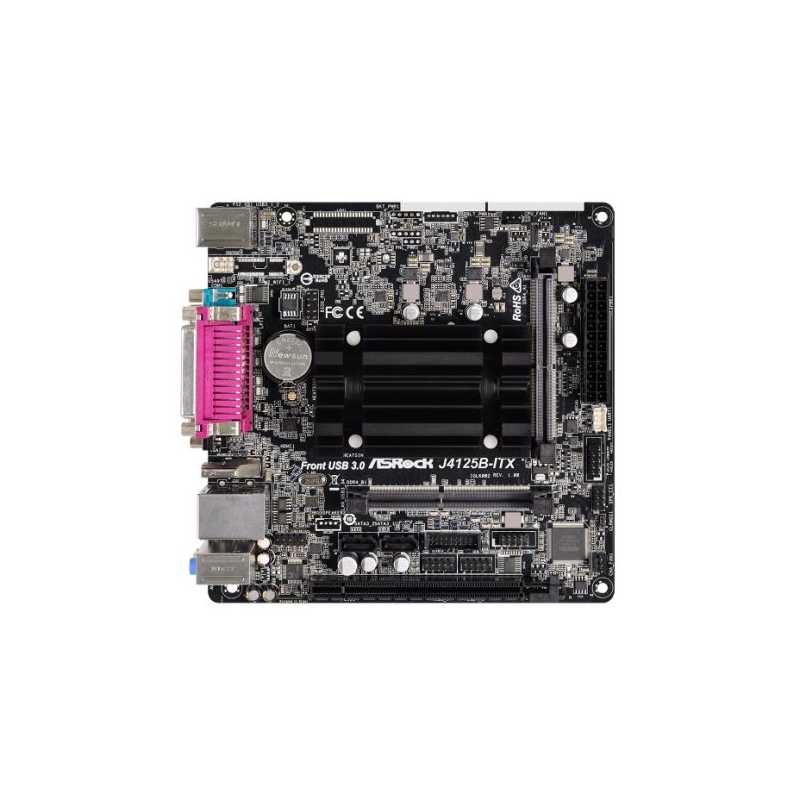

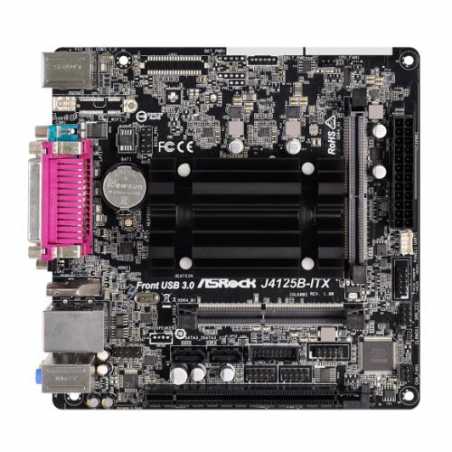

Asrock J4125B-ITX, Integrated Intel Quad-Core J4125, Mini ITX, DDR4 SODIMM, VGA, HDMI, Serial Port, Parallel Port

Data sheet

Wireless

-

RAM Speeds

2400 / 2133 MHz

Accessories

2 x SATA Data CablesQuick Installation Guide, Support CD, I/O Shield

USB Ports Supported

5 x USB 3.2 Gen1 ports (3 at back, 2 at mid-board)5 x USB 2.0 ports (1 at back, 4 at mid-board)

Storage

2 x SATA III

RAID

-

Warranty

3 Year Replacement Warranty

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Embedded CPU

CPU

Intel Quad-Core Processor J4125 (up to 2.7 GHz)

Chipset

Intel J4125

DDR Type

DDR4 SO-DIMM

RAM Technology

DDR4 SO-DIMM (Dual Channel)

RAM Slots

2 x SODIMM

Maximum Memory

8GB

Multi-GPU Support

-

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard1 x Parallel1 x Serial: COM11 x D-Sub1 x HDMI1 x USB 2.03 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks

Internal I/O Connectors

1 x COM Port1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis Fan1 x 24 pin ATX1 x Front Audio2 x USB 2.01 x USB 3.2 Gen1

CPU Support

N/A (Integrated CPU)

Package Type

Retail

Package Weight

0.6790 kg

Graphics Ports

1 x VGA1 x HDMI

Additional Features

See Overview

Graphics

Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

1 x PCIe 2.0 x16

Memory Slots

2 Slots

CPU Compatibility

Intel Celeron J4125

M.2 Compatibility

No

USB C

No
