- Out of stock

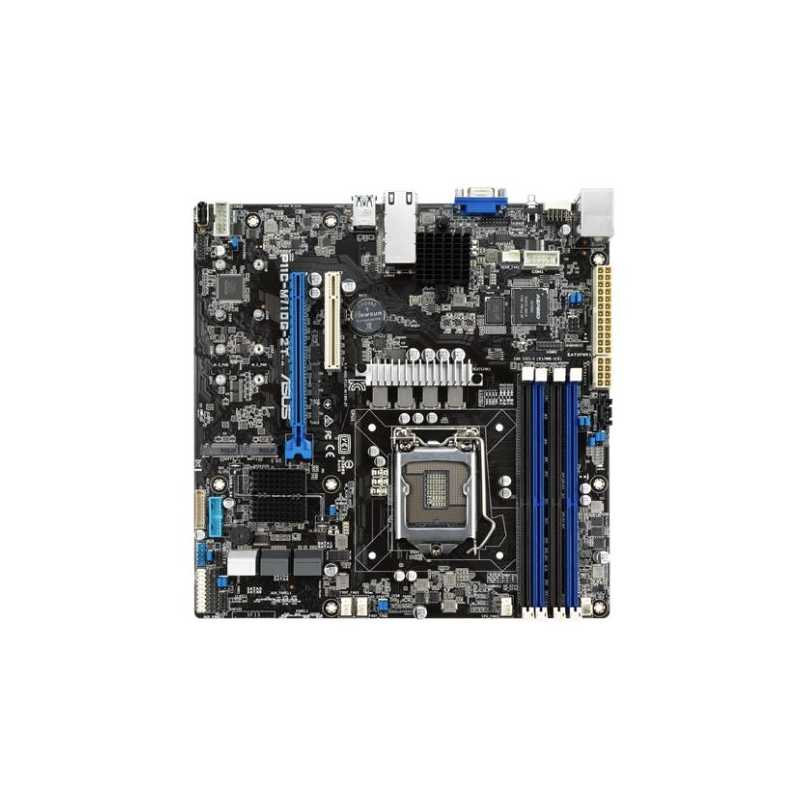

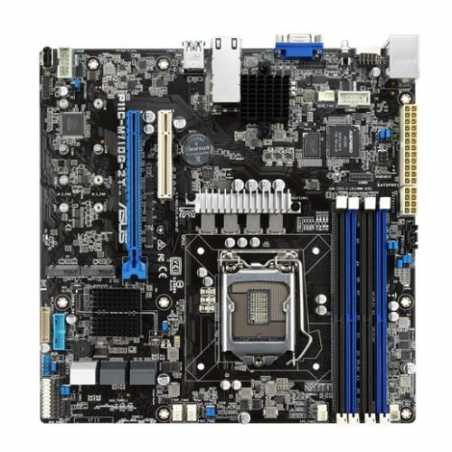

Asus P11C-M/10G-2T, Rack-Optimized Server MB, Intel C242, 1151, Intel Xeon E, Micro ATX, Dual 10G LAN, M.2, Server Management
£395.42
VAT included
Intel® Xeon® E micro-ATX server motherboard with rack-optimised design and high speed 10G networking
- Powered by the Intel® Xeon® E platform
- 95W CPU and up to 64GB memory support (4 DIMMs)
- Rack-optimised design maximises cooling for excellent thermal efficiency
- Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots
- Dual Intel® X550AT Gigabit Ethernet with teaming support
- Dual M.2 for up to 32Gbps performance and data redundancy
- TPM 2.0 Ready secures store keys, digital certificates, passwords and data
- Complete server management with ASUS Control Center
- Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics (not included)
Micro-ATX compact server board with multiple expandability options
P11C-M/10G-2T is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual server-class Intel® Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
The layout is rack-optimised placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
Dual M.2 for up to 32Gbps performance and data redundancy
P11C-M/10G-2T comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximising RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
NVMe high-speed storage interface
P11C-M/10G-2T adopts the first-to-market NVMe technology to reduce latency, lower power consumption and provides faster CPU to data storage performance to gain larger throughputs. By offering flexible NVMe upgrade package of switching storage interface including PCIe to U.2 add-on card or M.2 to U.2 adapter, P11C-M/10G-2T features shared common backplane to improve drive choices.
* ASUS PCIe to U.2 adapter requires mini-SAS HD to min-SAS HD cable or mini-SAS HD to SFF-8639 cable connectivity.
With built-in dual Intel® 10G Base-T networking, P11C-M/10G-2T increases data throughput and improves datacentre efficiency — and that means more environmentally-friendly operation. You're able to build high-density, high-bandwidth and low-latency access-layer networks for your datacentre on a board.
P11C-M/10G-2T supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
P11C-M/10G-2T features an optional embedded iKVM module and is bundled with ASUS Control Centre to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
High bandwidth networking
With built-in dual Intel® 10G Base-T networking, P11C-M/10G-2T increases data throughput and improves datacentre efficiency — and that means more environmentally-friendly operation. You're able to build high-density, high-bandwidth and low-latency access-layer networks for your datacentre on a board.
TPM-M 2.0 ready
P11C-M/10G-2T supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
Comprehensive IT infrastructure management
P11C-M/10G-2T features an optional embedded iKVM module and is bundled with ASUS Control Centre to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers - not included.
ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
With its power button located on the front I/O panel, P11C-M/10G-2T is designed to provide easier maintenance and deployment for diverse applications.
P11C-M/10G-2T provides instant system information during initialisation as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
Enhanced serviceability
With its power button located on the front I/O panel, P11C-M/10G-2T is designed to provide easier maintenance and deployment for diverse applications.
Quick initialisation guidance
P11C-M/10G-2T provides instant system information during initialisation as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool connector
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
90SB07J0-M0UAY0
Data sheet
- .
- 2 x M.21 x Onboard header for optional management card
- Wireless
- -
- RAM Speeds
- 2666/2400 UDIMM non ECC and with ECCMemory Size :
- Accessories
- 1 x Support CD1 x I/O shield6 x SATA 6G cables1 x Plate for LGA1151
- USB Ports Supported
- 2 x USB 3.1 Gen2 Type-A (at back)4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)2 x USB 2.0 ports (at mid-board)1 x USB 3.0 front connector (Type-A)
- Storage
- 6 x SATA III2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- Micro ATX
- Socket
- Intel 1151 - Coffee Lake
- Chipset
- Intel C242
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- -
- LAN
- Dual 10G LAN & Mgmt LAN Port
- Back Panel I/O Ports
- 1 x External Serial Port2 x USB 3.1 Gen 22 x USB 3.1 Gen 11 x VGA2 x 10GbE LAN + 1 x Mgmt LAN
- Internal I/O Connectors
- 1 x TPM1 x PSU Power1 x COM port1 x USB 3.0 pin1 x USB 2.0 pin1 x USB connector5 x Fan1 x SMBus1 x Chassis Intruder4 x Front LAN LED1 x Serial Port1 x VGA
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.0000 kg
- Graphics Ports
- 1 x VGA
- Additional Features
- See Overview
- Graphics
- Aspeed AST2500 with 32MB VRAM
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- 10GB LAN
- PCI/PCI Express
- Location 6: PCIe x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupiedLocation 7: PCI-E x8 (Gen3 X8 Link)
