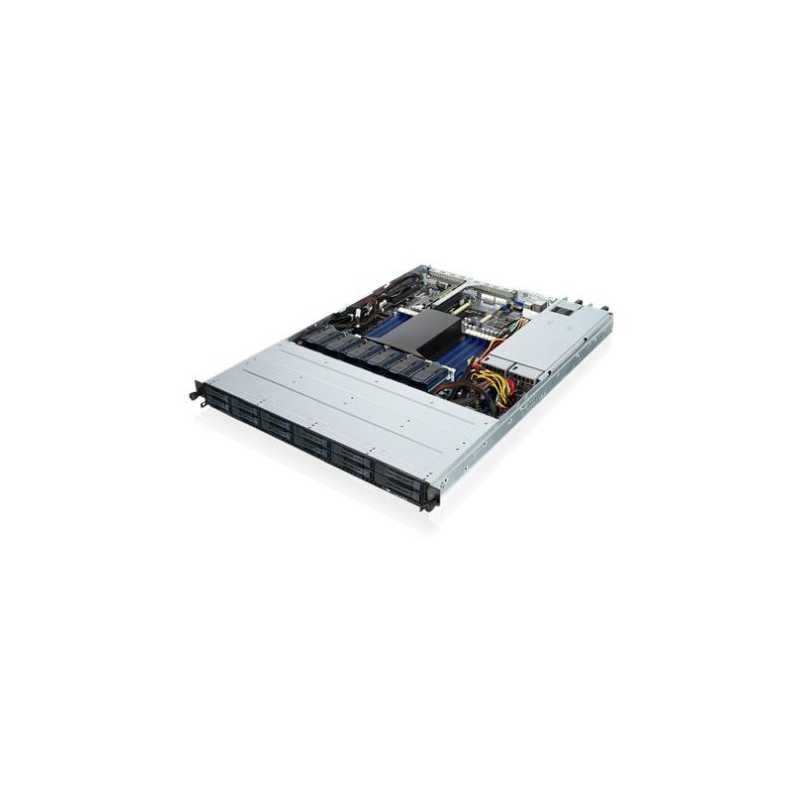

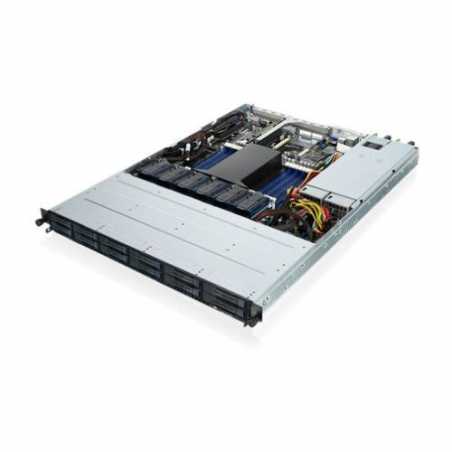

Asus (RS500A-E10-RS12U(12NVME)) 1U AMD EPYC 7002 Compact Server Barebone, 16x DDR4, Supports 12x NVMe, OCP 2.0 Mezzanine Connect
£1,831.50
VAT included
AMD EPYC™ 7002 compact 1U server with support for up to 12 SATA & SAS, 16 DIMMs, 2 PCIe 4.0, dual LAN, redundant power supplies, OCP 2.0 Mezzanine card and ASUS Control Centre
- Powered by AMD EPYC™ 7002 Series Processors with enhanced I/O, memory and security
- Supports up to 16 DIMMs for up to 2 TB of memory
- Flexible storage design with up to twelve 2.5-inch hot-swap SATA,SAS and NVME drives and one M.2 22110 SSDs
- Redundant 650W 80 Plus Platinum power supplies for high power efficiency
- Supports up to 225W TDP
- Features two PCI 4.0 lanes with 16 GT/s for next-gen connectivity
- Dual onboard LAN for improved data throughput and efficiency, plus one optional OCP 2.0 mezzanine card supporting up to 100G or higher ultrafast speed for HPC
- Complete IT infrastructure management with ASMB9 out-of-band remote management and ASUS Control Centre for in-band management
- Features ASUS-exclusive Thermal Radar 2.0 technology that automatically adjusts fan curves across various zones
90SF00X1-M00080
Data sheet
- Storage
- SATA Controller:CPU IntegratedOptional kits Controller (not included):ASUS PIKE II 3008 8-port SAS HBA cardASUS PIKE II 3108 8-port SAS HW RAID card
- Memory
- 16 Slots (8-channel)Maximum up to 2048GB LRDIMMDDR4 3200/2933/2666 RDIMMDDR4 3200/2933/2666 LRDIMMDDR4 3200/2933/2666 LR-DIMM 3DS
- Warranty
- 3 Year Advanced Replacement
- Form Factor
- 1U
- Maximum Memory
- 2048 GB
- CPU Support
- AMD EPYC 70002 SeriesSystem on Chip (SoC)Click here for CPU support list
- Package Weight
- 0.0000 kg
- Additional Features
- See Overview
- Power Supply
- 1+1 Redundant 650W 80 PLUS Platinum
- Networking
- 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
- Graphics
- Aspeed AST2500 with 64MB VRAM
- Expansion Slots
- 1 x PCIe 4.0 x16 slot (Gen 4 x16 link), LF1 x OCP 2.0 Mezzanine Conn.(Gen4 x16 link)
- Environment
- Operating temperature: 10°C – 35°CNon operating temperature: -40°C – 70°CNon operating humidity: 20% – 90% (Non condensing)
- Dimensions/Weight
- 11 kg1U
- No. LAN Ports
- 2
- Max LAN Speed
- GB LAN
- CPU Socket
- AMD SP3
- HDD Bays
- 12 x 2.5” hot-swap storage baysSupports 12 x 2.5" NVMe/SATA/SAS Devices
- Front I/O Ports
- 2 x USB 3.01 x VGA
- Rear I/O Ports
- 2 x USB 3.01 x VGA2 x RJ-45 1GbE LAN1 x RJ-45 Management LAN1 x COM port
- Switch/LED
- Rear:1 x Power Switch/LED1 x Q-Code/Port 80 LED1 x Location LEDFront:1 x Power Switch/LED1 x Message LED1 x Location LED4 x LAN LED(LED1~2 for on-board LAN, 3~4 for OCP LAN)
- Management Solution
- ASUS Control CenterASMB9-iKVM for KVM-over-IP
- Regulatory Compliance
- CE, FCC(Class A)
- No. of CPU Sockets
- Single Socket
- Memory Slots
- 16 Memory Slots
