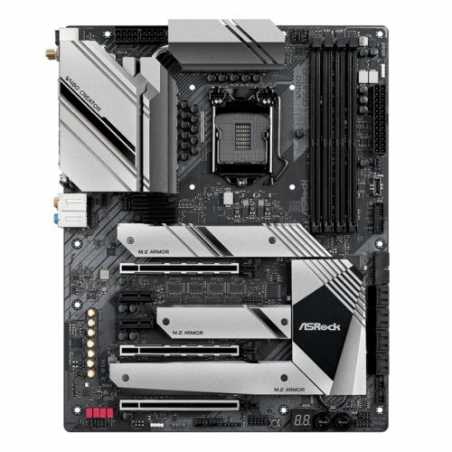

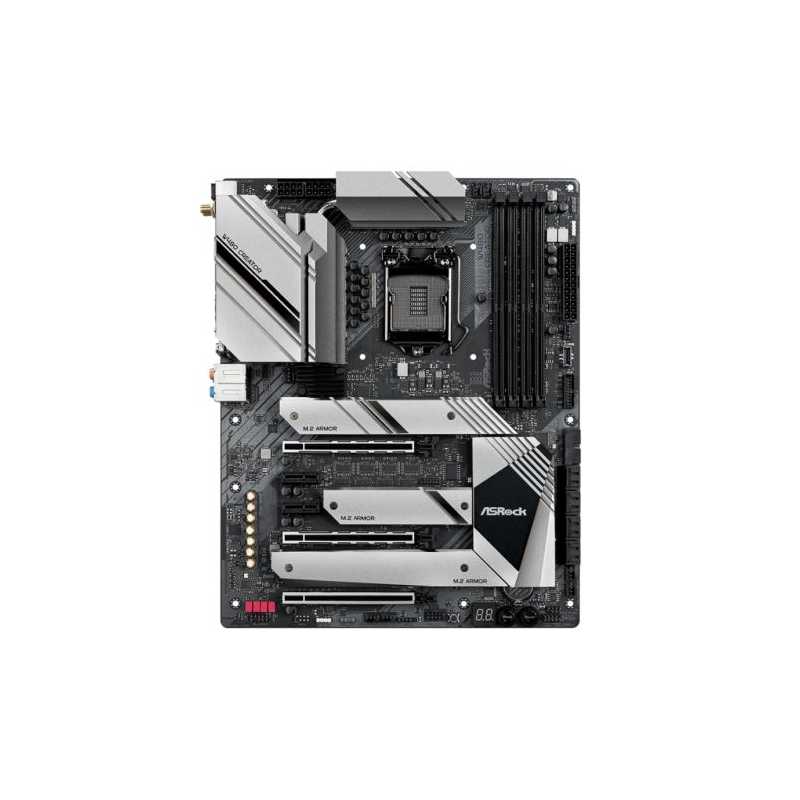

Asrock W480 CREATOR, Intel W480, 1200 (Xeon W CPUs), ATX, HDMI, XFire, GB & 2.5G LAN, Thunderbolt3, AX Wi-Fi, 10GB & 2.5GB LAN,

Data sheet

.

2 x USB 3.2 Gen11 x Clear CMOS Button1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Front Panel Type C USB 3.2 Gen2 Header

Wireless

Intel 802.11ax WiFi ModuleSupports IEEE 802.11a/b/g/n/axSupports Dual-Band (2.4/5 GHz)Supports WiFi6 802.11ax (2.4Gbps)2 antennasSupports Bluetooth 5.1Supports MU-MIMO

RAM Speeds

600+(OC)* / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Accessories

4 x SATA Data Cables1 x ASRock WiFi 2.4/5 GHz Antenna3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets

USB Ports Supported

2 x USB 3.2 Gen2 Thunderbolt3 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)1 x USB 2.0 (at mid-board)1 x Front Panel Type C USB 3.2 Gen2 Header

Storage

8 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - SATA & PCIe1 x M.2 (2260/2280/22110) - SATA & PCIe

RAID

RAID 0, 1, 5, 10, Intel Rapid Storage Tech 17

Warranty

3 Year Replacement Warranty

Motherboard Type

Server / Workstation

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel W480

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports AMD Quad CrossFireX

LAN

10GB LAN & 2.5GB LAN

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Back Panel I/O Ports

2 x Antenna1 x HDMI1 x Optical SPDIF Out2 x USB 3.2 Gen2 Thunderbolt 3 Type-C2 x Mini DisplayPort Input3 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C1 x USB 3.2 Gen13 x USB 3.2 Gen12 x RJ-45 LAN1 x Clear CMOS Button1 x BIOS Flashback ButtonHD Audio Jacks

Internal I/O Connectors

1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan6 x Chassis/Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 2.0

CPU Support

Supports 10th Gen and future generation Intel Core ProcessorsSupports Xeon W Processors (WE3/WE2/WE1), up to 10 Cores and 125WClick here for CPU support list

Package Type

Retail

Package Weight

2.4800 kg

Graphics Ports

1 x HDMI

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

2 x LAN

Max LAN Speed

10GB LAN

PCI/PCI Express

3 x PCIe 3.0 x16 2 x PCIe 2.0 x1

Wi-Fi

Yes (Wi-Fi)

Specific References

EAN13

4710483931543
