- Out of stock

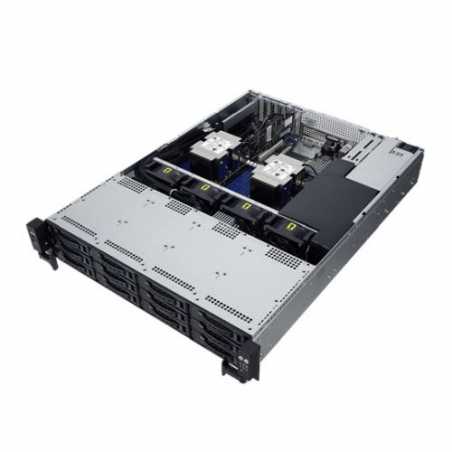

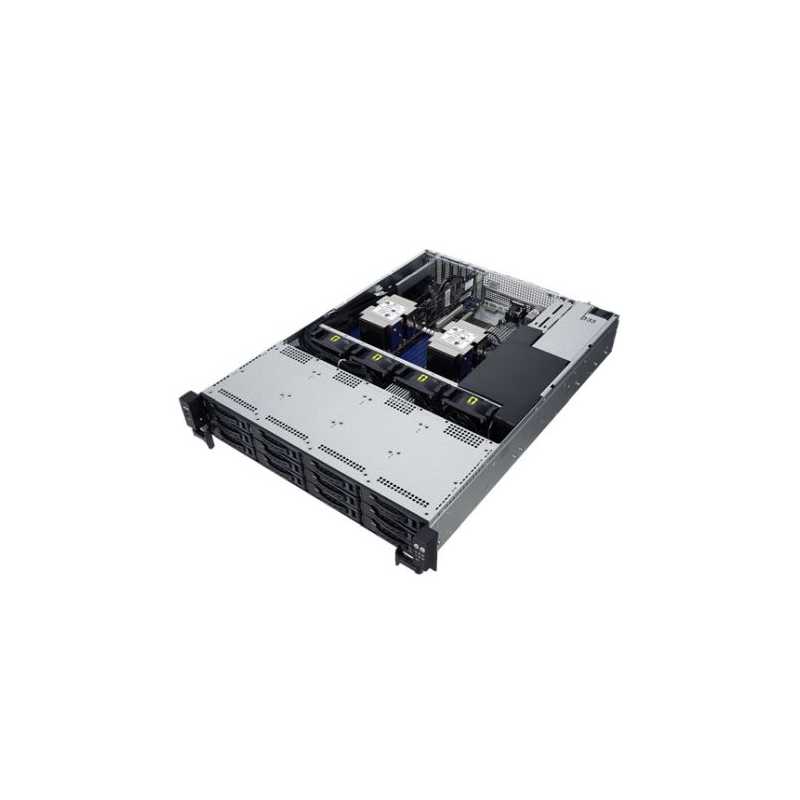

Asus (RS520-E9-RS12-E) 2U Rack-Optimised Barebone Server, Intel C621, Dual Socket 3647, 16x DDR4, 12 Bay Hot-Swap, OCP 2.0 Mezza
£1,905.99
VAT included
Scalable, High Performance 2U Server
- Intel®Xeon® Scalable Platform with Industry-leading 2TB memory capability
- 12 x 3.5” Hot-Swap HDD Bays (4x NVMe Supported)
- Comprehensive IT infrastructure management solution - ASMB9-iKVM and ASUS Control Center (ACC)
- Thermal Radar and Auto Fan Control
- Rack-optimised Design
- 6PCIe + 1 OCP Expansion Slots in 2U
- Dual M.2 Support
- OCP 2.0 Mezzanine
Industry-leading memory capability
With 16 RAM slots that support up to 2TB of fast, DDR4-2666MHz 3DS ECC RDIMMs or LRDIMMs, ASUS RS520-E9-RS12-E delivers industry-leading memory capability for your business.
The best storage interface combination for software-defined storage management
12 x 3.5" / 2.5’’ hot-swap storage bays (supports 4 x 2.5’’ NVMe or SAS or SATA devices)
Optimised storage with hot-swap bays and dual M.2
ASUS RS520-E9-RS12-E features two additional 2.5" hot-swap storage bays on its back panel and dual onboard M.2 slots that can be used for the main system disk as well as for memory caching. The dual M.2 SSDs can be configured as PCI-E RAID with Intel® VROC to speed up storage caching.
Intel® Xeon® Scalable Platform design
ASUS RS520-E9-RS12-E is built on the Intel® Xeon® Scalable Platform to deliver incredible performance and features 16 DIMM slots that provide best-in-class memory capacity and bandwidth. Intel® Xeon® Scalable processors offer higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel® Xeon® Scalable platform also delivers better virtualisation performance, enabling 4.2X more virtual machines (VMs) per system.
Smart thermal design for energy efficiency
ASUS RS520-E9-RS12-E features a smart Thermal Radar and Auto Fan Control design with more ambient thermal sensors for the CPU, memory, GPU and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency.
Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fans control, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC
Rack-optimised thermal performance
With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, ASUS RS520-E9-RS12-E is optimised for rack placement.
Flexibility to grow with your business
ASUS RS520-E9-RS12-E comes with a wide range of ports to provide a flexible and cost-effective computing environment with the ability to grow together with your business. RS520-E9-RS12-E features:
A rack-optimised design
- 12 x 3.5” Hot-swap HDD bays (4x NVMe Supported)
- 6 PCIe + 1 OCP expansion slots in a 2U rack unit
- OCP 2.0 Mezzanine
- Dual M.2 support
90SF0051-M00380
Data sheet
- .
- Optional kits Controller (not included):ASUS PIKE II 3008 8-port SAS HBA cardASUS PIKE II 3108 8-port SAS HW RAID card12G SAS Support
- Storage
- 11 x SATA3 (8 by 2 Mini-SAS Connector)2 x M.2 (2280/2260/2242) - SATA & PCIeIntel Rapid Storage Tech Enterprise(RSTe) (Linux/Windows)Software RAID 0, 1, 5, 10IntelVROC (Linux/Windows)Software RAID
- Memory
- 16 slots (6-channel per CPU, 8 DIMM per CPU)Max up to 512GB RDIMMMax up to 1024GB LRDIMMMax up to 2048GB LR-DIMM 3DSDDR4 2933/2666Takes:32GB, 16GB, 8GB, 4GB RDIMM64GB, 32GB LRDIMM128GB, 64GB LR-DIMM 3DS
- Warranty
- 3 Year Advanced Replacement
- Form Factor
- 2U
- Chipset
- Intel C621
- Maximum Memory
- 2048 GB
- CPU Support
- 2 x Socket1st and 2nd Gen Xeon Scalable CPUs (150W)Click here for CPU support list
- Package Weight
- 0.0000 kg
- Additional Features
- See Overview
- Power Supply
- 1+1 Redundant 800W 80 PLUS Platinum Power SupplyRating: 100-127/200-240 Vac, 9.4 A/4.72 A, 47-63 Hz, Class I
- Networking
- 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
- Graphics
- Aspeed AST2500 with 64MB VRAM
- Expansion Slots
- 2 x PCI-E x16 (Gen3 x16 link), LP, HL4 x PCI-E x8 (Gen3 x8 link), LP, HL1 x OCP 2.0 Mezzanine (Gen3 x16 link)
- Environment
- Operation temperature: 10°C ~ 35°CNon operation temperature: -40°C ~ 60°CNon operation humidity: 20% ~ 90% ( Non condensing)
- Dimensions/Weight
- 615 x 444 x 88 mm24.55 Kg
- No. LAN Ports
- 2
- Max LAN Speed
- GB LAN
- CPU Socket
- Intel 3647
- HDD Bays
- 12 x 2.5" or 3.5" Hot-swap Bays (4 x NVMe Supported)2 x 2.5" Hot-Swap Bays (Rear) (SATA HDD/SSD Only)2 x M.2 (2280, 2260, 2242) (SATA/PCIe M.2,SATA/PCIe RAID)
- Front I/O Ports
- 2 x USB 2.0
- Rear I/O Ports
- 2 x USB 3.01 x VGA2 x RJ-45 GbE LAN1 x RJ-45 Mgmt LAN
- Switch/LED
- Rear Switch/LED:1 x Q-Code/Port 80 LED1 x Power switchFront Switch/LED:1 x Power switch/LED1 x Location switch/LED1 x Reset switch1 x HDD Access LED1 x Message LEDLAN 1-4 LED*LAN3-4 for Mezzazine card use
- OS Support
- Windows Server 2019Windows Server 2016Windows Server 2012 R2RedHat Enterprise LinuxSuSE Linux Enterprise ServerCentOSUbuntuVMwareCitrix XenServerFedora
- Management Solution
- ASUS Control Center(Classic)On-Board ASMB9-iKVM for KVM-over-IP
- Regulatory Compliance
- BSMI, CE, RCM, FCC(Class A)
- No. of CPU Sockets
- Dual Socket
- Memory Slots
- 16 Memory Slots
Specific References
- EAN13
- 4712900934526
