- Out of stock

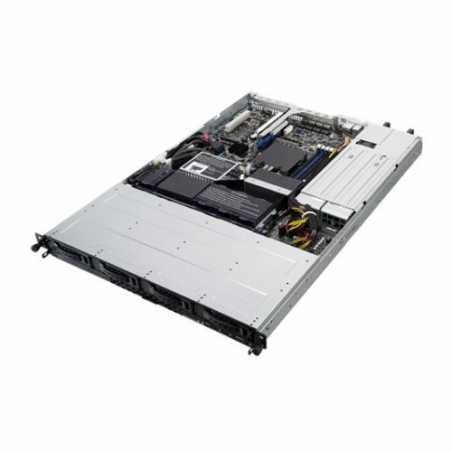

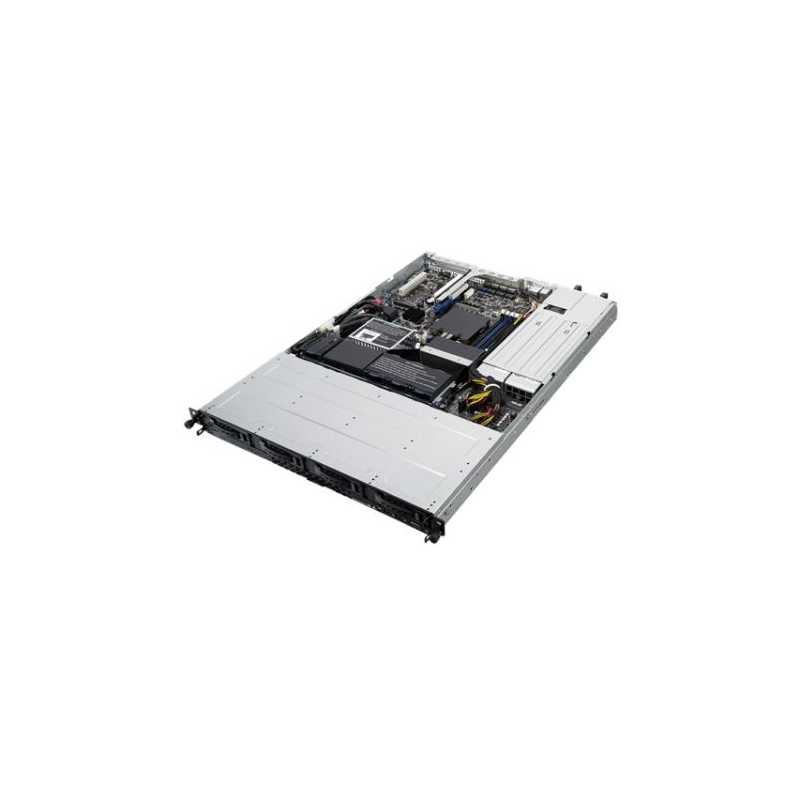

Asus (RS300-E9-RS4) 1U Rack Barebone Server for Xeon E3-1200, Intel C232, S 1151, 4x DDR4, 4 Bay Hot-Swap, 2x M.2, Quad GB LAN,
£972.78
VAT included
Flagship Model with Versatile Expandability
- Platinum power efficiency with up to 94.4%
- Optimized thermal design for heat sink and heat pipe
- Advanced storage support with dual M.2
- Quad Intel I210 Server Class GbE delivering high networking bandwidth
Extreme expandability in 1U
RS300-E9-RS4 has high expandability with 2expansion slots in a configuration. This flexible expansion offers diverse applications in storage and networking to meeting the demands of future expansion.
ASUS PIKE II & 12G SAS support
ASUS PIKE II (optional)offers the latest 12Gb/s SAS together with PCI-E 3.0 solution. While ASUS latest 12Gb/s SAS doubles the data rate running at twice the speed of the previous generation, PCI-E 3.0 offers high reliability and faster speed connection. ASUS PIKE II meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection.
Versatile storage capability
RS300-E9-RS4 is the perfect choice for an operating system or application drive, making the server work as fast as possible. ASUS further furnishes several choices for OS drive placement, such as M.2 (dual, up to 512GB x 2), SSDcage and SATA DOM. For disk storage, it can offer four 3.5” hot-swap disk bay and two internal 2.5” SSD bay (optional).
High networking connection
RS300-E9-RS4 with quad server-class Intel® LAN controllers, which doubles queues compared to previous-generation.This is better for virtualization applications. In addition, the quad LAN teaming quadruples the network bandwidth and the failover function ensures uninterrupted network connections.
Best-in-class power efficiency and stability
RS300-E9-RS4 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. The ASUS exclusive material, which can be used 136.9 years ultra longevity at 65°C. With Beat Thermal Choke III, it takes 3°C lower choke temperatures and reduces power consumption.
Comprehensive remote management
ASUS presents the most complete remote server control, including out of band ASMB8-iKVM (not included) and in-band Asus Control Center. Out-of-band ASMB8-iKVM offers LAN management, while in-band Asus Control Center provides “one on many” usage. IT professionals don’t have to check servers one by one, but instead can use Asus Control Center to monitor the status of all servers from a friendly graphical user interface.
90SV03BA-M39CE0
Data sheet
- .
- *1 4 by miniSAS HD + 2 x SATA*2 PCIE or SATA signal, gray SATA port will disable when M.2 is occupied
- Storage
- 6 x SATA3 6Gb/s *12 x M.2 (2280/2260/2242) - SATA & PCIe *2Rapid Storage Tech Enterprise(RSTe) (Linux/Windows)Software RAID 0, 1, 5, 10
- Memory
- 4 slots(2-channel)Maximum up to 64GB UDIMMDDR4 2400 /2133 UDIMM non ECC and with ECCTakes 16GB, 8GB, 4GB UDIMM modules
- Warranty
- 3 Year Advanced Replacement
- Form Factor
- 1U
- Chipset
- Intel C232
- Maximum Memory
- 64 GB
- CPU Support
- 1 x Socket LGA1151Xeon E3-1200 v6 familyXeon E3-1200 v5 familyIntel Core i3 CPUsIntel Pentium CPUsIntel Celeron CPUsClick here for CPU support list
- Package Weight
- 0.0000 kg
- Additional Features
- See Overview
- Power Supply
- 1+1 Redundant 450W 80 PLUS Gold Power SupplyRating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1
- Networking
- 4 x Intel I210AT + 1 x Mgmt LAN
- Graphics
- Aspeed AST2400 with 32MB VRAM
- Expansion Slots
- 1 x PCI-E x16 (x8 Gen3 Link)1 x PCI-E x8 (x8 Gen3 Link)
- Environment
- Operating temperature: 10°C ~ 35°CNon operating temperature: -40°C ~ 70°CNon operating humidity: 20% ~ 90% ( Non condensing)
- Dimensions/Weight
- 615 x 444 x 44 mm10.64 Kg
- No. LAN Ports
- 4
- Max LAN Speed
- GB LAN
- CPU Socket
- Intel 1151 - Sky Lake / Kaby Lake
- HDD Bays
- 4 x 3.5” Hot-Swap HDD Bays2 x SSD Internal SSD Bays2 x M.2 (NGFF 2280/2260/2242)
- Front I/O Ports
- 2 x USB 3.01 x VGA
- Rear I/O Ports
- 4 x RJ-452 x USB 3.02 x USB 2.01 x VGA1 x PS/2 KB/MS1 x RJ-45 (One for ASMB8-iKVM) - not included
- Switch/LED
- Rear Switch/LED:1 x Q-Code/Port 80 LED1 x Power switchFront Switch/LED:1 x Power switch/LED1 x Location switch/LED1 x Reset switch1 x HDD Access LED1 x Message LEDLAN 1-4 LED
- OS Support
- Windows Server 2016Windows Server 2012 R2Windows Server 2012RedHat Enterprise LinuxSuSE Linux Enterprise ServerCentOSCitrix XenServer
- Management Solution
- ASUS Control Center Enterprise - not includedOptional ASMB8-iKVM for KVM-over-IP
- Regulatory Compliance
- BSMI, CE, RCM, FCC(Class A)
- Auxiliary Storage FDD/CD/DVD
- 1 x Slim-type Optical Drive BayOptions: No Device / DVD-RW / DVD ROM
- No. of CPU Sockets
- Single Socket
- Memory Slots
- 4 Memory Slots
Specific References
- EAN13
- 4712900846645
