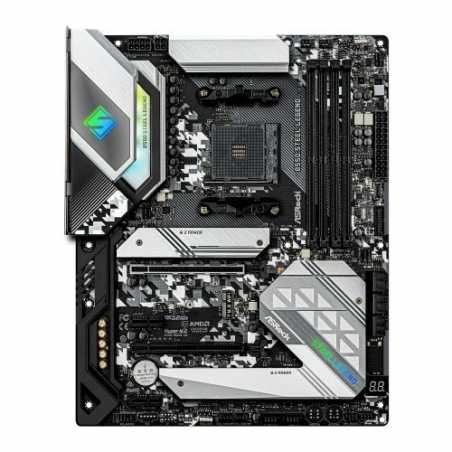

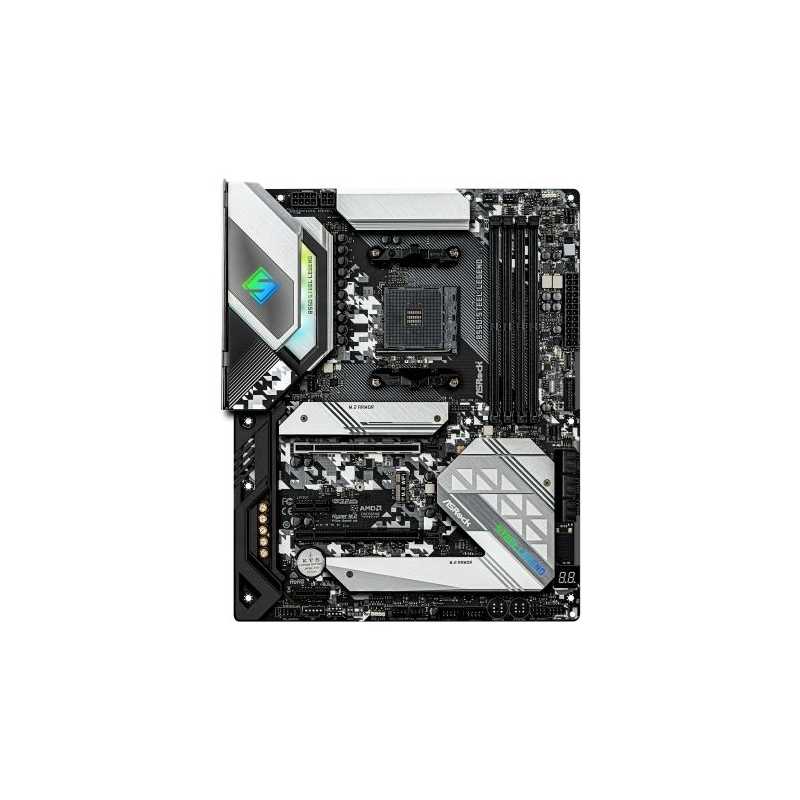

Asrock B550 STEEL LEGEND, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, PCIe4, RGB Lighting, M.2
£132.25
VAT included
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 14 Power Phase Design, Digi Power, Dr. MOS
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
- Dragon 2.5G LAN
B550 STEEL LEGEND
Data sheet
- .
- 1 x USB 3.2 Gen11 x Dr. Debug with LED1 x Front Panel Type C USB 3.2 Gen1 Header
- PCI Express
- 2 x PCIe 3.0 x12 x PCIe 4.0 x16
- Wireless
- -
- RAM Speeds
- 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Accessories
- 2 x SATA Data Cables3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets
- USB Ports Supported
- 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x Front Panel Type-C USB 3.2 Gen1 Header
- Storage
- 6 x SATA III1 x M.2 (2230/2242/2260/2280) - PCIe1 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM4
- Chipset
- AMD B550
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX and CrossFireX
- LAN
- 2.5GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.41 x Optical SPDIF Out1 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen14 x USB 2.01 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan5 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Audio2 x USB 2.0
- CPU Support
- Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- Package Type
- Retail
- Package Weight
- 2.3700 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics Processor*Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 2 x PCIe 3.0 x12 x PCIe 4.0 x16
