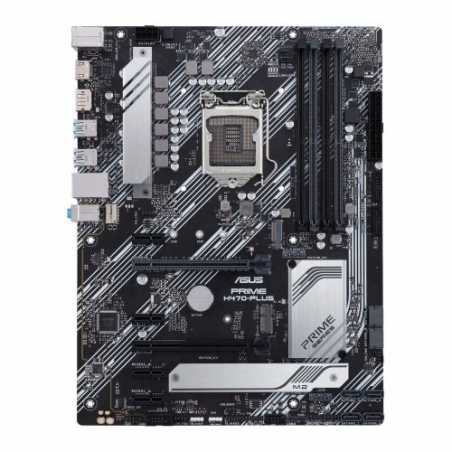

Asus PRIME H470-PLUS, Intel H470, 1200, ATX, 4 DDR4, XFire, HDMI, DP, RGB Lighting, M.2

Data sheet

.

1 x Thunderbolt1 x 24-pin EATX1 x 8-pin EATX 12V1 x Front audio1 x Clear CMOS jumper1 x System panel1 x COM port

PCI Express

1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x4 mode)4 x PCIe 3.0 x1

RAM Speeds

2933/2800/2666/2400/2133 MHz

Accessories

I/O Shield2 x SATA 6Gb/s cable1 x M.2 SSD screw package1 x M.2 Key E screw package1 x M.2 Rubber Package

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)7 x USB 2.0 (4 at back, 3 at mid-board)

Storage

6 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel H470

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

LAN

GB LAN

Audio

Realtek ALC887 8-channel high definition audio CODEC

Back Panel I/O Ports

1 x PS/2 keyboard/mouse combo1 x DisplayPort1 x HDMI1 x LAN (RJ45)2 x USB 3.2 Gen22 x USB 3.2 Gen14 x USB 2.03 x Audio jacks

Internal I/O Connectors

1 x CPU Fan3 x Chassis Fan1 x AIO_PUMP1 x Aura RGB Strip1 x Addressable Gen22 x USB 3.2 Gen12 x USB 2.02 x M.2 Socket 3 with M key1 x M.2 with E key for Wi-Fi module1 x SPI TPM6 x SATA 6Gb/s1 x S/PDIF out

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics
