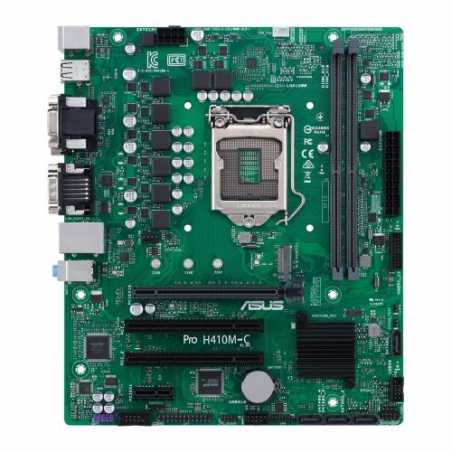

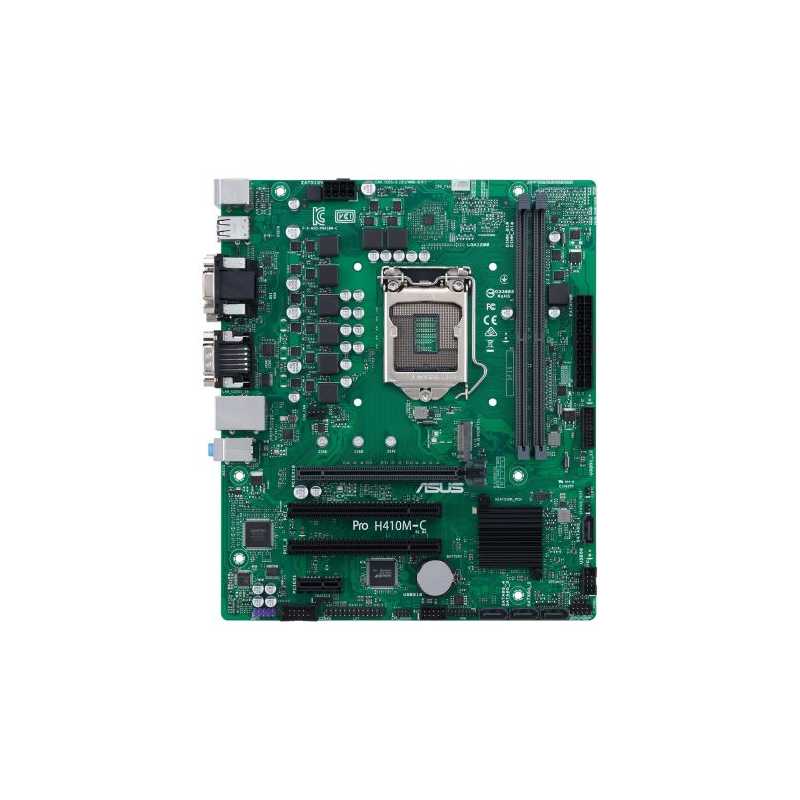

Asus PRO H410M-C/CSM - Corporate Stable Model, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, COM Port, LPC Header, M.2

Data sheet

.

1 x Internal speaker1 x System panel1 x Chassis Intrusion1 x Clear CMOS jumper1 x LPC Debug header

PCI Express

16-Lane CPU:1 x PCIe 3.0/2.0 x16 (x16 mode))Intel B460 Chipset:1 x PCIe 3.0/2.0 x12 x PCI

Wireless

-

RAM Speeds

2933/2800/2666/2400/2133 MHz

Accessories

1 x ACC Express Activation Key CardI/O Shield2 x SATA 6Gb/s cables1 x M.2 Screw Package1 x Supporting DVD

USB Ports Supported

4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)

Storage

4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

-

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel H410

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC

Back Panel I/O Ports

1 x PS/2 keyboard1 x PS/2 mouse1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45)2 x USB 3.2 Gen12 x USB 2.01 x COM port3 x Audio jacks

Internal I/O Connectors

1 x CPU Fan1 x Chassis Fan1 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 3 with M Key1 x SPI TPM1 x LPT1 x COM port4 x SATA 6Gb/s1 x 24-pin EATX1 x 8-pin ATX 12V1 x Front audio

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

0.8900 kg

Graphics Ports

1 x VGA1 x DVI-D1 x HDMI

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

16-Lane CPU:1 x PCIe 3.0/2.0 x16 (x16 mode))Intel B460 Chipset:1 x PCIe 3.0/2.0 x12 x PCI
