- Out of stock

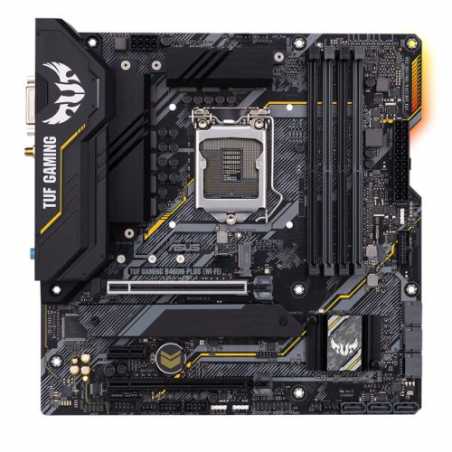

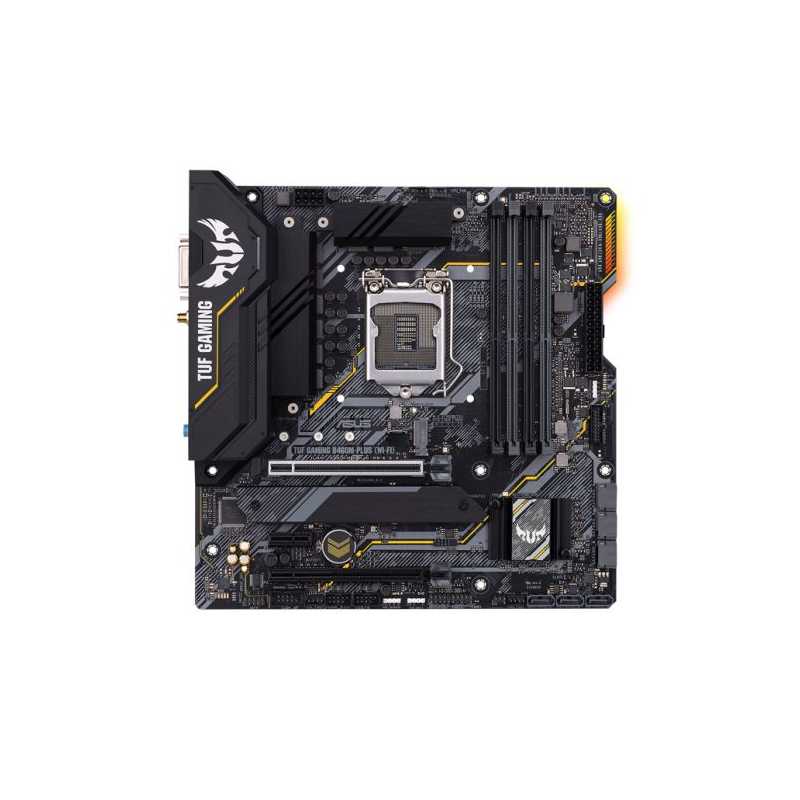

Asus TUF GAMING B460M-PLUS (WI-FI), Intel B460, 1200, Micro ATX, 4 DDR4, XFire, DVI, HDMI, DP, AX Wi-Fi, RGB Lighting, M.2
£127.41
VAT included
Intel® B460 (LGA 1200) micro ATX gaming motherboard with dual M.2, 8 power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink
- Made for online gaming: Intel® WiFi 6, Intel® Ethernet Connection I219-V, TUF LANGuard and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
90MB1440-M0EAY0
Data sheet
- .
- 1 x System panel1 x Clear CMOS jumper1 x COM port header
- PCI Express
- 1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
- Wireless
- Intel Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports bandwidth: HT20/HT40/HT80/HT160Supports PCIe interfaceBluetooth v5.1
- RAM Speeds
- 2933/2800/2666/2400/2133 MHz
- Accessories
- I/O Shield2 x SATA 6Gb/s cables1 x TUF Gaming Sticker1 x TUF Certification card1 x Wi-Fi moving antenna1 x M.2 SSD screw package1 x M.2 Rubber Package
- USB Ports Supported
- 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200
- Chipset
- Intel B460
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX Technology
- LAN
- GB LAN
- Audio
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo1 x DVI1 x DisplayPort1 x HDMI1 x LAN (RJ45)4 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jacks1 x ASUS Wi-Fi Module
- Internal I/O Connectors
- 1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan2 x Aura RGB Strip1 x Addressable Gen2 1 x USB 3.2 Gen12 x USB 2.02 x M.2 Socket 36 x SATA 6Gb/s1 x 24-pin EATX1 x 8-pin EATX 12V1 x Front audio
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.3600 kg
- Graphics Ports
- 1 x DVI-D1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
