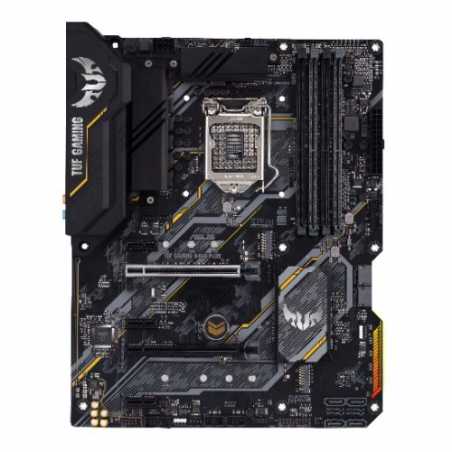

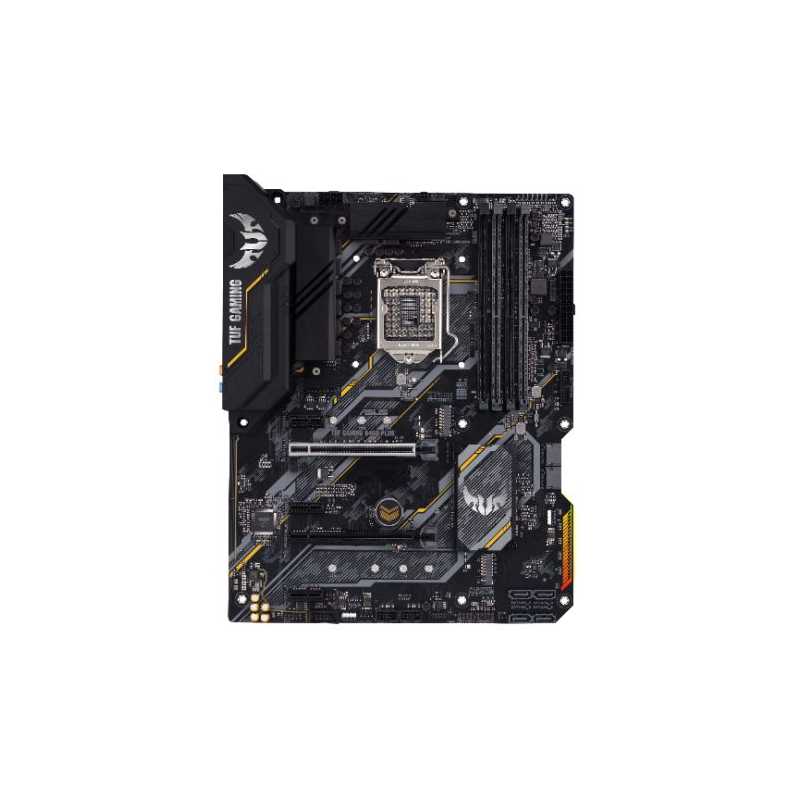

Intel® B460 (LGA 1200) ATX gaming motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting
Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
Made for online gaming: Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear.
1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x4 mode)3 x PCIe 3.0 x1
Wireless
-
RAM Speeds
2933/2800/2666/2400/2133 MHz
Accessories
I/O Shield2 x SATA 6Gb/s cables1 x TUF Gaming Sticker1 x TUF Certification card1 x M.2 SSD screw package
USB Ports Supported
8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)
Storage
6 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
RAID
RAID 0, 1, 5, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1200
Chipset
Intel B460
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
LAN
GB LAN
Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo1 x DisplayPort1 x HDMI1 x LAN (RJ45)6 x USB 3.2 Gen 1 Type-A6 x Audio jacks
Internal I/O Connectors
1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan1 x AIO_PUMP2 x Aura RGB Strip1 x USB 3.2 Gen12 x USB 2.02 x M.2 Socket 3 with M key6 x SATA 6Gb/s1 x 24-pin EATX1 x 8-pin EATX 12V1 x Front audio
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Supports Intel HD Graphics
Specific References
EAN13
4718017719735
