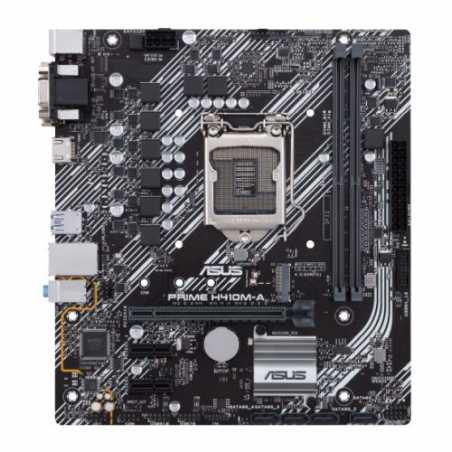

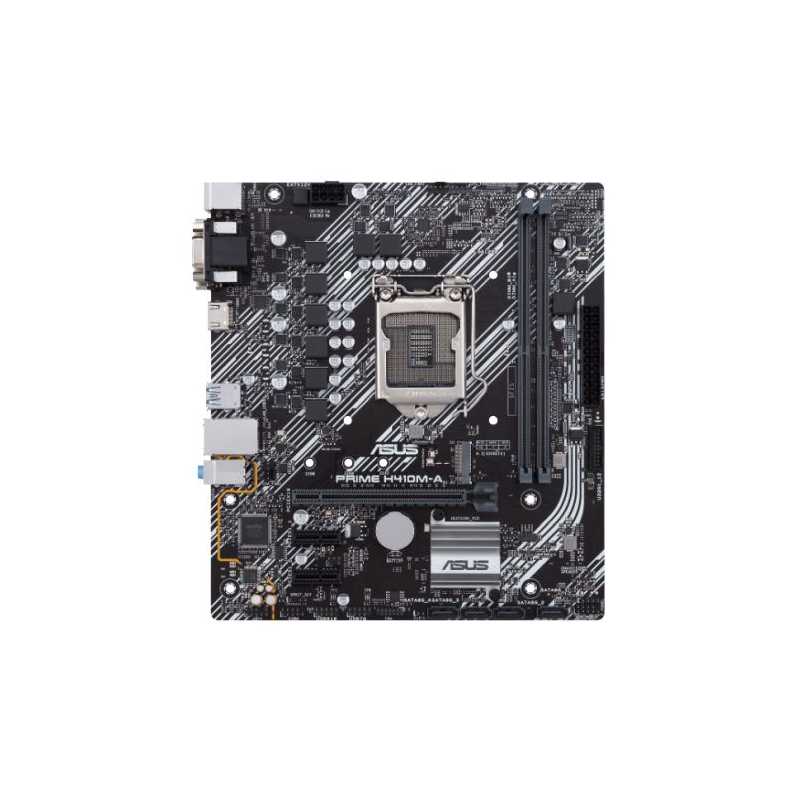

Asus PRIME H410M-A, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
£96.39
VAT included
Intel® H410 (LGA 1200) mic-ATX motherboard with M.2 support, DDR4 2933MHz, HDMI, D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, TPM header
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
90MB13G0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS jumper1 x System panel1 x Speaker
- PCI Express
- 1 x PCIe 3.0 x16 (x16 mode)2 x PCIe 3.0 x1
- Wireless
- -
- RAM Speeds
- 2933/2800/2666/2400/2133 MHz
- Accessories
- I/O Shield2 x SATA 6Gb/s cables1 x M.2 Anchor
- USB Ports Supported
- 4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200
- Chipset
- Intel H410
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard1 x PS/2 mouse1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45)2 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jacks
- Internal I/O Connectors
- 1 x CPU Fan2 x Chassis Fan1 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 3 with M Key1 x SPI TPM1 x COM port4 x SATA 6Gb/s1 x S/PDIF out1 x 24-pin EATX1 x 8-pin EATX 12V 1 x Front audio
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x DVI-D1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
Specific References
- EAN13
- 4718017715416
