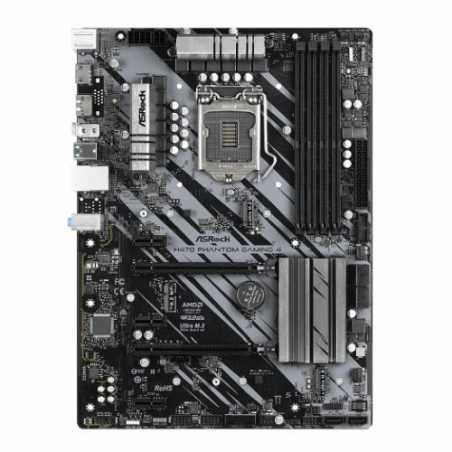

Asrock H470 PHANTOM GAMING 4, Intel H470, 1200, ATX, 4 DDR4, XFire, HDMI, DP, RGB Lighting, M.2
£104.84
VAT included
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- 10 Power Phase Design
- Supports DDR4 2933MHz
- 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options : HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.2 Gen2 (Type-A + Type-C)
- 6 USB 3.2 Gen1 (4 Front, 2 Rear)
- Intel® Gigabit LAN
- Polychrome SYNC
H470 PHANTOM GAMING 4
Data sheet
- .
- 2 x USB 2.02 x USB 3.2 Gen1
- PCI Express
- 2 x PCIe 3.0 x163 x PCIe 3.0 x1
- Wireless
- -
- RAM Speeds
- 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Accessories
- I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets
- USB Ports Supported
- 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2260/2280) - SATA & PCIe1 x M.2 (2260/2280/22110) - SATA & PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel H470
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX and CrossFireX
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Back Panel I/O Ports
- 1 x Antenna Bracket1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen12 x USB 2.01 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Audio1 x Thunderbolt AIC
- Package Type
- Retail
- Package Weight
- 1.3100 kg
- Graphics Ports
- 1 x HDMI 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 2 x PCIe 3.0 x163 x PCIe 3.0 x1
Specific References
- EAN13
- 4710483931253
