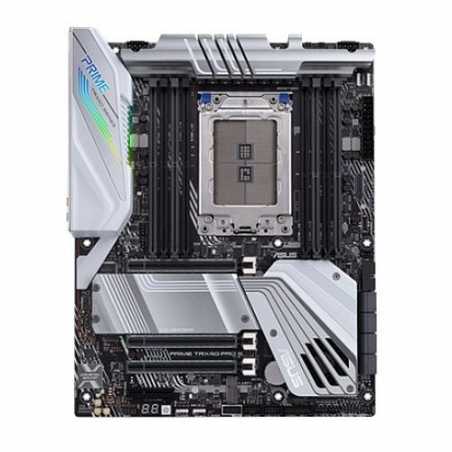

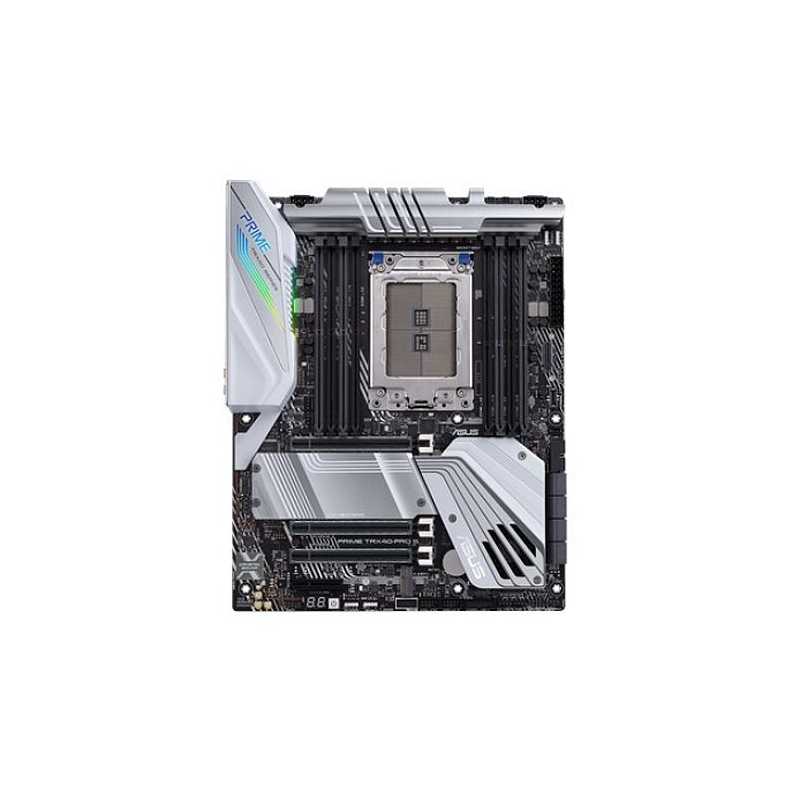

AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors (up to 64 cores) with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting
AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 cores)
Robust power design: 16 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers
Next-gen connectivity: Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector, and Intel Gigabit Ethernet
Intelligent tuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels
1 x W_PUMP+1 x 24-pin EATX2 x 8-pin ATX 12V1 x Front audio1 x System panel1 x Thermal sensor1 x Power-on button1 x Clear CMOS jumper1 x Node1 x USB 3.2 Gen 2 front panel connector
PCI Express
3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 (x4 mode)
1 x Vertical M.2 bracket set4 x SATA 6Gb/s cables2 x M.2 Screw Package1 x Q-Connector1 x Ext Cable for RGB strips (40 cm)1 x Ext cable for Addressable LED1 x CPU Fan Holder
USB Ports Supported
1 x USB 3.2 Gen 2 Type-C (at back)7 x USB 3.2 Gen 2 Type-A (at back)10 x USB 3.2 Gen 1 (6 at back, 4 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen 2 front panel connector
Storage
8 x SATA III2 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
1 x LAN (RJ45)4 x USB 3.2 Gen 26 x USB 3.2 Gen 11 x Optical S/PDIF out5 x Audio jacks1 x USB BIOS FlashBack Button
Internal I/O Connectors
1 x Q_Code2 x Aura RGB Strip2 x Addressable Gen 22 x USB 3.2 Gen 12 x USB 2.03 x M.2 Socket 3 with M key1 x M.2 with E key for Wi-Fi module8 x SATA 6Gb/s1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x AIO_PUMP
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
2.3500 kg
Graphics Ports
-
Additional Features
See Overview
Graphics
-
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 (x4 mode)
Specific References
EAN13
4718017660914
