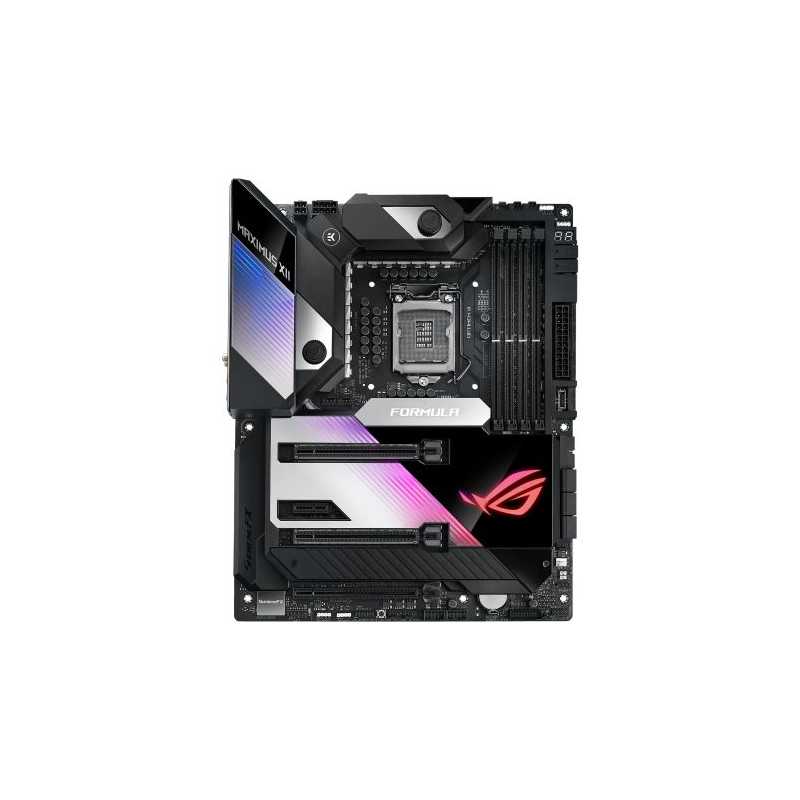

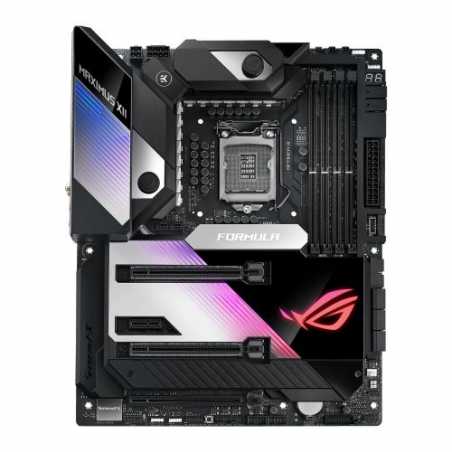

Asus ROG MAXIMUS XII FORMULA, Intel Z490, 1200, ATX, 4 DDR4, XFire/SLI, AX Wi-Fi, 10GB & 2.5GB LAN, M.2

Data sheet

.

1 x System panel1 x USB 3.2 Gen 2 front panel1 x Speaker1 x Start button1 x FlexKey button

PCI Express

Intel 10th Gen Processors2 x PCIe 3.0 x16 (x16 or dual x8)Intel Z490 Chipset1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1

Wireless

Intel Wi-Fi 6 AX2012x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports CNVI interfaceBluetooth v5.1

RAM Speeds

4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz

Accessories

Addressable LED extension cable1 x ROG logo plate sticker4 x SATA 6Gb/s cables2 x M.2 Screw Package1 x ROG big sticker1 x Q-Connector1 x Wi-Fi Antenna1 x Ext. Cable for RGB strips (40 cm)2 x ROG weave SATA 6G cable1 x ROG Thank you card1 ROG key chain

USB Ports Supported

4 x USB 3.2 Gen2 (3 Type-A & 1 Type-C at back)10 x USB 3.2 Gen1 (6 at back, 4 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen 2 front panel connector

Storage

6 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel Z490

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports NVIDIA 2-Way SLI TechnologySupports AMD 3-Way CrossFireX Technolog

LAN

10GB LAN & 2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220

Back Panel I/O Ports

1 x Intel I225-V 2.5Gb Ethernet1 x PS/2 keyboard/mouse combo4 x USB 3.2 Gen 26 x USB 3.2 Gen 11 x Optical S/PDIF out1 x Clear CMOS button1 x USB BIOS FlashBack Button1 x ASUS Wi-Fi Module5 x Gold-plated audio jacks1 x Aquantia AQC-107 10G LAN port

Internal I/O Connectors

1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x AIO_PUMP1 x H_AMP fan1 x W_PUMP+1 x W_IN2 x W_OUT3 x W_FLOW1 x AAFP2 x Aura RGB Strip2 x Addressable Gen 2

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

-

Additional Features

See Overview

Graphics

-
