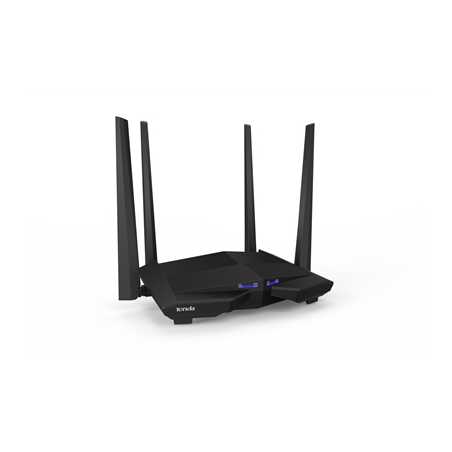

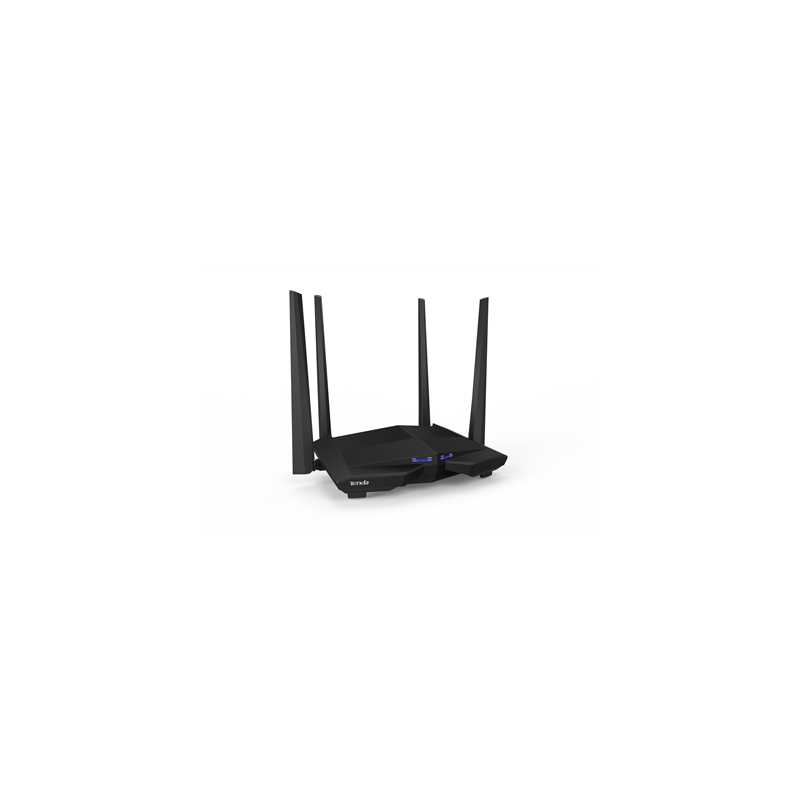

Tenda AC10U AC1200 Smart Dual-Band Gigabit WiFi Router

AC10U leads the way in next generation routers, offering dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 Wi-Fi. Its powerful 1GHz CPU and 128MB DDR3 provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps. With the USB port supported, you can make AC10U a sharing centre of your home.

With 1 GHz CPU made with 28 nm process, AC10U manifests excellent capacity on data processing and energy conservation.
It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.

Easy Storage and Printer Sharing
AC10U has multi-function USB interface, it supports sharing storage and printing server extensions and so on. You can share wonderful movies and photos in the storage once connect the hard disk, AC10U makes sharing happiness with families and friends so easy.

Gigabit Performance
AC10U is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.

Strong dual band WiFi signal for multi-wall penetration
With the new generation 802.11ac wave 2.0 standard, AC10U offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC10U outstanding behind multiple walls.

MU-MIMO Technology
With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard, AC10U can communicate with multiple devices at a time, shortening latency and increasing the number of devices you can connect.

Strong Signal Performance
Four clean-cut antennas for stronger WiFi signal and wider WiFi coverage

Specifications

Interface
1*USB 2.0
3*GE LAN Ports
1*GE WAN Port

Buttons
1*WiFi On/Off button
1*Reset/WPS button

Power Supply
Power Input: 100-240V50/60Hz
Power Output: DC 12V==2A

Dimensions
Package Box: 390*198*70mm(L*W*H)
Device: 220*141.5*49mm(L*W*H)

Weight
Gross Weight: 810g
Net Weight: 350g

Antenna
4*5dBi External Dual Band Antennas

LED
1*WAN?1*LAN?1*Wi-Fi/WPS?1*SYS

Standards and Protocols
Wireless Standards:IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u

Frequency
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Transmission Power
<20dBm (2.4G)
<23dBm (5G)

Wireless Security
WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption

WAN Connection Type
Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration

Operation Modes
Router/AP/Universal Repeater/WISP

Management
Local Management
Remote Management
Tenda APP

Basic Functions
MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment

Virtual Server
UPnP
DMZ
Port Forwarding

DHCP
DHCP Server and Client
DHCP Client List
DHCP Address Reservation

DDNS
DynDns, NO-IP, Oray.com, 3322.org, 88ip

VPN
PPTP Client
PPTP Server
L2TP Client

Firewall
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through

Features
Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off

Other
FTP/Samba
Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online

Packaging Contents
AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide
