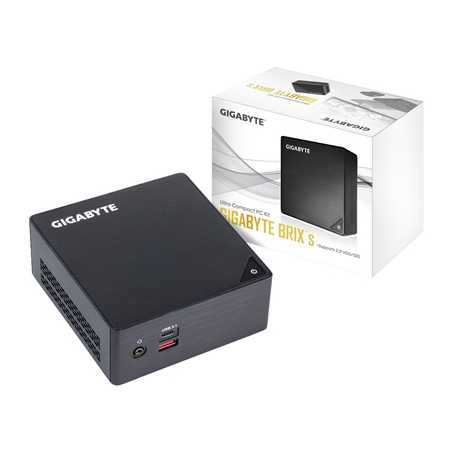

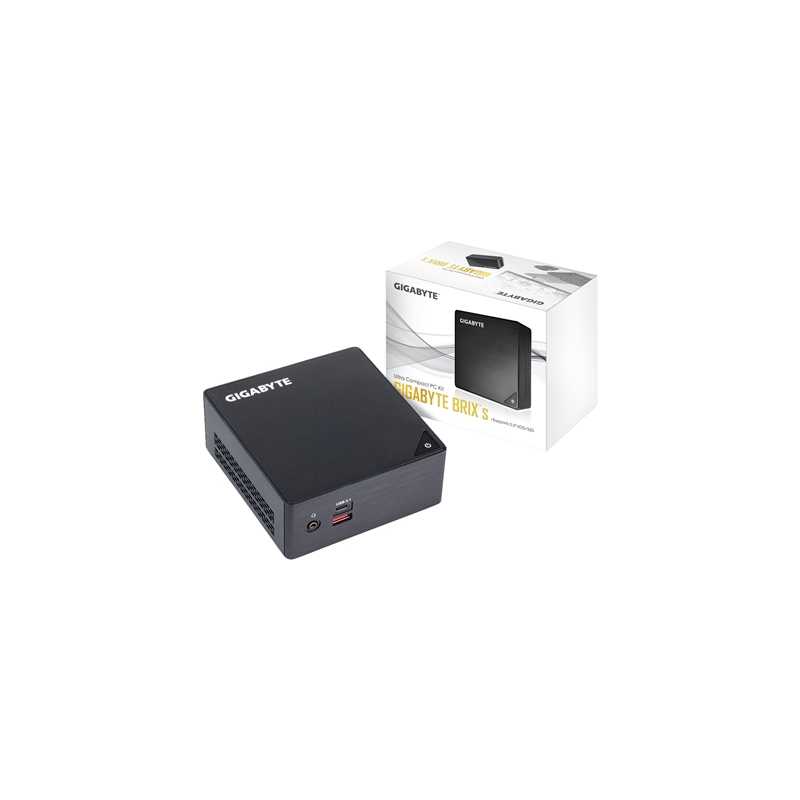

Gigabyte BRIX S Intel I5-7200U 2.5GHz Barebone Ultra Compact PC Kit (Requires HDD/SSD and RAM)

- Features Latest Intel 7th generation Core Processors
- Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
- Supports 2.5 HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x M.2 SSD (2280) slot
- 2 x SO-DIMM DDR4 slot (2133 MHz)
- Intel IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
- Intel HD Graphics 620
- 2 x USB3.1 (1* USB Type-C)
- 2 x USB 3.0
- HDMI 2.0
- HDMI plus Mini DisplayPort Outputs (Supports dual displays)
- Intel Gigabit lan
- Headphone/Microphone Jack
- VESA mounting Bracket (75 x 75mm + 100 x 100mm)

Dimension
46.8 x 112.6 x 119.4 mm

Motherboard Size
105 x 110 mm

CPU
Intel Core i5-7200U
2.5GHz / 3.1GHz

Memory
2 x SO-DIMM DDR4 slots
2133MHz
Max. 32GB

LAN
Gigabit LAN (Intel i219LM)

Wifi Card
Intel Dual Band Wireless-AC 3168

Graphics
Intel HD Graphics 620

Audio
Realtek ALC255

Maximum Resolution
HDMI Resolution (Max.) 4096 x 2160 @ 60Hz (HDMI 2.0 and HDCP 2.2 )
Mini DP Resolution (Max.) 3840 x 2160 @ 60Hz

Expansion Slots
1 x M.2 slot (2280_storage) PCIe /SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O
1 x USB 3.1 type C
1 x USB3.1
1 x head phone jack with MIC

Rear I/O
1 x HDMI (2.0)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot

Storage Support
2.5 HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
USB3.1: Asmedia

Power Supply
Input: AC 100-240V
Output: DC 19V
3.42A

VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm

Support OS
WIN10 64bit

Environment
System Environment Operating Temperature: 0C to +35C
System Storage Temperature: -20C to +60C
