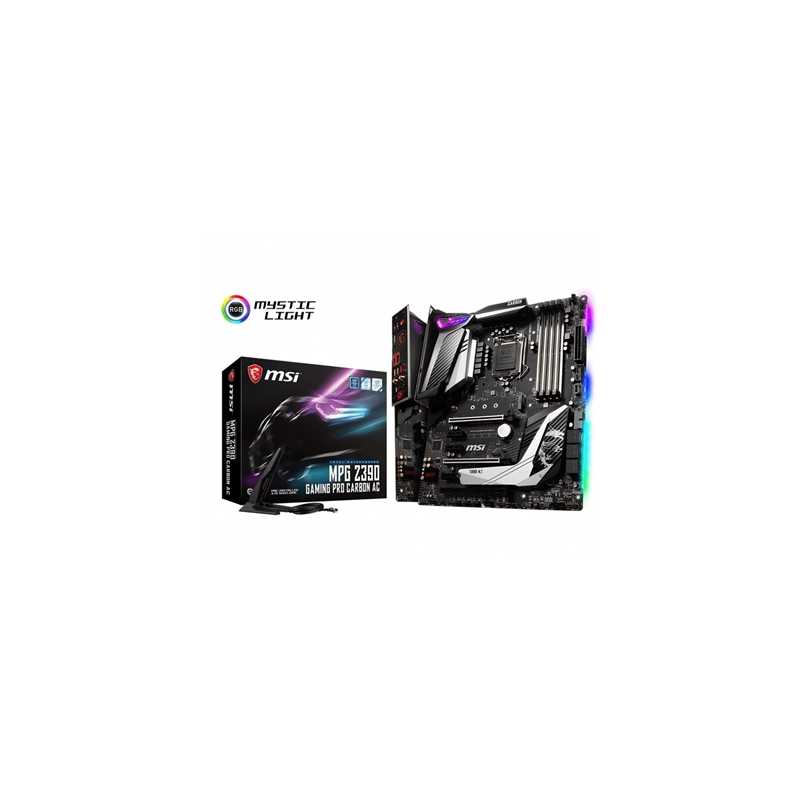

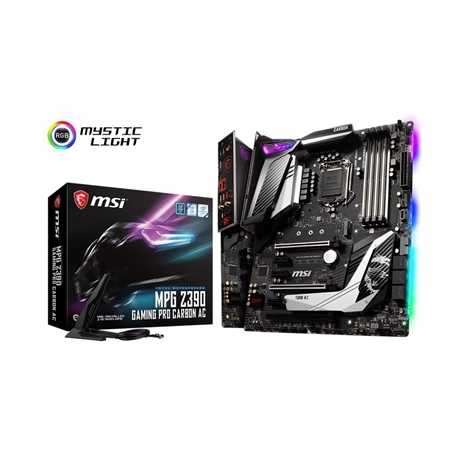

MSI MPG Z390 GAMING PRO CARBON AC Intel Socket 1151 DDR4 HDMI/DisplayPort ATX USB C 3.2 WiFi RGB M.2 Motherboard

Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel 1.73G Wi-Fi, Front USB 3.1 Gen2 connector
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications

Processor
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket

Chipset
Intel Z390 Chipset

Memory
4 x DDR4 memory slots, support up to 128GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Slots
3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
3 x PCIe 3.0 x1 slots

Onboard Graphics
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

Multi-GPU
Supports 2-Way NVIDIA SLI Technology
Supports 3-Way AMD CrossFire Technology

Storage
6 x SATA 6Gb/s ports
2 x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel Optane Memory Ready
M.2 slots and SATA ports share the bandwidth.Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB
5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1 x Intel I219-V Gigabit LAN controller

WiFi and Bluetooth
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5

Internal Connectors
1 x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.1 Gen2 Type-C port
2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump connector
5x 4-pin system fan connectors
1x Serial port connector
1x Front panel audio connector
2x System panel connectors
1x Thunderbolt Add-on Card Connector
1x Chassis Intrusion connector
1x TPM module connector
2x 4-pin RGB LED connectors
1x 3-pin RAINBOW LED connector
1x 3-pin CORSAIR LED connector

Back Panel Ports
PS/2 Combo Port
LAN
HD Audio Connectors
USB 2.0
DisplayPort
HDMI
USB 3.1 Gen2 Type-A + C
USB 3.1 Gen2 Type-A
Wireless / Bluetooth
Optical S/PDIF out

Dimensions
9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor

Mounting
9 mounting holes

Operating System
Support for Windows 10 64-bit
