- Out of stock

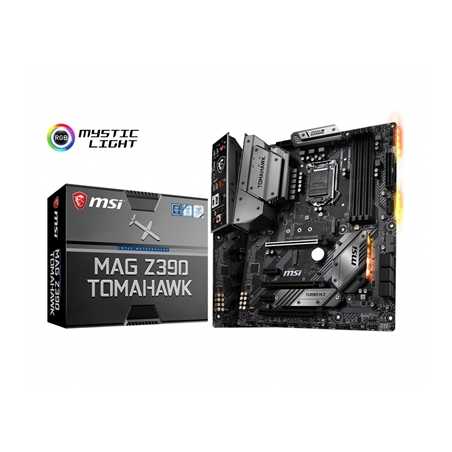

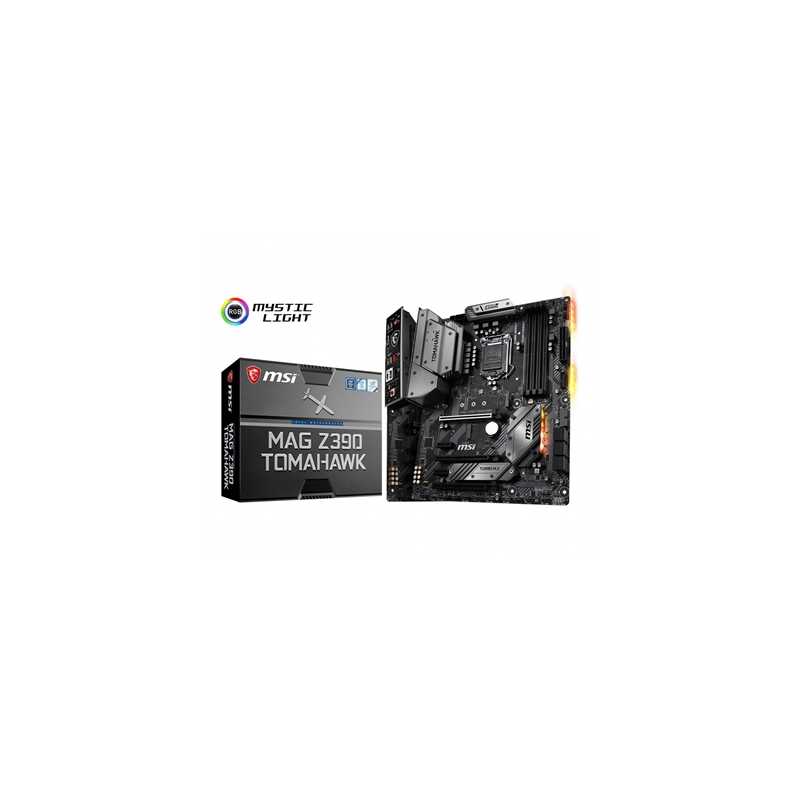

MSI MAG Z390 TOMAHAWK Intel Socket 1151 DDR4 HDMI/DisplayPort ATX USB C 3.2 RGB M.2 Motherboard
£178.04
VAT included
Military style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ensures even high-end processors to run in full speed.
Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2
Set Core Power Free: Core Boost, 8+4 pin CPU power connector, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Inspired by the military concept, MAG Z390 TOMAHAWK is equipped with a holistic integrated I/O cover, pre-installed IO shielding and extended heatsink design for better protection and the best thermal solution. MAG Z390 TOMAHAWK perfectly demonstrates stronger, tougher and heavier sense with durability for gamers to dominate the game.
Specifications
Processor
Supports Intel Core 9000 Series family/ 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset
Intel Z390 Chipset
Memory
4 x DDR4 memory slots, support up to 128GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Slots
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
2 x PCIe 3.0 x1 slots
1 x M.2 slot (Key E) for an Intel CNVi wireless module only
Onboard Graphics
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
Storage
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Audio
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1 x Intel I219-V Gigabit LAN controller
1 x Intel I211-AT Gigabit LAN controller
Internal Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
Back Panel Ports
PS/2 Combo Port
LAN Port
HD Audio Connectors
USB 2.0 Port
DisplayPort
HDMI Port
USB 3.1 Gen2 Type A
USB 3.1 Gen2 Type A+C
Optical S/PDIF OUT
Dimensions
9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor
Mounting
9 mounting holes
Operating System
Support for Windows 10 64-bit
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ensures even high-end processors to run in full speed.
Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2
Set Core Power Free: Core Boost, 8+4 pin CPU power connector, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Inspired by the military concept, MAG Z390 TOMAHAWK is equipped with a holistic integrated I/O cover, pre-installed IO shielding and extended heatsink design for better protection and the best thermal solution. MAG Z390 TOMAHAWK perfectly demonstrates stronger, tougher and heavier sense with durability for gamers to dominate the game.
Specifications
Processor
Supports Intel Core 9000 Series family/ 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset
Intel Z390 Chipset
Memory
4 x DDR4 memory slots, support up to 128GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Slots
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
2 x PCIe 3.0 x1 slots
1 x M.2 slot (Key E) for an Intel CNVi wireless module only
Onboard Graphics
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
Storage
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Audio
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1 x Intel I219-V Gigabit LAN controller
1 x Intel I211-AT Gigabit LAN controller
Internal Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
Back Panel Ports
PS/2 Combo Port
LAN Port
HD Audio Connectors
USB 2.0 Port
DisplayPort
HDMI Port
USB 3.1 Gen2 Type A
USB 3.1 Gen2 Type A+C
Optical S/PDIF OUT
Dimensions
9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor
Mounting
9 mounting holes
Operating System
Support for Windows 10 64-bit
