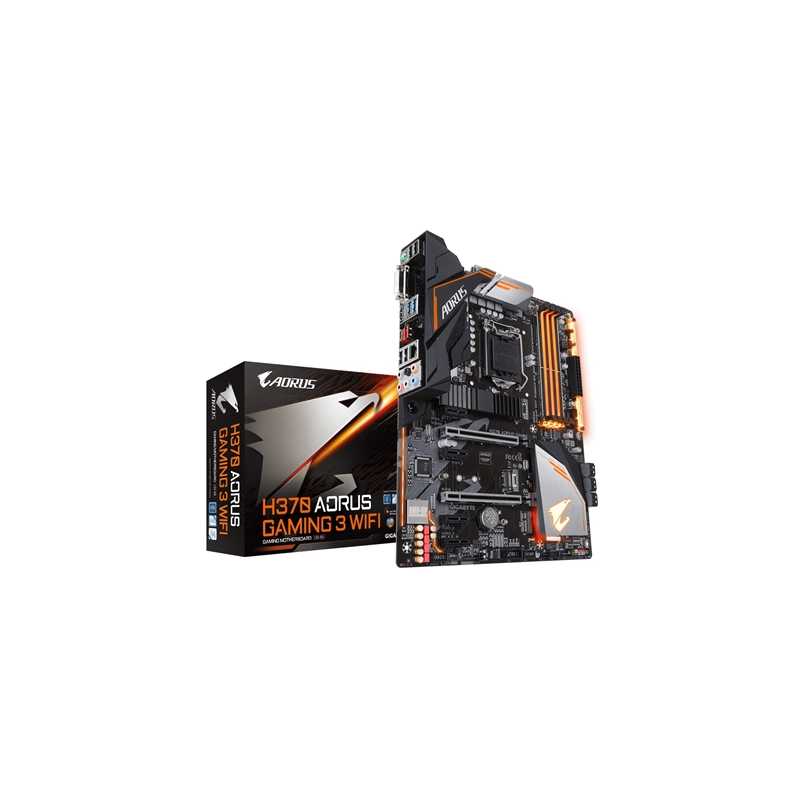

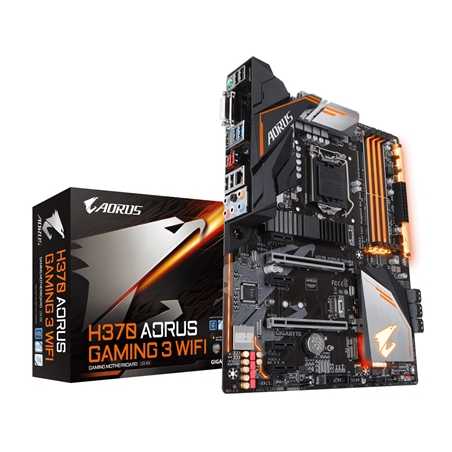

Gigabyte H370 AORUS Gaming 3 WIFI RGB Intel Socket 1151 ATX DVI/HDMI USB C 3.1 Motherboard

Intel H370 AORUS motherboard with 8+2 Hybrid Digital PWM, Intel CNVi WIFI ready, ALC1220-VB, USB 3.1 Gen2 Type-C & Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, RGB Fusion with Digital LEDs, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable Technology, WIMA Audio Caps, CEC 2019

Supports 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4
New Hybrid Digital PWM Design
Intel CNVi 802.11ac Wave2 2T2R WIFI
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Immersive Gaming ViBes with ALC1220-VB and WIMA audio capacitors
Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface
RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
Intel Native USB 3.1 Gen2 with USB Type-C and Type-A
Intel USB 3.1 Gen1 USB Type-C
Intel GbE LAN with cFosSpeed Internet Accelerator Software
CEC 2019 Ready, Save the Power as Easy as One Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Swappable Overlay for Accent LED
Intel Optane Memory Ready

8+2 Hybrid Digital Power Design
Optimized for 6-Core Intel Core CPUs
Intersil Digital PWM + Lower RDS(on) MOSFETs
AORUS series motherboards use a 8+2 phase PWM+ Lower RDS(on) MOSFETs design to support the latest 6-core Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Immersive VR Gaming Experience
To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action.

Smashes the GbE Barrier!
Integrated Intel 802.11ac Wave2 CNVi WIFI
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation.

Dual NVMe M.2 with One Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

Dual-Mode M.2 Slot Design
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design, users can build a RAID storage system with two NVMe M.2 SSDs or a SATA Mode M.2 SSD + a general SATA SSD. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

ALC1220-VB Immersive Gaming ViBes
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp, it automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

ALC1220-VB 120dB SNR Rear HD Audio with Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamicspreventing issues such as low volume and distortion.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headersgiving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

RGB Fusion with Digital LEDs Support
With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Surround Lighting
Multi-light zones are equipped with high brightness RGB LEDs, namely the Memory, PCH, Audio and Swappable Overlay for Accent LED. When it's all set and done, your system will shine like never before.

Swappable Overlay for Accent LED
AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications

CPU
Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU

Chipset
Intel H370 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.

BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB

Audio
Realtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel GbE LAN chip (10/100/1000 Mbit)

Wireless
GC-CI22M_A CNVi wireless module
Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
4 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel CNVi or a PCIe wireless module (CNVI)
* H370 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.
* The CNVi connector shares bandwidth with the rear USB 2.0/1.1 port below the RJ-45 port. When a WIFI module is populated in the CNVi connector, the USB 2.1/1.1 port becomes unavailable.

Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x S/PDIF Out header
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Rear I/O Connectors
1 x PS/2 keyboard/mouse port
4 x USB 2.0/1.1 ports
1 x DVI-D port
1 x HDMI port
1 x USB Type-C port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
2 x USB 3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks

USB
1 x USB Type-C port with USB 3.1 Gen 1 support, available through the internal USB header
1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Software and UEFI
Norton Internet Security (OEM version)
cFosSpeed

Hardware Monitor
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control

I/O Controller
iTE I/O Controller Chip

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

OS
Support for Windows 10 64-bit
