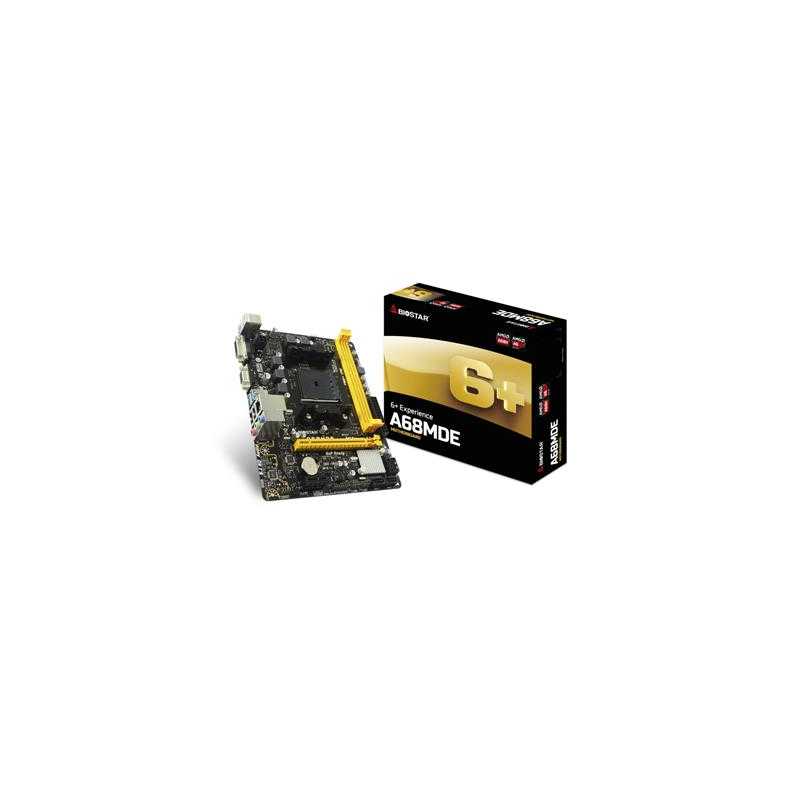

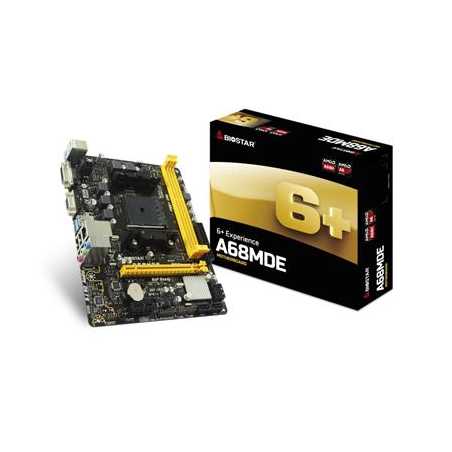

Biostar A68MDE AMD Socket FM2+ Micro ATX DDR3 D-SUB/DVI-D USB 3.1 Motherboard

- Support Socket FM2+/FM2 processors AMD A-series/ E2-series processor
- Support AMD Mutil Core(x4,x2)
- AMD A68H Chipset
- Support 2-DIMM DDR3-2600(OC)/ 2400(OC) up to 32G maximum capacity
- Support USB 3.1 Gen1
- Support DVI display port
- Support GbE LAN
- AMD Dual Graphics Technology

Specifications

Chipset
AMD A68H

CPU Support
AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt

Memory
Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

Integrated Video
By CPU model
AMD Dual Graphics Technology
Supports DX12
Supports HDCP

Storage
4 x SATA3 Connector
Support SATA RAID: 0,1,10

LAN
Realtek RTL8111G - 10/100/1000 Controller

Codec
Realtek ALC662 6-Channel HD Audio

USB
2 x USB 3.1 Port
2 x USB 2.0 Port
2 x USB 2.0 Header

Expansion Slot
1 x PCI-E 3.0 x16 Slot(supported by FM2+ CPU)
1 x PCI-E 2.0 x1 Slot

Rear I/O
1 x PS/2 Keyboard/Mouse
2 x USB 3.1 Port
1 x DVI-D Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks

Internal I/O
2 x USB 2.0 HeaderSupport 4 devices
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector

Hardware Monitoring
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

Dimensions
Micro ATX Form Factor Dimension: 215 x 170mm ( W x L )

OS Support
Support Windows XP / 7 / 8 / 8.1 / 10

Bundled Software
BullGuard
