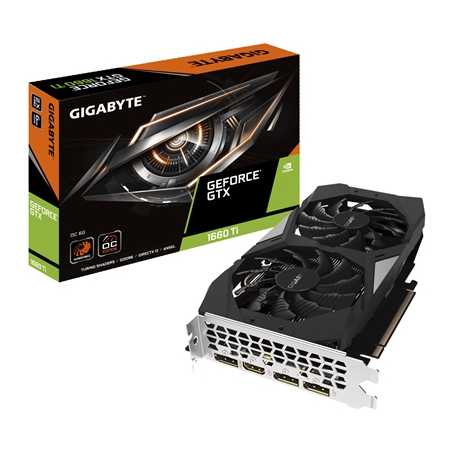

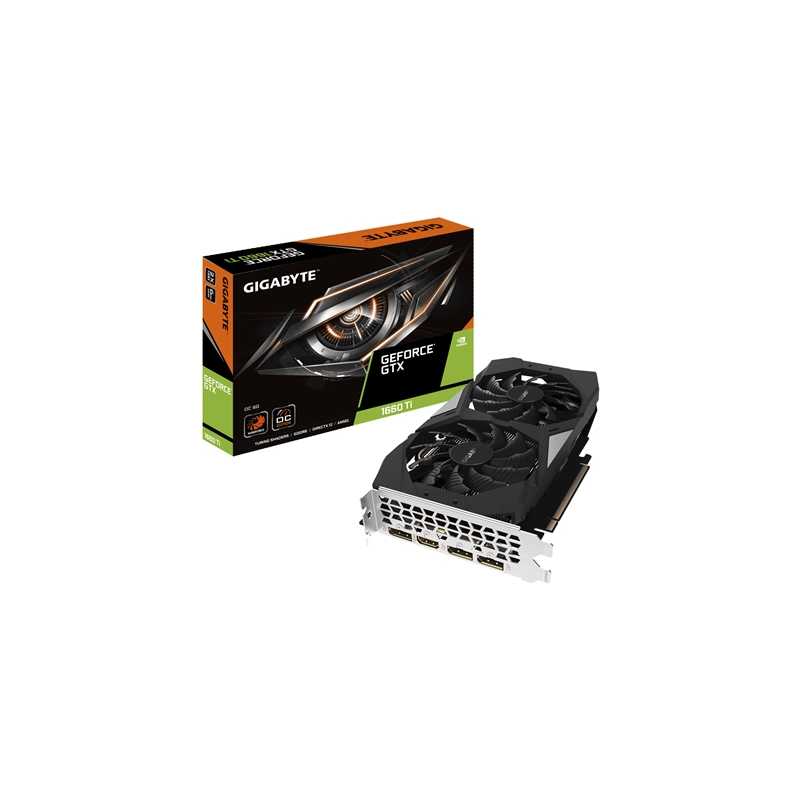

Gigabyte Nvidia GeForce GTX 1660 Ti OC 6GB Dual Fan Graphics Card

Powered by GeForce GTX 1660 Ti
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
90mm unique blade fans
Protection back plate

Core Clock
1800 MHz (Reference card is 1770 MHz)

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 1 composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPE DIRECT TOUCH GPU
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Specifications

Graphics Processing
GeForce GTX 1660 Ti

Core Clock
1800 MHz (Reference card is 1770 MHz)

CUDA Cores
TBD

Memory Clock
12000 MHz

Memory Size
6GB

Memory Type
GDDR6

Memory Bus
192 bit

Memory Bandwidth
TBD

Card Bus
PCI-E 3.0 x16

Digital Max Resolution
7680x4320 @ 60Hz

Multi-View
4

Card Size
L=225.65 W=122.02 H=40.5mm

PCB Form
ATX

DirectX
12

OpenGL
4.5

Recommended PSU
450W

Power Connectors
8 Pin

Output
DisplayPort 1.4 x 3 (Max Resolution: 4096 x 2160 @ 60 Hz)
HDMI 2.0b x 1 (Max Resolution: 7680 x 4320 @ 60 Hz)

SLI Support
No

Accessories
Quick Guide
Driver CD
